Description

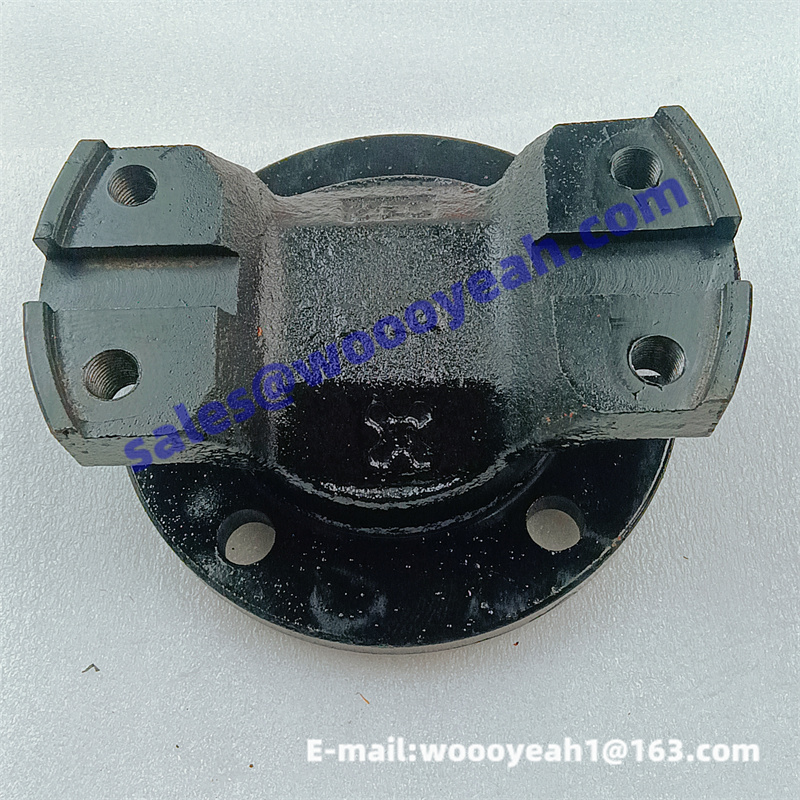

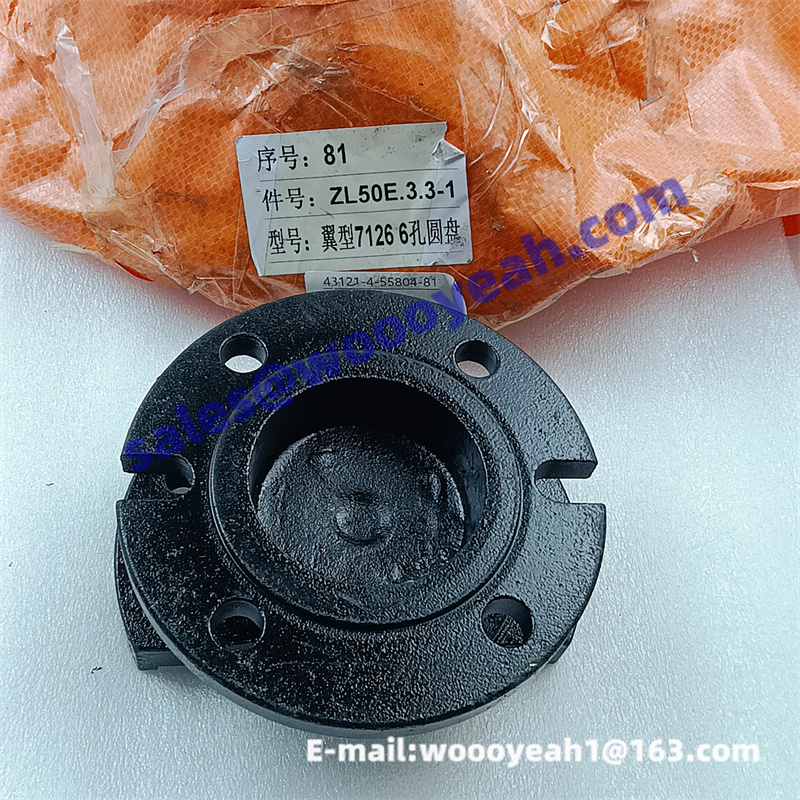

ZL50E.3.3-1 803164216 5002186 propeller flange for XCMG ZL50G

B0460-4110002520 变矩器(370833) Torque converter 4110002520
4110002520001 导轮座YJSW315-6-00013DX Seat
4110002520002 密封环YJSW315-2A-00002 SEALING RING
4110002520003 壳体YJSW315-6-00001 HOUSING CAP
008617753913626 XCMG woooyeah1@163.com
4011000754 螺栓GB5783-M8*20EpZn-10.9 Bolt
28100003661 垫圈8（GB93） Washer 008617753913626
4110002520004 盖板YJSW315-6-00007 Cover plate
4110002520005 密封垫YJSW315-6-00006 SEALING WASHER
4110002520006 齿轮YJSW315-2A-00006 Gear
4021000076 滚动轴承GB276-6017 BALL BEARING GB276-6017
008617753913626 XCMG woooyeah1@163.com
4011001521 P-螺栓GB5781-M8*40EpZn-4.8 Screw
4110002520007 泵轮YJSW315-2-00002 Impeller
4013000354 螺母GB41-M8 NUT 008617753913626
4110002520008 压板YJSW315-6-00026 WASHER
4110002520009 导轮YJSW315-2-04000L stator
4110002520010 导轮压板YJSW315-6-00027 Washer
4014000180 螺钉GB70.1-M8*30EpZn-10.9 SCREW
4110002520011 涡轮组件YJSW315-6-03000 TURBINE
008617753913626 XCMG woooyeah1@163.com
4021000018 滚动轴承GB276-6210 BALL BEARING GB276-6210
4110002520012 罩轮YJSW315-2A-20000 COVER
4110002520013 盖板YJSW315-2A-00004 Cover plate
4110002520014 中节YJSW315-2A-00001 FLANGE
4015000026 垫圈GB93-12-65Mn Washer GB93-12-65Mn
008617753913626 XCMG woooyeah1@163.com
4011001522 P-螺栓GB5781-M12*45EpZn-4.8 Screw
4110002520015 连接轴YJSW315-2A-00003A ATTACHING LINK
4110002520016 调整垫YJSW315-6-00005 SHIM
4110002520017 弹性板总成YJSW315-6-02000 Plate assembly
4110002520018 弹性板YJSW315-6-02001 Plate
4110002520019 压板YJSW315-6-00004 SHIM
4011000747 螺栓GB5783-M12*30EpZn-10.9 Bolt GB5783-M12*30EpZn-10.9
008617753913626 XCMG woooyeah1@163.com
4110002520020 油温表接头YJSW315-6-00014L NIPPLE
4110002520021 接头YJSW315-6-00015L JOINT
4110002520022 螺塞YJSW315-6-00017L PLUG
4015000488 P-垫圈JB982-30 Washer
4110002520023 阀芯YJSW315-6-00022 valve rod
4110002520024 调压垫YJSW315-6-00018 SHIM
4110002520025 弹簧YJSW315-6-00019 Spring
4110002520026 阀座YJSW315-6-00020 Valve seat
4110002520027 弹簧YJSW315-6-00021 Spring
4110002520028 压板YJSW315-6-00023 ANCHOR PLATE
008617753913626 XCMG woooyeah1@163.com
4011001523 P-螺栓GB5781-M8*16EpZn-4.8 Screw
4011000993 螺栓GB5783-M10*25EpZn-10.9 Bolt
4015000025 垫圈GB93-10-65Mn Washer GB93-10-65Mn
B0440-4110002520 变矩器(610101) Torque converter 4110002520
4110000160083 液力变矩器YJHSW315-2A 1-0 TORQUE CONVERTER
008617753913626 XCMG woooyeah1@163.com
4110000160085 壳体YB-45/0-04 Housing
4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt GB5783-M10*20EpZn-8.8
4015000025 垫圈GB93-10-65Mn Washer GB93-10-65Mn
008617753913626 XCMG woooyeah1@163.com
4110000160102 导轮座0-01 SEAT 008617753913626
4110002520101 金属密封环JB/T8547-YHX125 SEALING RING
4015000242 P挡圈GB893.1-125-65Mn RETAINING RING
4021000013 滚动轴承GB276-6016 BALL BEARING GB276-6016
008617753913626 XCMG woooyeah1@163.com
4110000160088 回油接口YB-45/0-01 Nipple
4110000160089 阀盖YB-1/0-03 Cover
4110000160090 弹簧ⅠYB-1/0-04 Spring
4110000160091 调整垫片YB-1/0-05 Shim
4110000160092 阀芯YB-1/0-06 Valve rod
4110000160093 盖板YB-1/0-07 Plate
4110000160094 弹簧ⅡYB-1/0-08 Spring
4011001523 P-螺栓GB5781-M8*16EpZn-4.8 Screw
008617753913626 XCMG woooyeah1@163.com
4015000036 垫圈GB93-8-65Mn Washer GB93-8-65Mn
4110000160095 管接头YB-1/0-015 Nipple
4015000488 P-垫圈JB982-30 Washer
4110000160097 螺塞YB-45/0-03 Plug
4110000160098 转换接头YB-45/0-02 Nipple
4110000160099 衬垫YB-1/0-012 Gasket
4110000160104 观察盖YB-1/0-014 Cover
4011000606 P-螺栓GB5782-M12*40EpZn-10.9 SCREW GB5782-M12*40EpZn-10.9
4110000160105 过渡套0-02 Sleeve 008617753913626
4110002520102 弹性板总成YB315-Z5.2 Plate assembly
4110002520103 弹性板YB315-Z5-01 Plate
4110002520104 护板YB-32/0-03 protecting plate
008617753913626 XCMG woooyeah1@163.com
4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt GB5783-M12*25EpZn-8.8
4015000026 垫圈GB93-12-65Mn Washer GB93-12-65Mn
4110000160109 过渡轴0-03 Shaft 008617753913626
4110000160110 密封垫0-04 Gasket 008617753913626
4110002520105 O型圈GB1235-33*3.1 O-ring
4013000349 螺母GB41-M12EpZn-05 Nut 008617753913626
4011000261 螺栓GB5782-M12*65EpZn-8.8 BOLT GB5782-M12*65EpZn-8.8
B0410-4110002520 变矩器(370804) Torque converter 4110002520
008617753913626 XCMG woooyeah1@163.com 008617753913626
7200000798 螺母M801580-10806 NUT PYJ280-4D-033
4110000217076 垫圈01602-10825 8 WASHER
4110000194001 罩轮YJSW315-2A-00002 COVER
008617753913626 XCMG woooyeah1@163.com
4021000018 滚动轴承GB276-6210 BALL BEARING GB276-6210
4110000160072 涡轮组件1YJSW315-2A-10000 TURBINE
4110000518004 挡圈04064-08530 85 RETAINING RING
4110000160040 导轮1YJSW315-2A-00006 STATOR
4110002525001 螺栓01010-80835 M8*35 SCREW
4110000011094 压紧垫片YB315Z5-22A WASHER
4021000076 滚动轴承GB276-6017 BALL BEARING GB276-6017
008617753913626 XCMG woooyeah1@163.com
4110000160046 泵轮1YJSW315-2A-00007 IMPELLER
4110002525002 齿轮YB315Z5-11BL GEAR
4110002525003 螺栓01010-80816 M8*16 SCREW
4110000011088 垫板YB315Z5-06D SPACER
7200000846 铆钉3*6 04418-03060 RIVET
4110000160082 铭牌YJSW315-2A-BP DECAL
4110000011089 胶垫YB315Z5-07D GASKET
4110000011083 密封环YB315Z5-12A SEALING RING
4110000011082 密封环YB315Z5-33 SEALING RING
4110002525005 导轮座YB315Z5-13D SEAT
4110000004001 弹性垫圈01602-21030 RETAINING RING
008617753913626 XCMG woooyeah1@163.com
4011000663 螺栓GB21-M10*25EpZn-8.8 BOLT
4110000011100 阀盖YB315Z5-17A BRACKET
4110000011101 弹簧YB315Z5-18A SPRING
4110000011102 调压垫YB315Z5-16.21 WASHER
4110000011107 调压垫YB315Z5-28.29 WASHER
4110000011103 阀杆YB315Z5-26A VALVE ROD
4110000011105 压板YB315Z5-19A ANCHOR PLATE
4110000011106 弹簧YB315Z5-20 SPRING
4110002525006 壳体YB315Z5-08D-99 HOUSING
4110000011129 管接头YB315Z5-24K NIPPLE
008617753913626 XCMG woooyeah1@163.com
4015000209 YB315Z5-09组合密封垫圈30 SEALING WASHER JB982-30
4110000011098 管接头YB315Z5-14S NIPPLE
4110000011104 螺塞YB315Z5-15L① PLUG
4110000359052 接头1YB315Z5-10L NIPPLE
4110000011113 调整垫YB315Z5-34 WASHER
4110000011114 弹性板总成YJSW315-20000 PLATE
008617753913626 XCMG woooyeah1@163.com
4110000011115 弹性板YJSW315-20001 PLATE
4110000011116 圆垫板YB315Z5-04 SHIM
4110000160054 垫圈01602-21236 GASKET
4110000960004 螺栓01010-81230 SCREW
4110002525007 螺栓01010-81245 M12*45 SCREW
4110000194006 螺母M12-01580-11210 NUT
008617753913626 XCMG woooyeah1@163.com
4110002525008 螺栓01010-81270 M12*70 SCREW
4110000160056 中节1YJSW315-2A-00001 FLANGE
4110000194008 盖板YJSW315-2A-00004 COVER PLATE
4110000194009 垫YJSW315-2A-00005 SEALING RING
4110000160059 过渡轴1YJSW315-2A-20000 SHAFT
4110000011118 衬垫YB315Z5-05 GASKET
008617753913626 XCMG woooyeah1@163.com
4110000011096 调整垫YB315Z5-30/31/32 WASHER
