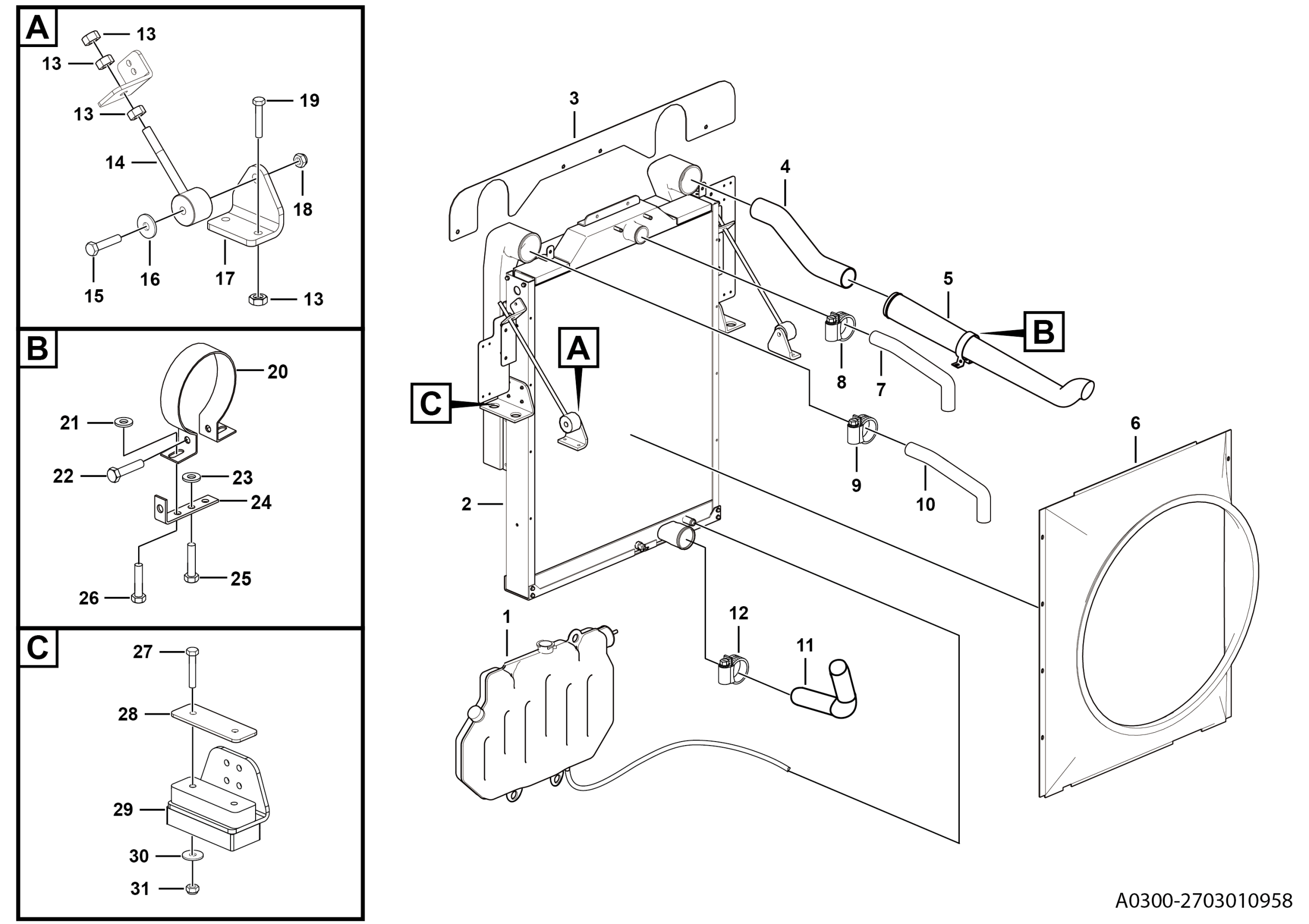

| No. |
Part Name |
Part Number |
Qty |
| 1 |
Cold air exit pipe |
27030105831 |
1 |
| 2 |
Engine intake water pipe |
27030105841 |
1 |
| 3 |
T-Clamp 78-86 |
4190002212 |
2 |
| 4 |
Nut GB6170-M12EpZn-8 |
4013000011 |
10 |
| 5 |
Radiator bar |
4110001451 |
2 |
| 6 |
Bolt GB5782-M14*70EpZn-8.8 |
4011010324 |
2 |
| 7 |
Plate |
27030109731 |
2 |
| 8 |
Support |
27030109692 |
2 |
| 9 |
Nut GB6185.1-M14EpZn-8 |
4013010121 |
2 |
| 10 |
Bolt GB5783-M10*45EpZn-8.8 |
4011000514 |
4 |
| 11 |
EXPANSION TANK |
27030109101 |
1 |
| 12 |
Support i |
27030105861 |
1 |
| 13 |
Washer GB97.1-8EpZn-300HV |
4015000072 |
6 |
| 14 |
Bolt GB5782-M8*55EpZn-8.8 |
4011000415 |
1 |
| 15 |
Washer GB97.1-10EpZn-300HV |
4015000162 |
1 |
| 16 |
Support ii |
27030105872 |
1 |
| 17 |
Bolt GB5783-M10*20EpZn-8.8 |
4011000081 |
1 |
| 18 |
Bolt GB5783-M8*25EpZn-8.8 |
4011000106 |
2 |
| 19 |
Bolt GB5783-M10*90EpZn-8.8 |
4011000956 |
4 |
| 20 |
Plate |
27030109021 |
2 |
| 21 |
Radiator shock absorber assy |
4110001445 |
2 |
| 22 |
Radiator assy |
4110001570 |
1 |
| 23 |
Washer GB96.1-10EpZn-300HV |
4015000197 |
8 |
| 24 |
Nut GB6171-M14*1.5EpZn-8 |
4013000119 |
4 |
| 25 |
Radiator shield plate assembly |
27030109681 |
1 |
| 26 |
Cold air intake pipe |
27030105821 |
1 |
| 27 |
Cold air intake pipe |
27030105791 |
1 |
| 28 |
Glass fiber Reinforced plastic wind guide cover |
4110001521 |
1 |
| 29 |
Engine exit water pipe |
27030105851 |
1 |
| 30 |
No longer used |
4019010101 |
2 |
| 31 |
No longer used |
4019010001 |
4 |
