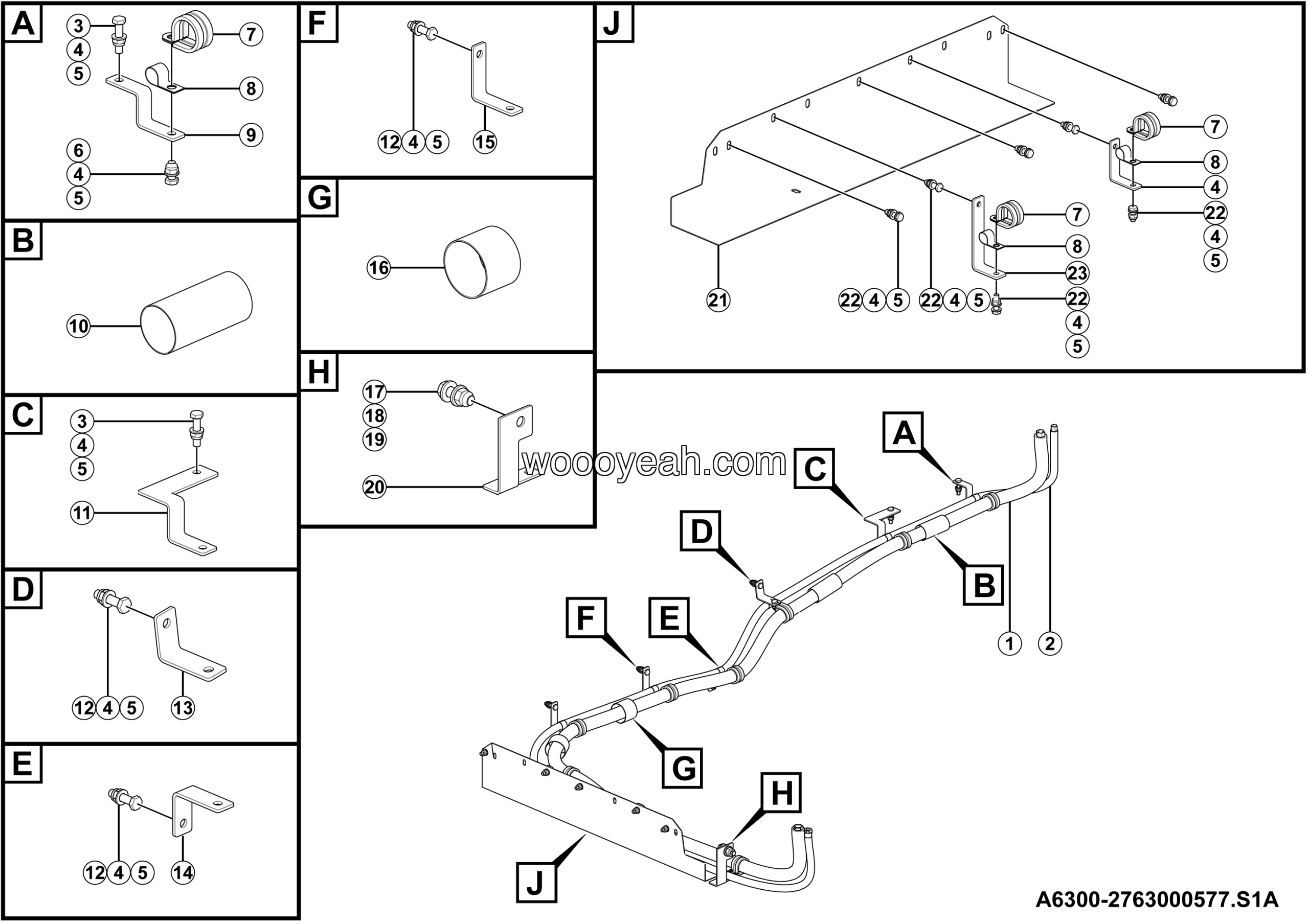

LGMG RTH100 2025 – Air conditioner lines installation – A6300-2763000577.S1A
Category: 2025 > RTH100 > R1000Y3A0A224
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Insulation cotton 100-400 | 4190708955 | 2 |
| 2 | Bracket 95*25*4 | 27630004891 | 1 |
| 3 | Bolt GB5783-M10*40flZnyc-8.8-480 | 4011010706 | 4 |
| 4 | Bracket 90*53*4 | 27630004901 | 1 |
| 5 | Bracket 73*50*4 | 27630004921 | 1 |
| 6 | Bracket 53*43*4 | 27630004911 | 2 |
| 7 | Canvas socketet 510*400-ZD | 4190708678 | 3 |
| 8 | Bolt GB5786-M16*1.5*50flZnyc-12.9-480 | 4011010555 | 1 |
| 9 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 1 |
| 10 | Washer GB1230-16flZnyc-45-480 | 4015010563 | 2 |
| 11 | Evaporator gas refrigerant return hose pskt105g-091 | 4190715154 | 1 |
| 12 | Bracket 126*100*35 | 27630005331 | 1 |
| 13 | Pllumbing guard 985*138*166 | 27630005351 | 1 |
| 14 | Bolt GB5783-M10*35flZnyc-8.8-480 | 4011010727 | 6 |
| 15 | Bracket 156*66*5 | 27630005341 | 1 |
| 16 | Bracket 80*71*4 | 27630004881 | 1 |
| 17 | Evaporator liquid refrigerant supply hose pskt105g-090 | 4190715153 | 1 |
| 18 | Bolt GB5783-M10*45flZnyc-8.8-480 | 4011011046 | 2 |
| 19 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 20 |
| 20 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 25 |
| 21 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 8 |
| 22 | Pipe clamp R-D40-M10 | 4190707973 | 9 |
| 23 | Pipe clamp R-D24-M10 | 4190707970 | 9 |
| 24 | Bracket 105*25*4 | 27630004861 | 1 |
