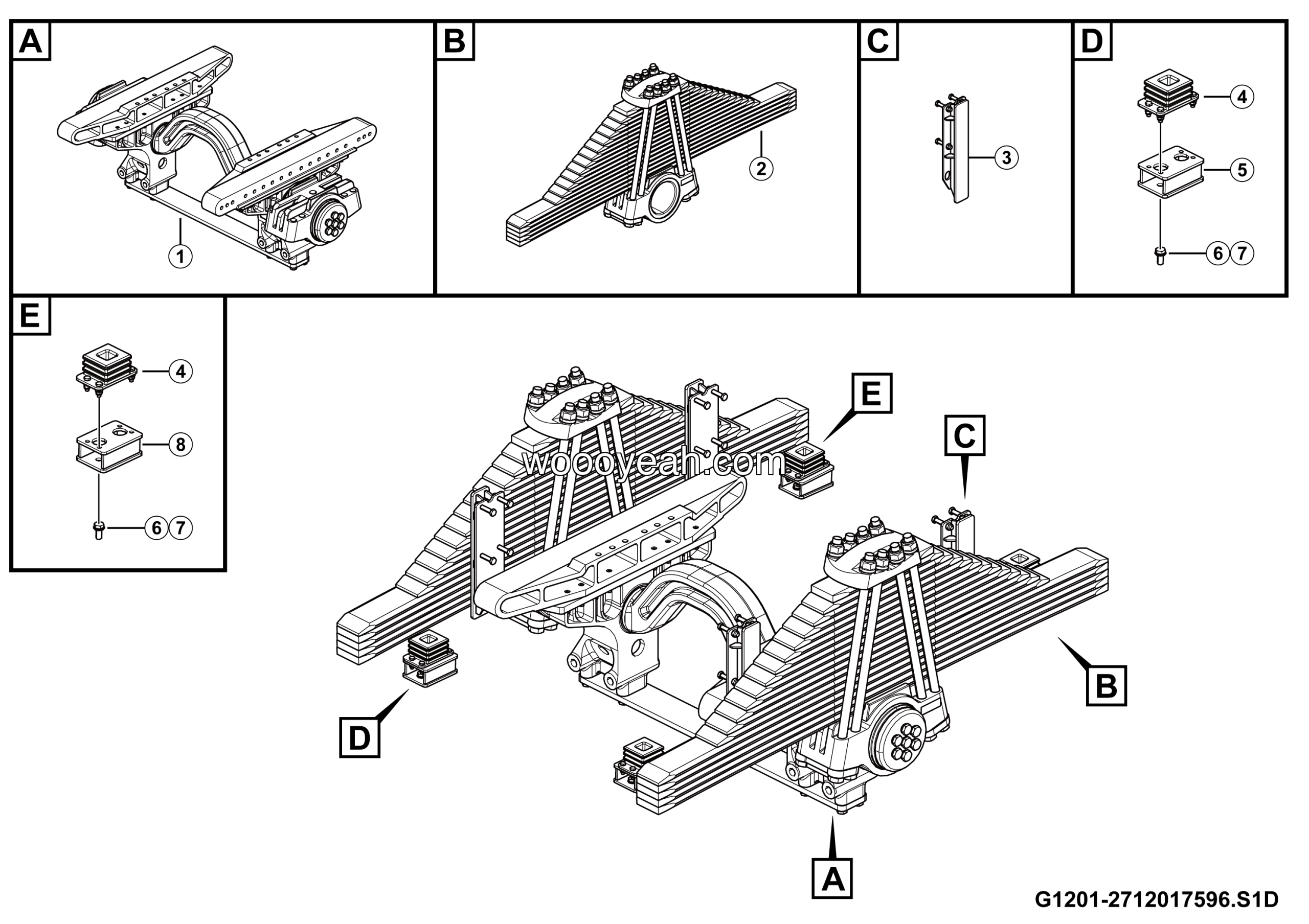

LGMG Off-Highway Dump Truck 2024 – Rr leaf spring installation – G1201-2712017596.S1D
Category: 2024 > Off-Highway Dump Truck > MT116H > M116HY3A0M023
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Balance shaft installation 145 | 27120181121 | 1 |
| 2 | Rr leaf spring installation | 27120176051 | 2 |
| 3 | Rr leaf spring side limit assy | 27120183951 | 4 |
| 4 | Seat | 27120177481 | 4 |
| 5 | Bearer of middle axle spacing block | 27120122951 | 2 |
| 6 | Bolt GB5786-M16*1.5*35flZnyc-12.9-480 | 4011010534 | 8 |
| 7 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 8 |
| 8 | Bearer of rear axle spacing block | 27120122961 | 2 |
