Description

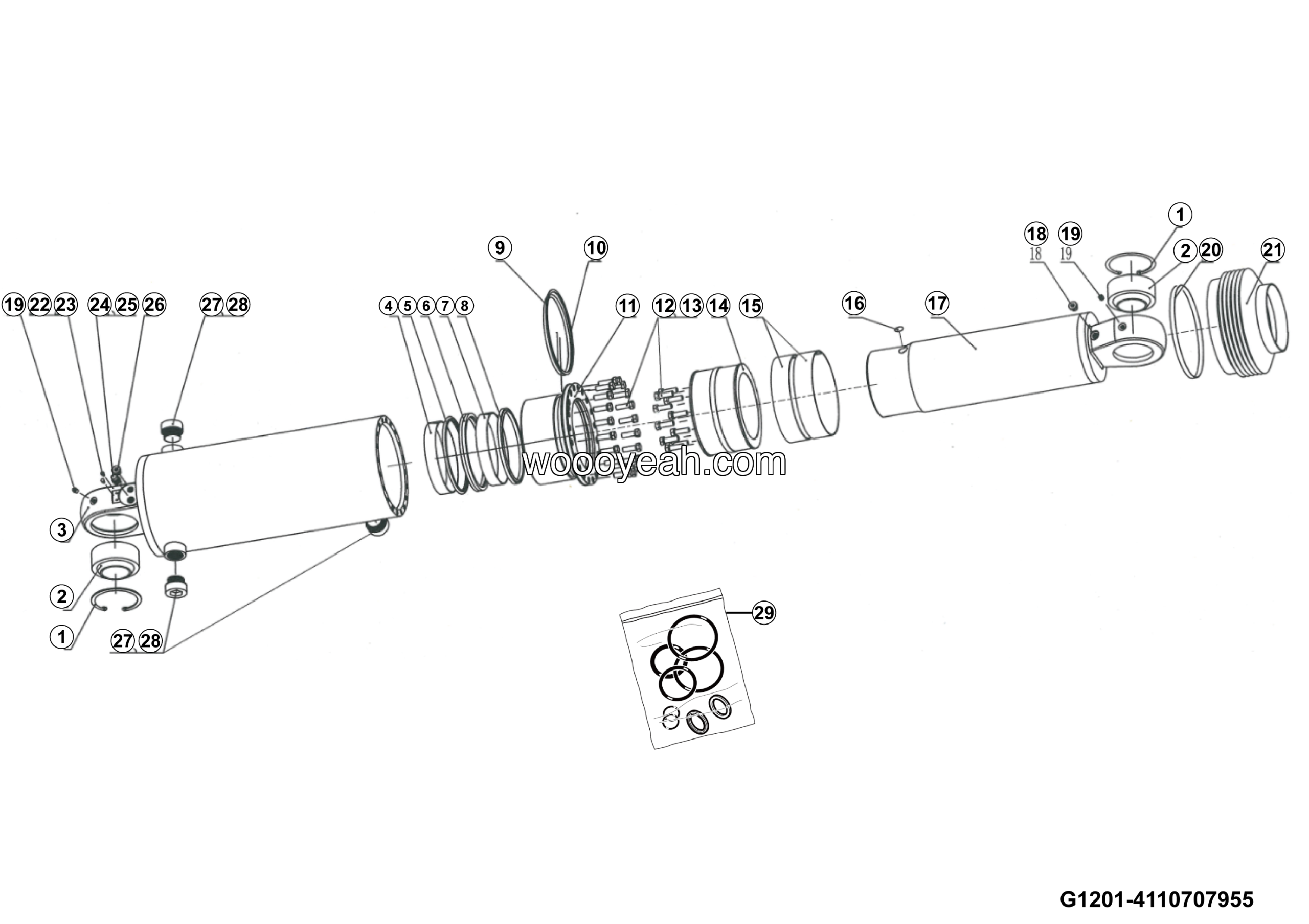

LGMG Off-Highway Dump Truck 2024 – Rr hydro-pneumatic spring assy 180/220-350 – G1201-4110707955
Category: 2024 > Off-Highway Dump Truck > RTH136 > R1000Y3A0A106
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Protection ring 1104040826 | 4110705001014 | 1 |
| 2 | Rr guide sleeve lgyq(mt120)-h-112 | 4110707955011 | 1 |
| 3 | Elastic pad 1108060013 | 4110705000004 | 30 |
| 4 | Bolt 1108010249 | 4110705000003 | 30 |
| 5 | Rr piston lgyq(mt120)-h-101 | 4110707955024 | 1 |
| 6 | Guide belt 1104041469 | 4110705001009 | 2 |
| 7 | Steel ball 1104040191 | 4110705001004 | 1 |
| 8 | Rear suspension piston rod 1104041484 | 4110705001001 | 1 |
| 9 | ED block 1104040957 | 4110705000002 | 1 |
| 10 | Oil cup 1104040461 | 4110705000014 | 2 |
| 11 | Retaining ring 1108110016 | 4110705000016 | 2 |
| 12 | Clamp 1104040835 | 4110705001020 | 1 |
| 13 | Dust ring 1104041467 | 4110705001017 | 1 |
| 14 | Washer m6 | 4110707954021 | 2 |
| 15 | Bolt m6*16 | 4110707954022 | 2 |
| 16 | Inflatable valve 1104040159 (QXF-32) | 4110705000001 | 1 |
| 17 | O-ring 1104040507 | 4110705000013 | 1 |
| 18 | Ed plug g1/4 | 4110707954025 | 1 |
| 19 | Plug 1108120004 | 4110705001006 | 3 |
| 20 | Gasket 1906000887 | 4110705001007 | 3 |
| 21 | Seal kit | 4110705001099 | 1 |
| 22 | Bearing 1104040169 | 4110705000017 | 2 |
| 23 | Rr suspension cylinder barrel wldmt lgyq(mt120)-h-11f | 4110707955003 | 1 |
| 24 | Guide belt 1104041464 | 4110705001010 | 1 |
| 25 | Stefan 1104040444 | 4110705001011 | 1 |
| 26 | U-ring 1104041466 | 4110705001012 | 1 |
| 27 | Guide belt 1104041465 | 4110705001015 | 1 |
| 28 | Dust ring 1104040450 | 4110705001016 | 1 |
| 29 | O-ring 1104040446 | 4110705001013 | 1 |
