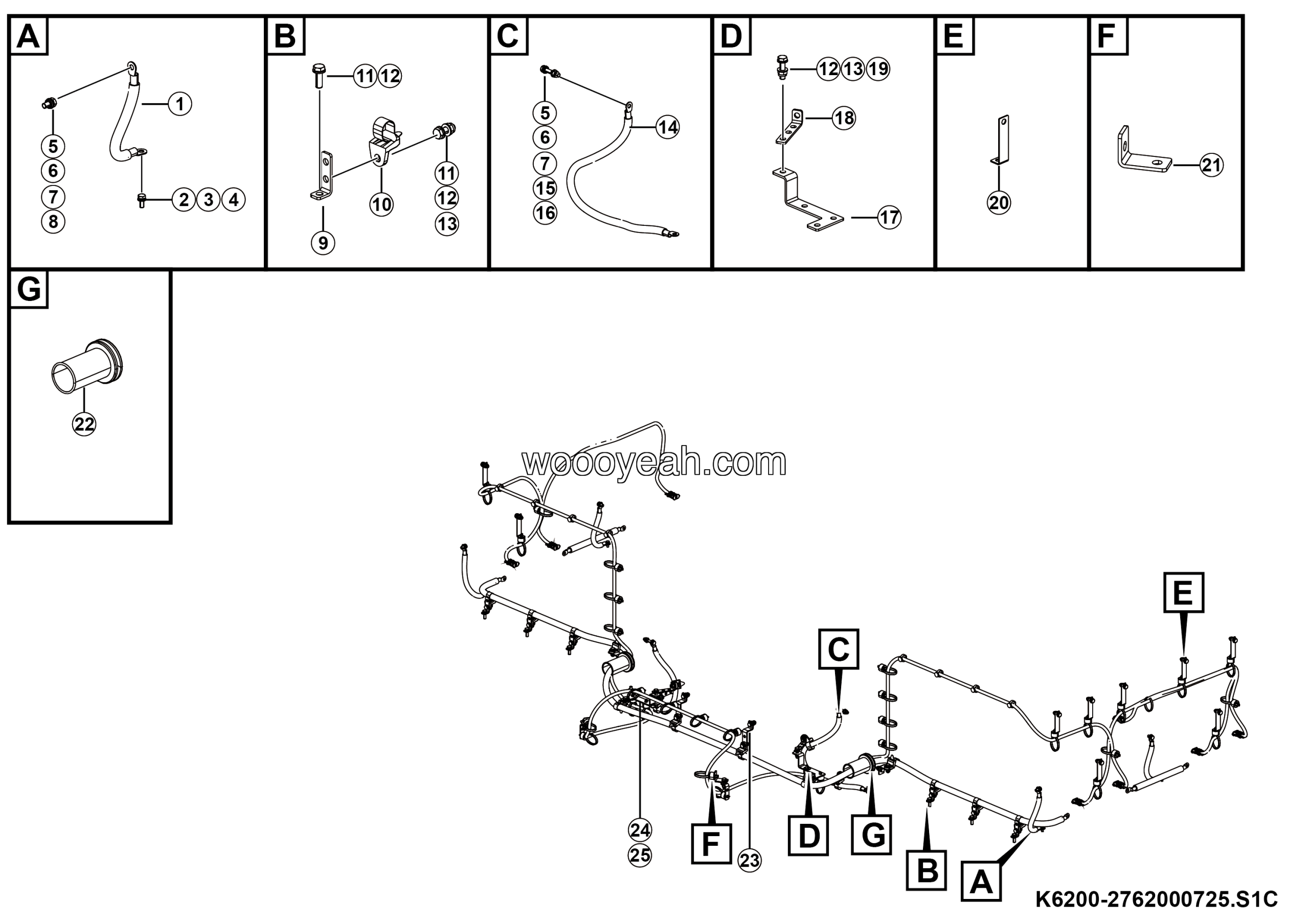

LGMG Off-Highway Dump Truck 2024 – Harness assy between battery boxes – K6200-2762000725.S1C
Category: 2024 > Off-Highway Dump Truck > MTE106H > C106HE0A0A903
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Cable tie HS-J117 | 4130704969 | 16 |
| 2 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 29 |
| 3 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 61 |
| 4 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 24 |
| 5 | Ground wire p50-10*10*800-1.8 | 27620007401 | 2 |
| 6 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 2 |
| 7 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 8 | Z-bracket 170*75*58 | 27620007361 | 1 |
| 9 | Bracket | 27620002681 | 4 |
| 10 | Bolt GB5783-M10*40flZnyc-8.8-480 | 4011010706 | 4 |
| 11 | Ground wire bzw-50*350 | 27620001552 | 4 |
| 12 | Bracket wldmt | 27620008731 | 9 |
| 13 | Support | 27620002241 | 4 |
| 14 | Sleeve 122*56*86 | 27620007931 | 2 |
| 15 | Z-bracket 110*40*25 | 27620004761 | 2 |
| 16 | Bracket 170*75*58 | 27620007351 | 1 |
| 17 | Bolt GB5783-M10*20flZnyc-8.8-480 | 4011010748 | 2 |
| 18 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 4 |
| 19 | Double sack wedge lock washer HF8 | 4190708408 | 4 |
| 20 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 21 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 6 |
| 22 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 23 | Double sack wedge lock washer HF10 | 4190708409 | 8 |
| 24 | Washer GB862.2-10-65Mn | 4015010586 | 8 |
| 25 | L-bracket 70*30*20 | 27620004771 | 2 |
