Description

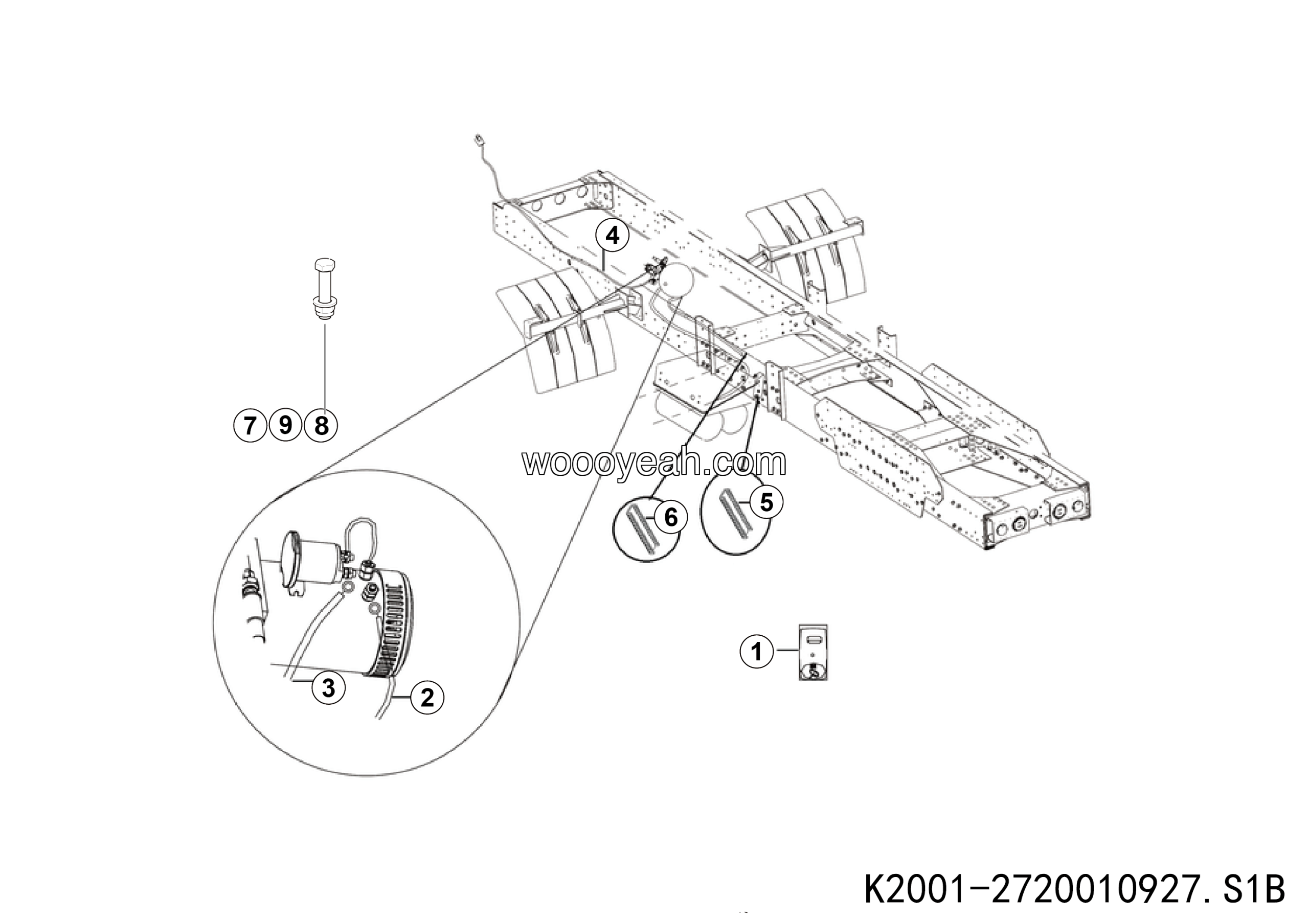

LGMG Off-Highway Dump Truck 2024 – Emergency steering electrical system – K2001-2720010927.S1B
Category: 2024 > Off-Highway Dump Truck > MT86H > M086HWG54
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Emergency steering rocker switch JK939C | 4130701384 | 1 |
| 2 | BEAM ASSEMBLY | 27200109291 | 1 |
| 3 | Superstructure connect plate | 27200109282 | 1 |
| 4 | ELECTRICITY MODULE OF COVER | 27200108381 | 1 |
| 5 | Cable protector | 27140108701 | 1 |
| 6 | Threading sheath | 4120000222 | 1 |
| 7 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 1 |
| 8 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 9 | Washer GB862.2-10-65Mn | 4015010586 | 1 |
