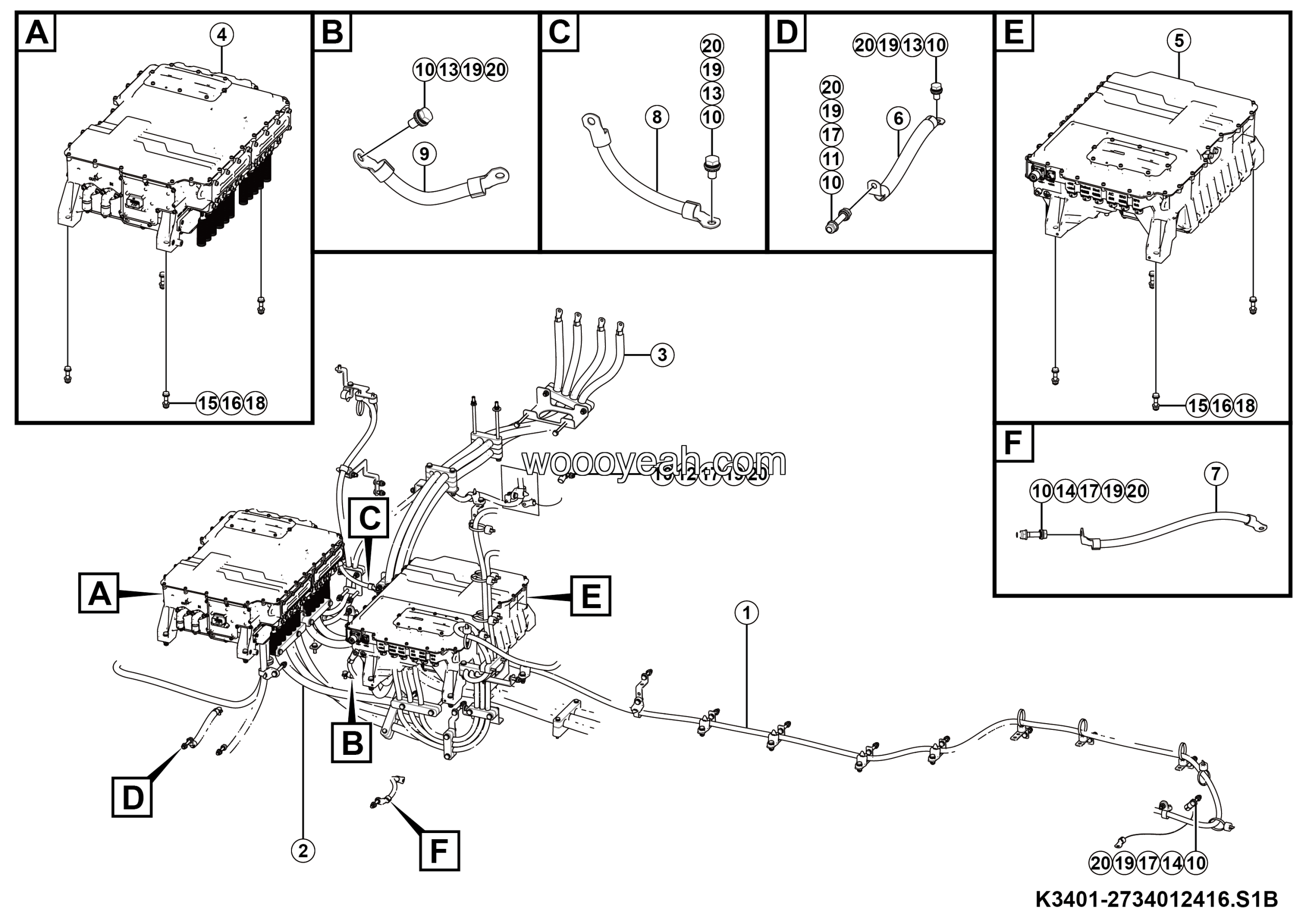

LGMG Off-Highway Dump Truck 2024 – Elec drive elec sys – K3401-2734012416.S1B
Category: 2024 > Off-Highway Dump Truck > MTE106H > C106HE0A0A903
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Double sack wedge lock washer HF10 | 4190708409 | 7 |
| 2 | Bolt GB5783-M10*60EpZn-8.8 | 4011010653 | 1 |
| 3 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
| 4 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 3 |
| 5 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 2 |
| 6 | Bolt GB5782-M10*45flZnyc-8.8-480 | 4011011053 | 8 |
| 7 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 8 |
| 8 | Nut GB6185.1-M10EpZn-10 | 4013010133 | 4 |
| 9 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 16 |
| 10 | Washer GB97.1-10EpZn-300HV | 4015000162 | 11 |
| 11 | Elec sys for low power components | 27340127171 | 1 |
| 12 | Washer GB862.2-10-65Mn | 4015010586 | 7 |
| 13 | Motor elec sys | 27340117541 | 1 |
| 14 | Motor controller power supply system | 27340120391 | 1 |
| 15 | Main five in one ICMD10-561250BS-LGZJ-C | 4130705894 | 1 |
| 16 | Auxiliary five in one ICMD10-561250BS-LGZJ-D | 4130705895 | 1 |
| 17 | Ground wire p70-10*10*280-1.8(z) | 27340117791 | 1 |
| 18 | Ground wire p50-10*10*500-1.8（z） | 27340117771 | 1 |
| 19 | Ground wire p50-10*10*300-1.8 | 27340116461 | 1 |
| 20 | Ground wire p50-10*10*250-1.8 | 27340123571 | 1 |
