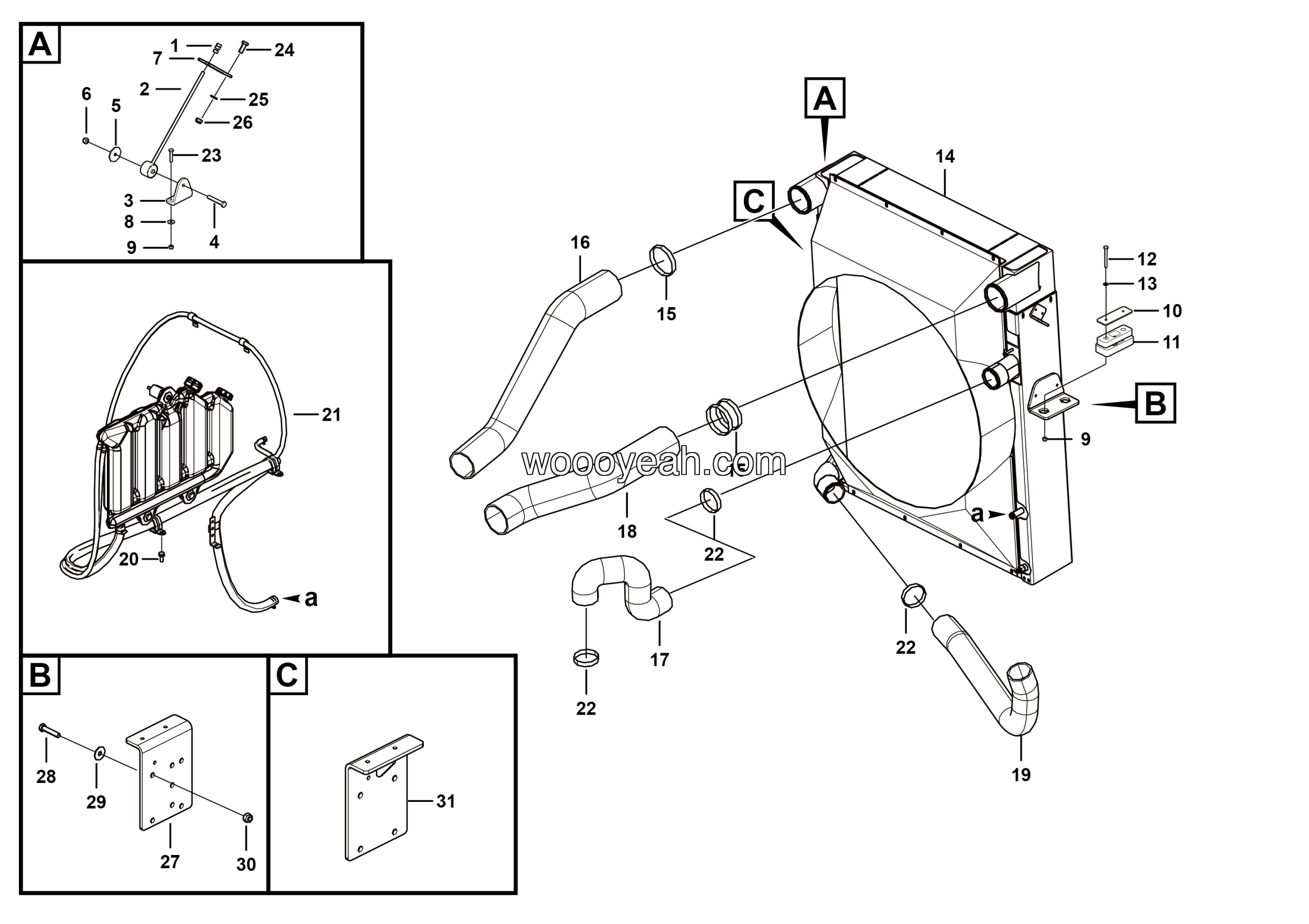

LGMG Off-Highway Dump Truck 2023 – Water radiator assembly – A0302-2703015450
Category: 2023 > Off-Highway Dump Truck > MT106M > M106MW3A0M301
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27030109021 | 2 |
| 2 | Radiator shock absorber assy | 4110001445 | 2 |
| 3 | Bolt GB5783-M10*100EpZn-8.8 | 4011000914 | 4 |
| 4 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 5 | Radiator assy M9116864 | 4110706675 | 1 |
| 6 | Butterfly spring clamp φ93-φ118 | 4190708166 | 7 |
| 7 | Intercooler outlet pipe110*5*848 | 27030156701 | 1 |
| 8 | Pipe | 27030151651 | 1 |
| 9 | Pipe | 27030151671 | 1 |
| 10 | Pipe | 27030151661 | 1 |
| 11 | Nut GB6170-M12EpZn-8 | 4013000011 | 6 |
| 12 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 3 |
| 13 | Expansion tank assembly | 27030151691 | 1 |
| 14 | Butterfly spring clamp φ70-φ92 | 4190708164 | 8 |
| 15 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 4 |
| 16 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 17 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 18 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 19 | Support | 27030124621 | 1 |
| 20 | Bolt GB5782-M14*65EpZn-10.9 | 4011010437 | 9 |
| 21 | Washer GB96.1-14EpZn-300HV | 4015000188 | 9 |
| 22 | Radiator bar | 4110001451 | 2 |
| 23 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 9 |
| 24 | Support | 27030124611 | 1 |
| 25 | Support | 27030109692 | 2 |
| 26 | Bolt GB5782-M14*85EpZn-8.8 | 4011010630 | 2 |
| 27 | Plate | 27030109731 | 2 |
| 28 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 29 | Plate | 27030124581 | 2 |
| 30 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 31 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 9 |
