Description

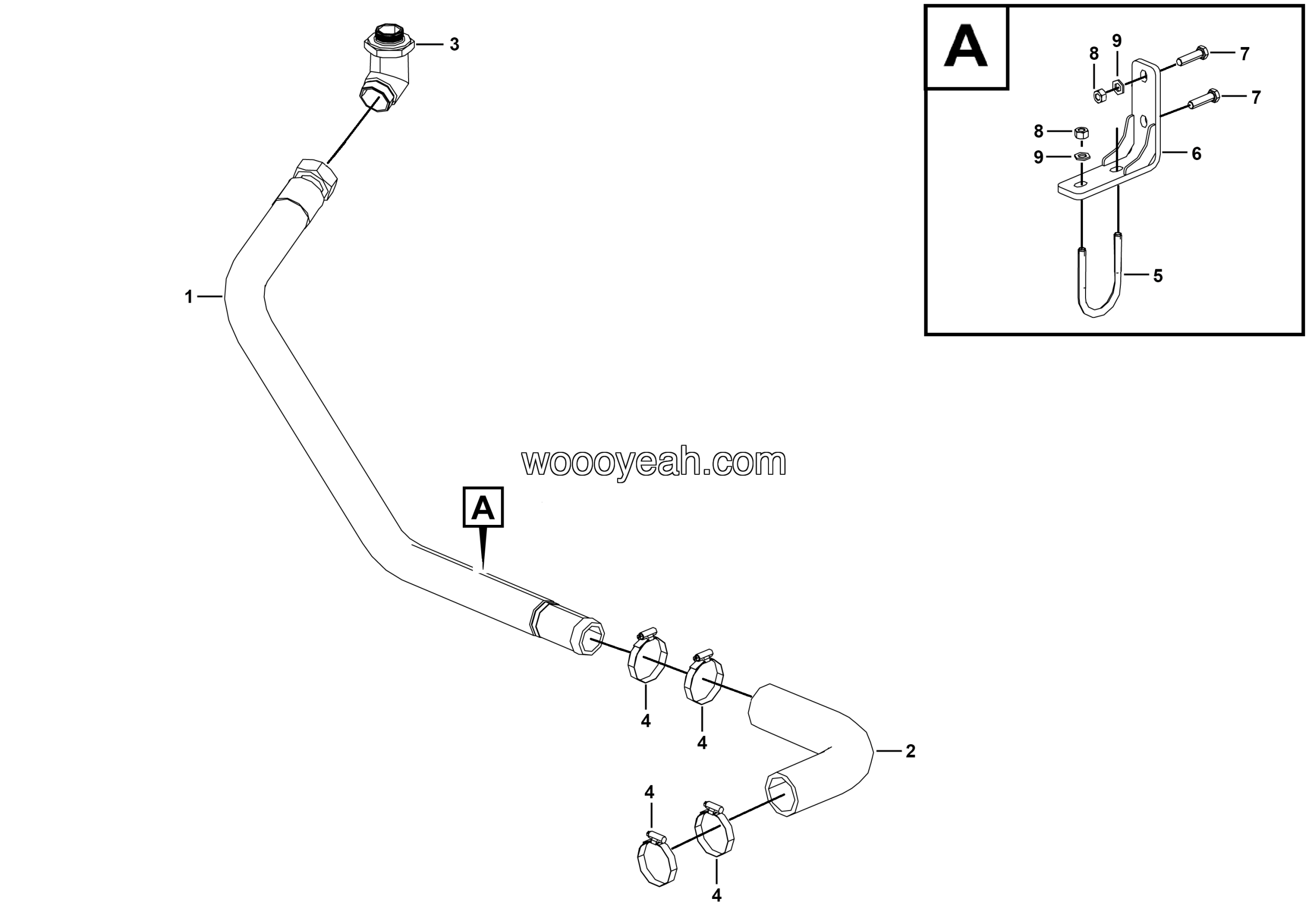

LGMG Off-Highway Dump Truck 2023 – Return steel pipe outward transfer assy – M1601-2716012568
Category: 2023 > Off-Highway Dump Truck > MT106 > M1060W3E0M016
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate welded | 27160124181 | 1 |
| 2 | Pipe | 27160115891 | 1 |
| 3 | Connector | 27160116192 | 1 |
| 4 | Hose clamp JB8870-D70 | 4017000017 | 4 |
| 5 | U bolt | 27160121841 | 1 |
| 6 | Plate | 27160125671 | 1 |
| 7 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 2 |
| 8 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
| 9 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
