LGMG Off-Highway Dump Truck 2023 – PROPELLER SHAFT ASSEMBLY – F1000-4110001114
Category: 2023 > Off-Highway Dump Truck > MT96L > M096LW3A0M305

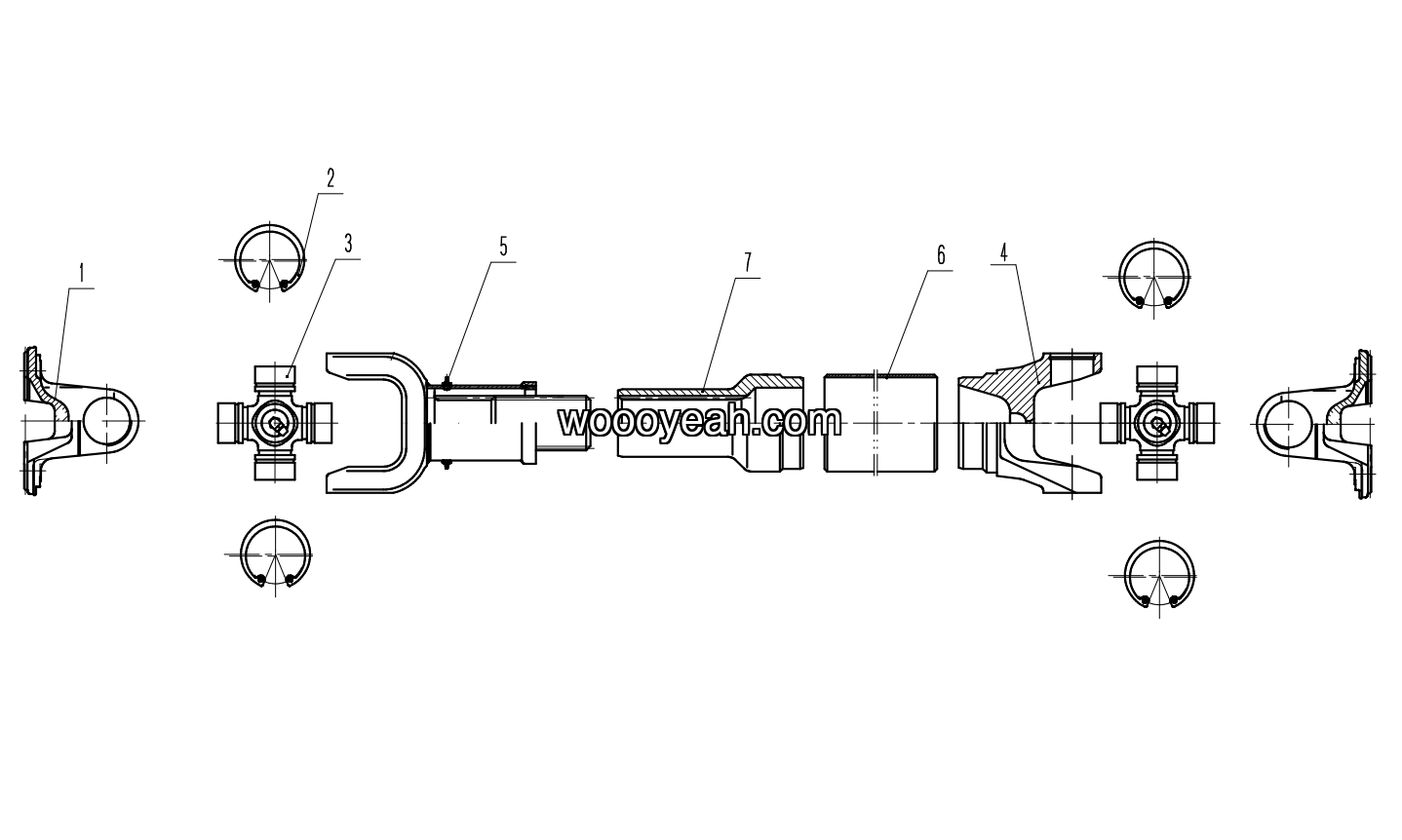

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Flange fork 68011401111 | 4110001048001 | 1 |
| 2 | Snap ring 68011401201 | 4110001048002 | 1 |
| 3 | Cross shaft assy 680168165 | 4110001048003 | 1 |
| 4 | Universal joint fork 68011401301 | 4110001048009 | 1 |
| 5 | Grease nipple M6 | 4110001048006 | 1 |
| 6 | Shaft tube φ140*5 | 4110000956001 | 1 |
| 7 | Spline hub 6564110008-AQ | 4110000928001 | 1 |
