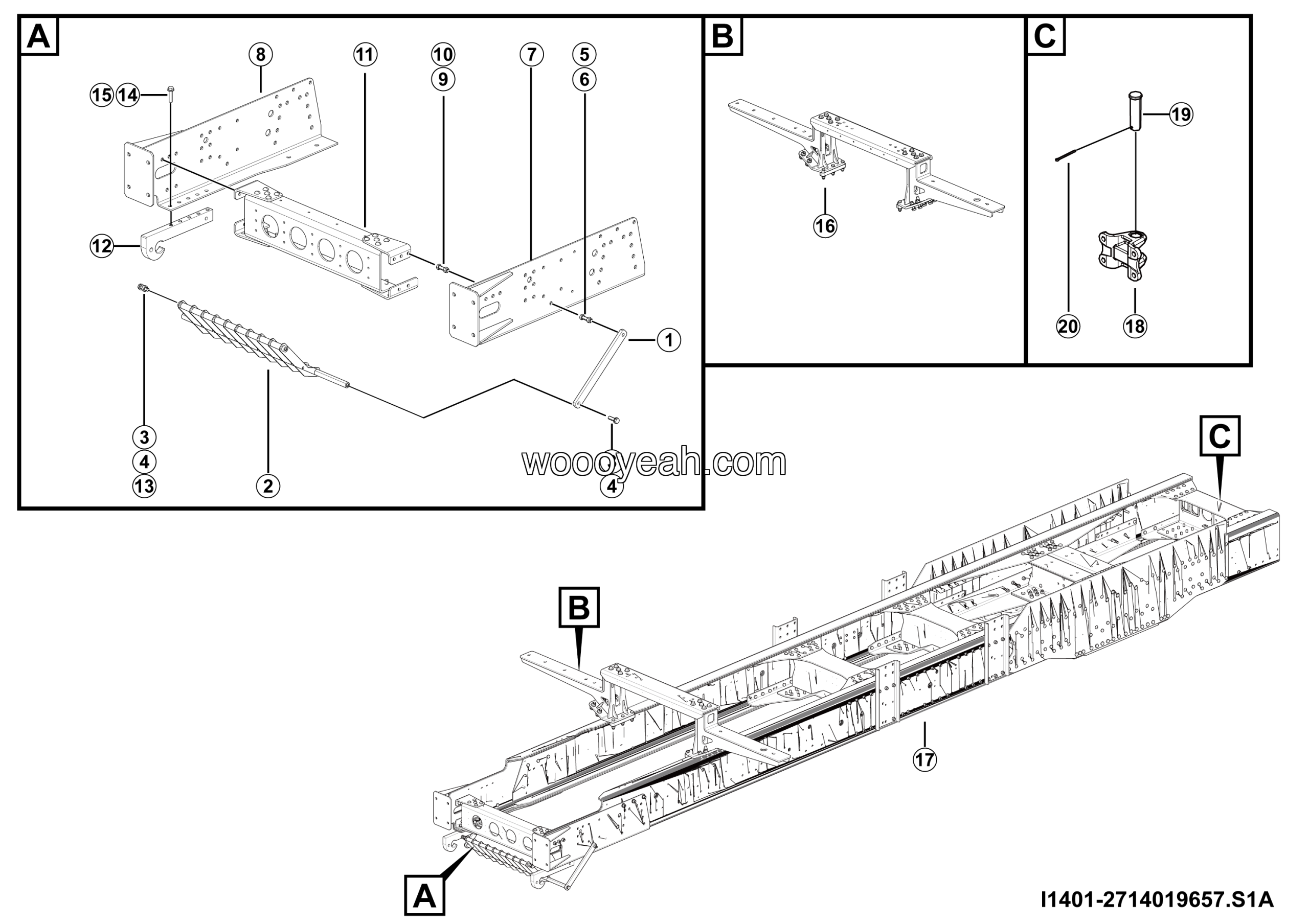

LGMG Off-Highway Dump Truck 2023 – Frame assy – I1401-2714019657.S1A
Category: 2023 > Off-Highway Dump Truck > MT106HF > M106HW4A2M001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 14 |
| 2 | Crossbeam 1 assy | 27140196381 | 1 |
| 3 | Fr traction hook | 27140192831 | 2 |
| 4 | Spacer sleeve 30*6.5*13 | 27140192781 | 2 |
| 5 | Bolt GB5786-M16*1.5*70flZnyc-12.9-480 | 4011011419 | 6 |
| 6 | Washer GB1230-16EpZn-45 | 4015000001 | 10 |
| 7 | Hydro-pneumatic spring crossbeam assy | 27140192841 | 1 |
| 8 | Frame | 27140196581 | 1 |
| 9 | Rear traction seat | 27140104822 | 1 |
| 10 | Pin | 27140105842 | 1 |
| 11 | Frame | 27140184671 | 2 |
| 12 | Pin GB91-6.3*71EpZn-Q235A | 4016010125 | 1 |
| 13 | Weldment | 27140184683 | 1 |
| 14 | Bolt GB5786-M16*1.5*50EpZn-8.8 | 4011000244 | 4 |
| 15 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 16 | Bolt GB5782-M16*70flZnyc-12.9-480 | 4011010615 | 2 |
| 17 | Nut GB6170-M16flZnyc-12-480 | 4013010254 | 2 |
| 18 | Left front connecting plate weldment | 27140190072 | 1 |
| 19 | Right front connecting plate weldment | 27140192762 | 1 |
| 20 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 18 |
