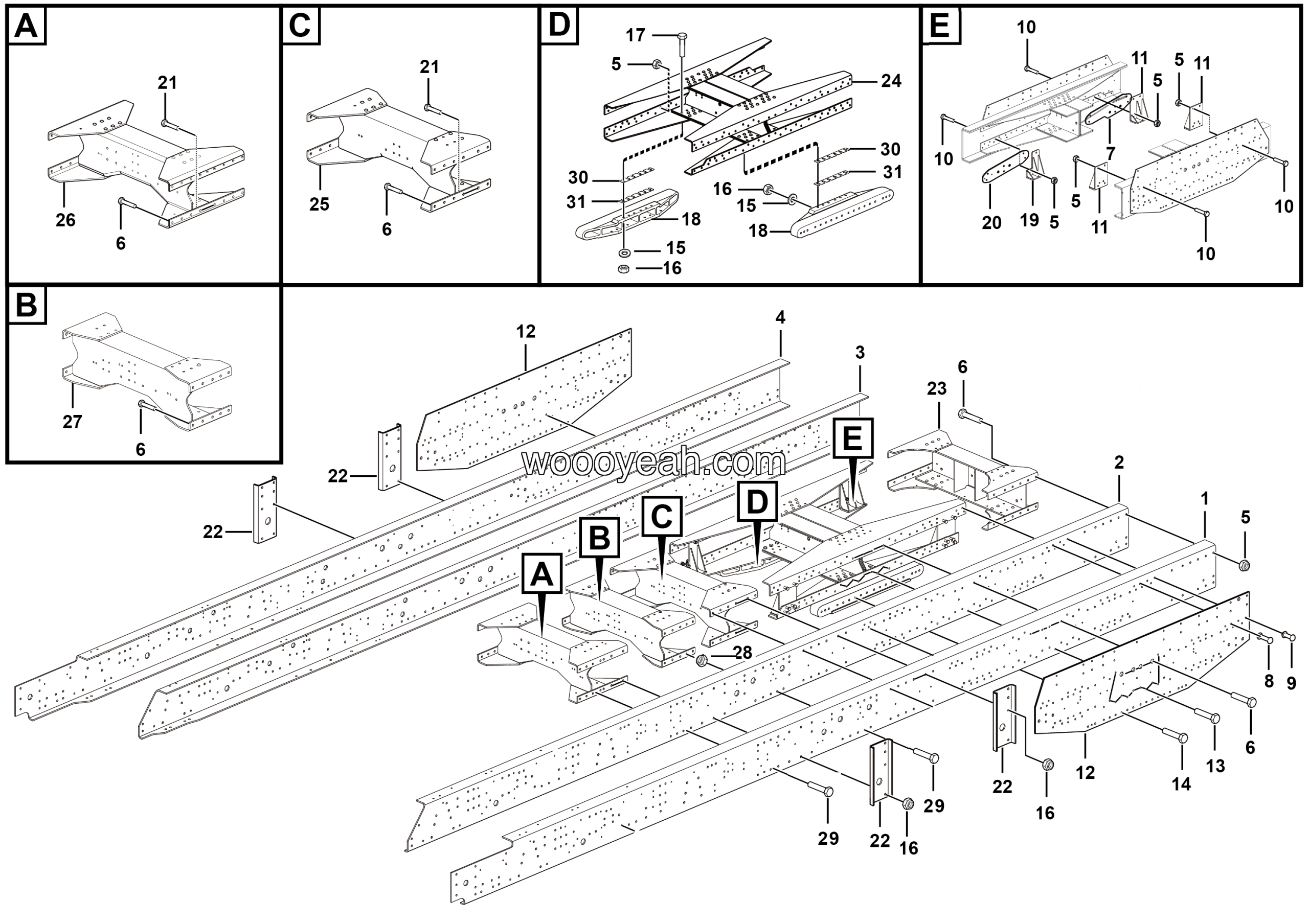

LGMG Off-Highway Dump Truck 2022 – Frame assy – I1401-2714013272
Category: 2022 > Off-Highway Dump Truck > CMT106 > C1060W3E0A003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | BOLT GB5785-M16*1.5*75-12.9 | 4011010391 | 22 |
| 2 | Seat | 27140119021 | 3 |
| 3 | CARGO BOX FLOOR | 27140129391 | 2 |
| 4 | Bolt GB5786-M16*1.5*60-12.9 | 4011010219 | 22 |
| 5 | Bolt GB5785-M18*1.5*80-12.9 | 4011010700 | 12 |
| 6 | Washer GB1230-18EpZn-45 | 4015010219 | 48 |
| 7 | NUT GB6185-M18*1.5EpZn-12 | 4013010252 | 64 |
| 8 | Bolt GB5786-M18*1.5*55-12.9 | 4011010739 | 36 |
| 9 | Middle seat | 27140124731 | 2 |
| 10 | Seat one | 27140119051 | 1 |
| 11 | PLATE | 27140132732 | 1 |
| 12 | Plate | 27140129401 | 1 |
| 13 | Bolt GB5786-M18*1.5*65-12.9 | 4011010740 | 16 |
| 14 | Superstructure connect plate | 27140104751 | 4 |
| 15 | Final beam assembly | 27140120281 | 1 |
| 16 | Balance shaft reinforce | 27140124451 | 1 |
| 17 | Beam assembly | 27140113101 | 1 |
| 18 | Beam assembly | 27140135671 | 1 |
| 19 | Beam assembly | 27140135691 | 1 |
| 20 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 21 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 22 | PLATE | 27140132742 | 1 |
| 23 | Trimmed gasket | 27140124522 | 2 |
| 24 | Trimmed gasket | 27140124532 | 2 |
| 25 | PIPE | 27140132752 | 1 |
| 26 | Plate | 27140132762 | 1 |
| 27 | Nut GB6185.2-M16*1.5-12 | 4013010222 | 106 |
| 28 | Bolt GB5785-M16*1.5*55-12.9 | 4011010388 | 62 |
| 29 | SUBPLATE | 27140129411 | 1 |
| 30 | Rivet GB867-14*52 | 4019000115 | 12 |
| 31 | Rivet GB867-14*65 | 4019000120 | 85 |
