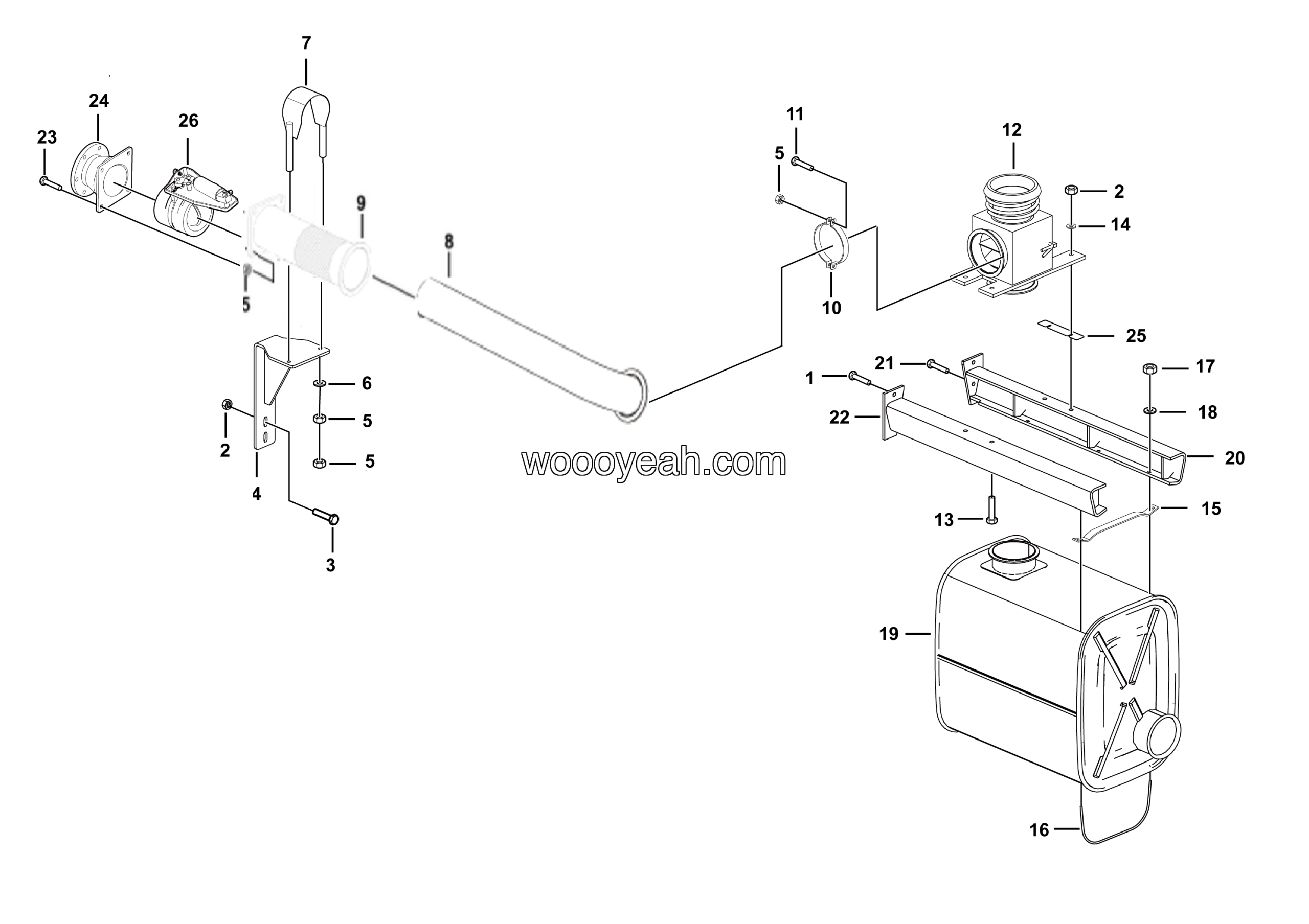

LGMG Off-Highway Dump Truck 2023 – Exhaust and heating system – A2407-2724010343
Category: 2023 > Off-Highway Dump Truck > MT86H > M086HW3A0A014
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Clamp | 4110000768 | 3 |
| 2 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 3 |
| 3 | Exhaust conversion box assy | 4110001279 | 1 |
| 4 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 5 | Washer GB96.1-12EpZn-300HV | 4015000186 | 6 |
| 6 | Plate | 27010110711 | 3 |
| 7 | TENSIONING LEVER | 27010101611 | 3 |
| 8 | Nut GB6170-M8EpZn-8 | 4013000033 | 12 |
| 9 | Washer GB96.1-8EpZn-300HV | 4015000256 | 6 |
| 10 | Muffler assy | 4110703638 | 1 |
| 11 | Bolt GB5783-M12*55EpZn-8.8 | 4011000254 | 2 |
| 12 | Plate | 27010110671 | 1 |
| 13 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 2 |
| 14 | Plate | 27010110661 | 1 |
| 15 | Bolt GB16674.1-M10*120EpZn-8.8 | 4011000601 | 4 |
| 16 | JOINT NIPPLE | 27240101121 | 1 |
| 17 | PLATE | 27240102591 | 2 |
| 18 | Exhaust brake butterfly valve | 4110000157 | 1 |
| 19 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 20 | Bolt GB5783-M12*60EpZn-8.8 | 4011000284 | 1 |
| 21 | Frame | 27240104871 | 1 |
| 22 | Nut GB6170-M10EpZn-8 | 4013000007 | 18 |
| 23 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 24 | PLATE | 27240102051 | 1 |
| 25 | Lower exhaust pipe | 4110703095 | 1 |
| 26 | Air pipe | 27240106361 | 1 |
