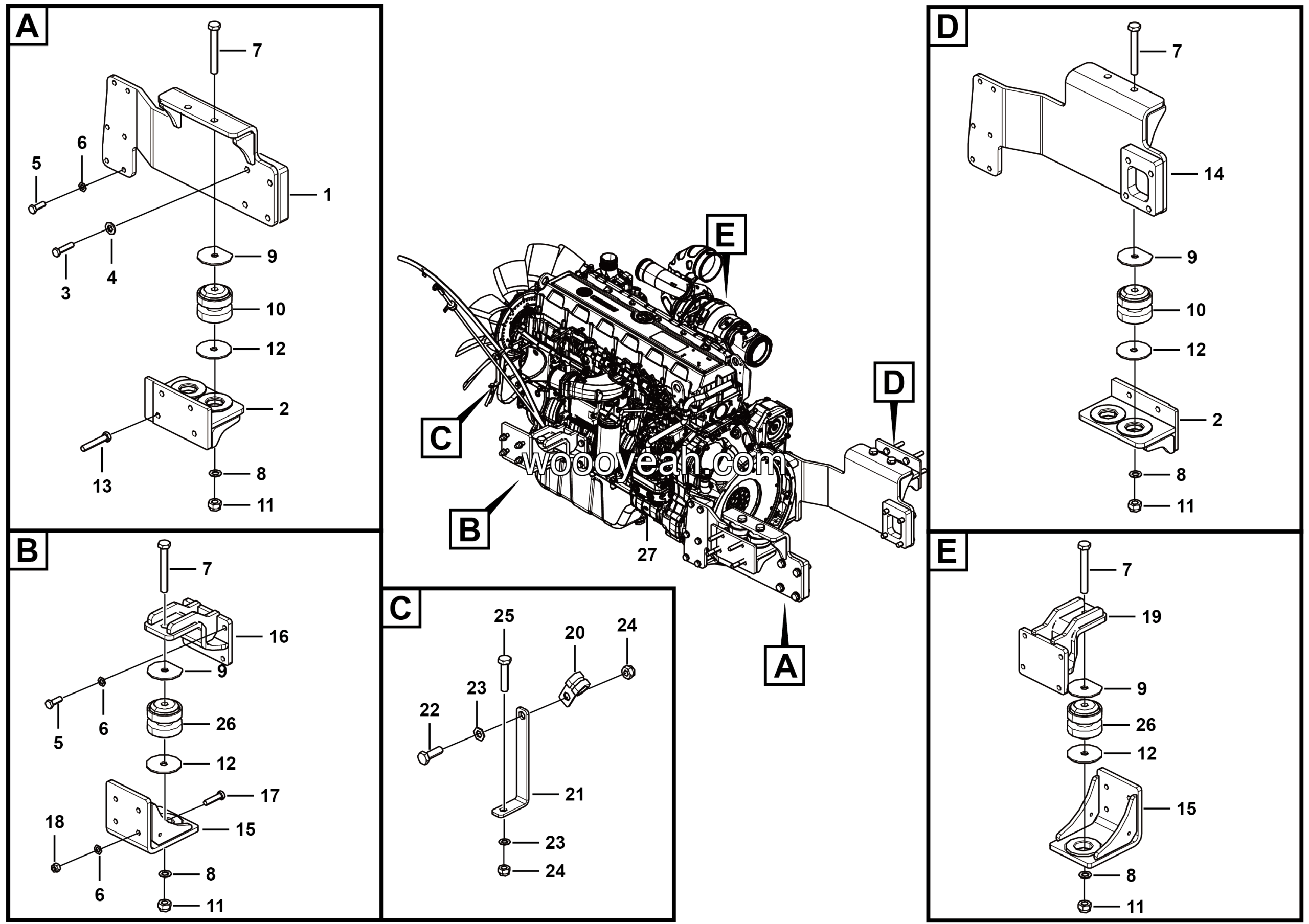

LGMG Off-Highway Dump Truck 2023 – engine system – A0101-2701013359.S1B
Category: 2023 > Off-Highway Dump Truck > MT96L > M096LW3A0M308
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Shock absorber MDS110-65 | 4110706317 | 8 |
| 2 | Nut GB6185.1-M22flZnyc-12-480 | 4013010282 | 6 |
| 3 | Front rubber baes plate | 27010115971 | 6 |
| 4 | Bolt GB5785-M18*1.5*100flZnyc-12.9-480 | 4011010485 | 8 |
| 5 | Plate | 27010134501 | 1 |
| 6 | Plate | 27010133741 | 2 |
| 7 | Wilding | 27010133361 | 1 |
| 8 | Bolt GB5782-M16*65EpZn-10.9 | 4011010012 | 8 |
| 9 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 8 |
| 10 | Wilding | 27010133401 | 1 |
| 11 | Plate | 27010134482 | 1 |
| 12 | Clamp | 26370001911 | 2 |
| 13 | Plate | 27010130871 | 1 |
| 14 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 15 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 16 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 17 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 1 |
| 18 | Shock absorber MDS110-75（10-04094） | 4110705488 | 4 |
| 19 | Engine assy WP14TG765E304 | 4110706668 | 1 |
| 20 | Plate | 27010134512 | 2 |
| 21 | Bolt GB5782-M20*80flZnyc-12.9-480 | 4011010797 | 8 |
| 22 | Washer GB1230-20EpZn-45 | 4015000002 | 8 |
| 23 | Bolt GB5783-M16*45flZnyc-12.9-480 | 4011010621 | 20 |
| 24 | Washer GB97.1-16EpZn-300HV | 4015000181 | 28 |
| 25 | BOLT GB5782-M22*180flZnyc-12.9-480 | 4011011124 | 6 |
| 26 | Washer GB97.1-22EpZn-300HV | 4015000184 | 6 |
| 27 | Plate | 27010134461 | 4 |
