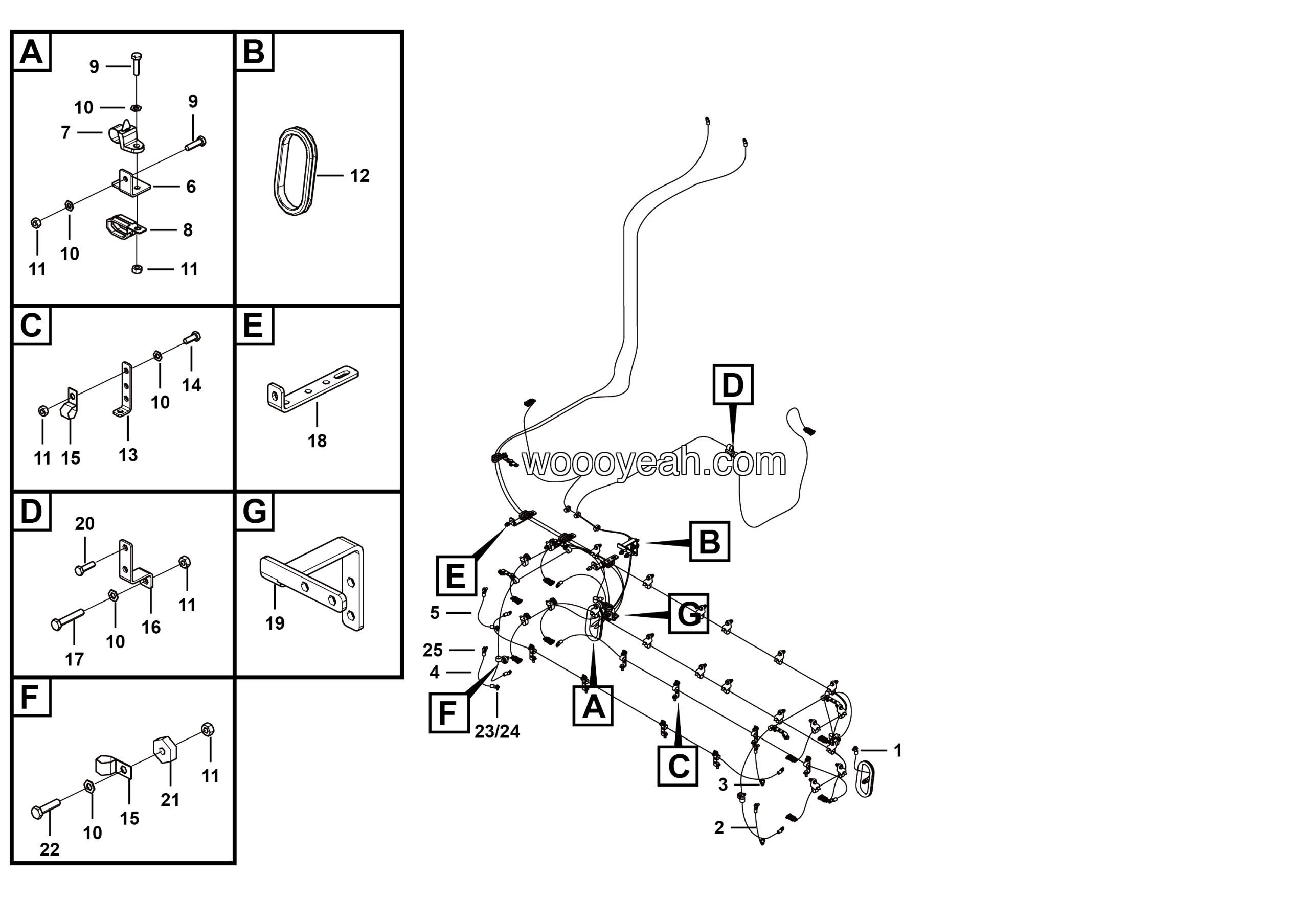

LGMG Off-Highway Dump Truck 2023 – electrical assembly – K6200-2762000276.S1A
Category: 2023 > Off-Highway Dump Truck > MTE86U > M086HE0A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-10EpZn-300HV | 4015000162 | 119 |
| 2 | Nut GB6170-M10EpZn-8 | 4013000007 | 52 |
| 3 | Protecting | 27620002181 | 2 |
| 4 | Bracket | 27620002681 | 13 |
| 5 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 22 |
| 6 | Pipe clamp R-D24-M10 | 4190707970 | 14 |
| 7 | Bracket | 27620002511 | 1 |
| 8 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 8 |
| 9 | Bracket | 27620002691 | 3 |
| 10 | Bracket | 27620002731 | 1 |
| 11 | wire | 2762000161-020 | 1 |
| 12 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 7 |
| 13 | Plate | 27620002741 | 4 |
| 14 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 2 |
| 15 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 4 |
| 16 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 17 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 5 |
| 18 | wire | 2762000161-031 | 1 |
| 19 | wire | 2762000161-030 | 1 |
| 20 | wire | 2762000161-029 | 1 |
| 21 | wire | 2762000161-028 | 1 |
| 22 | Bracket | 27620001221 | 1 |
| 23 | Cable tie 14400342 | 4130703098 | 25 |
| 24 | Double hole R-type clamp R-D25*2-M10 | 4190707978 | 6 |
| 25 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 21 |
