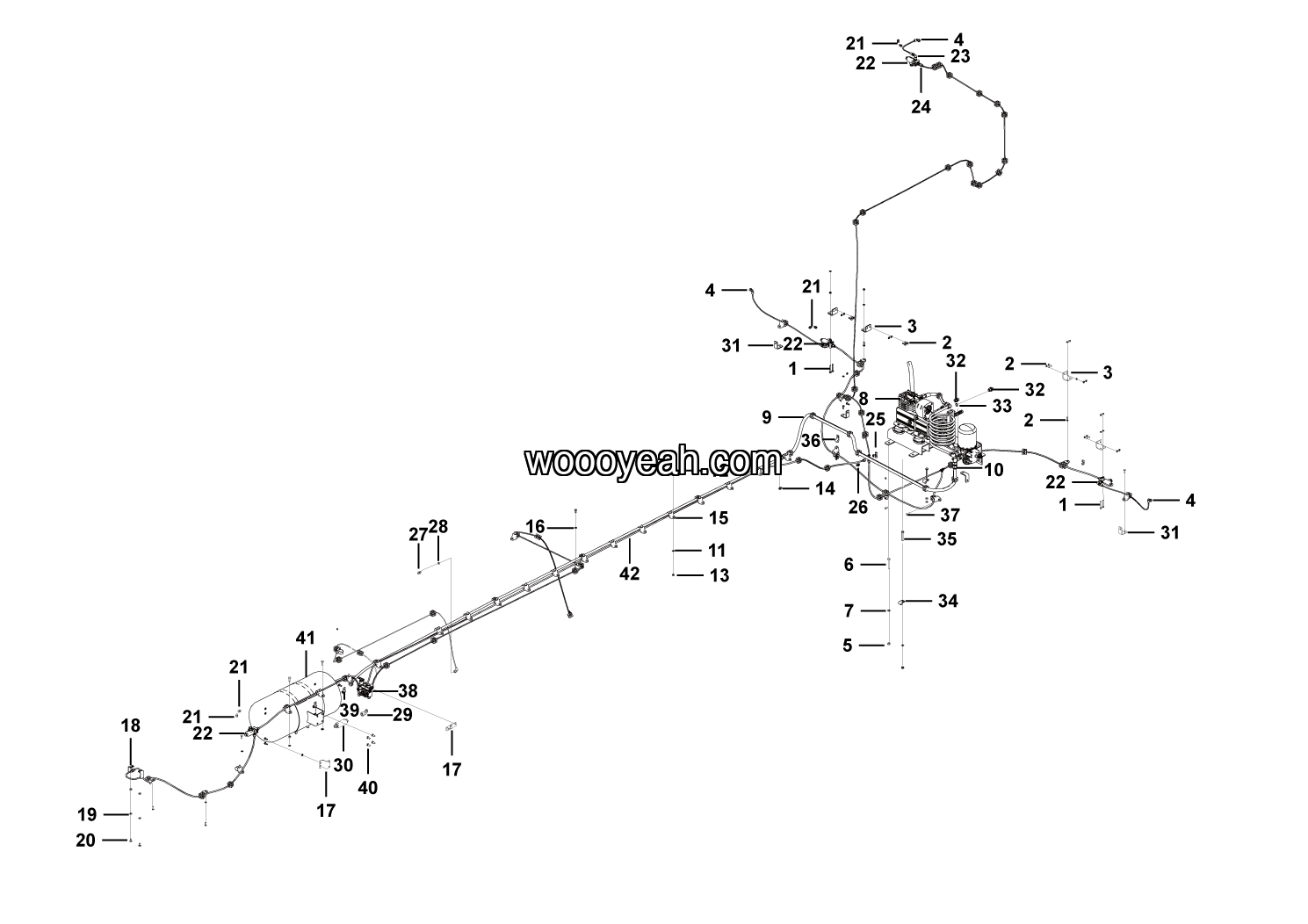

LGMG Off-Highway Dump Truck 2023 – Auxiliary gas assembly – J4401-2744010159
Category: 2023 > Off-Highway Dump Truck > RTH136(EQ) > R1260Y3A0A504
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Joint GZ15LCF | 4120708651 | 1 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 20 |
| 3 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 17 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 20 |
| 5 | Joint G15LCFX | 4120707917 | 1 |
| 6 | Cable tie 14400342 | 4130703098 | 32 |
| 7 | Washer GB97.1-8EpZn-300HV | 4015000072 | 31 |
| 8 | Plate | 27440101242 | 1 |
| 9 | Plate | 27440101331 | 1 |
| 10 | Washer GB97.1-10-300HV | 4015000322 | 2 |
| 11 | Bolt GB5782-M8*55EpZn-8.8 | 4011000415 | 4 |
| 12 | Bolt GB5783-M10*16EpZn-8.8 | 4011000080 | 2 |
| 13 | Straight joint 1CH-14-12 | 4120000554 | 8 |
| 14 | ASR Valve CM-0620000 | 4120709644 | 4 |
| 15 | Combination joint LGB143-01406 | 4041001047 | 3 |
| 16 | Straight joint 2C-12-14 | 4120703308 | 4 |
| 17 | Tee LGB175-0141414 | 4041010546 | 1 |
| 18 | Joint G08LA3CX | 4120001296 | 1 |
| 19 | Joint M12-M12 | 27110101331 | 1 |
| 20 | Washer JB982-12 | 4015000327 | 1 |
| 21 | Combination joint LGB143-02213 | 4041001156 | 1 |
| 22 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 10 |
| 23 | Check valve KA-L15 | 4120712179 | 1 |
| 24 | Plate | 27100122431 | 5 |
| 25 | Straight joint LGB120-02222 | 4041000143 | 2 |
| 26 | O-ring LGB168-11924 | 4041000771 | 2 |
| 27 | Clamp R-D16-M10 | 4190707967 | 2 |
| 28 | Bolt GB5782-M10*70EpZn-8.8 | 4011000051 | 2 |
| 29 | Pipe clamp LGB169-A20*12.5 | 4041010363 | 1 |
| 30 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 20 |
| 31 | Solenoid valve assembly | 27440101671 | 1 |
| 32 | Pipe clamp LGB169-A10*10 | 4041010597 | 2 |
| 33 | Bracket welding | 27440101631 | 4 |
| 34 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 5 |
| 35 | Plate | 27100122411 | 1 |
| 36 | Gas tubes | 27440101621 | 1 |
| 37 | Combination joint LGB143-01205 | 4041010126 | 4 |
| 38 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 6 |
| 39 | Bolt GB5783-M12*75EpZn-8.8 | 4011000333 | 6 |
| 40 | Washer GB97.1-12EpZn-300HV | 4015000168 | 6 |
| 41 | Air compressor installation assembly | 27440101611 | 1 |
| 42 | pipe | 27100105171 | 1 |
