LGMG Off-Highway Dump Truck 2023 – ASM-Lift Accessory Assembly – M1600-2716013368
Category: 2023 > Off-Highway Dump Truck > RTH136(EQ) > R1260Y3A0A503

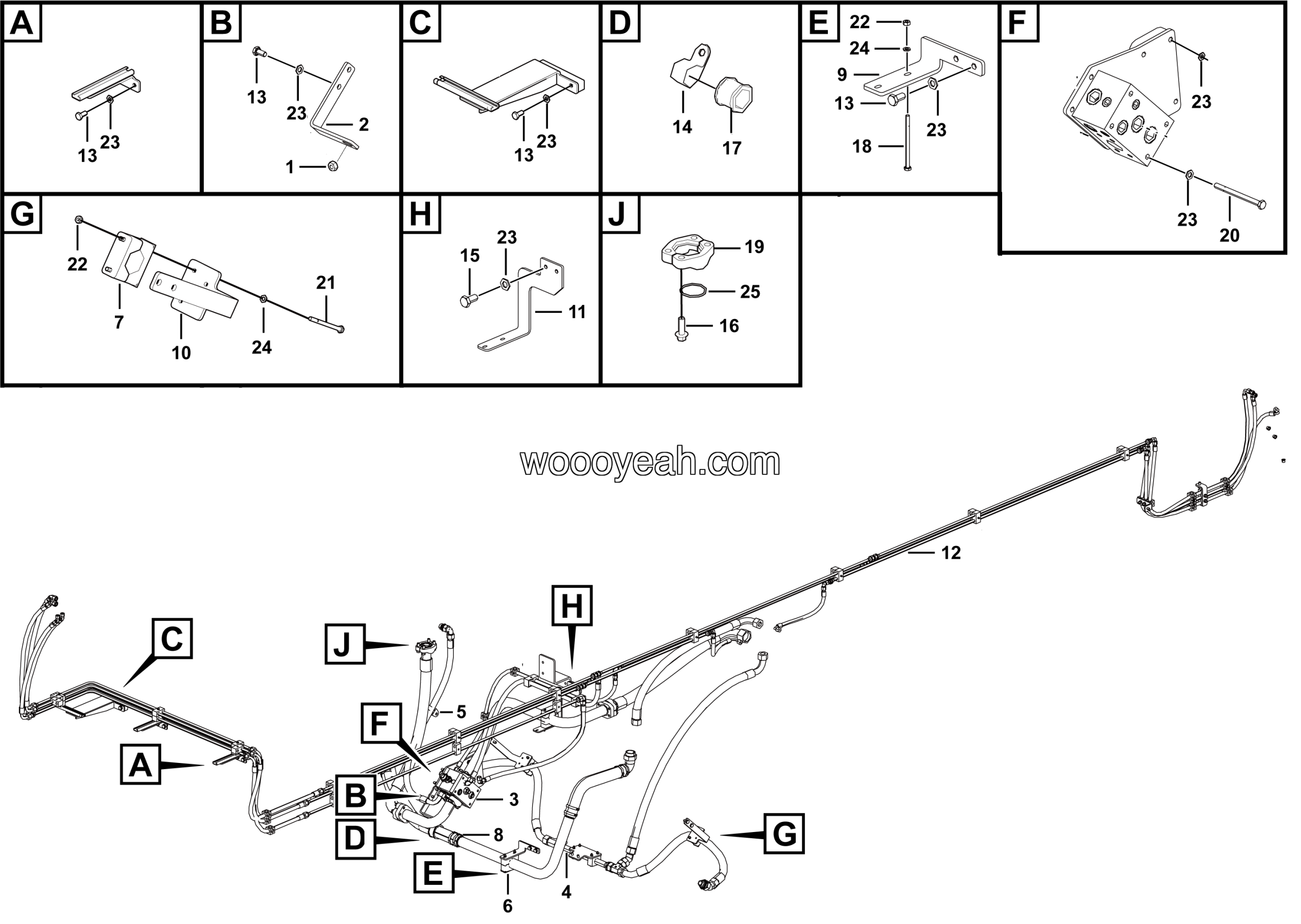

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket | 27160128491 | 2 |
| 2 | Bracket | 27160128511 | 1 |
| 3 | Asm-lift pipe assembly | 27160133721 | 1 |
| 4 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 10 |
| 5 | Pipe clamp LGB167-1060 | 4041000867 | 1 |
| 6 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 7 | Bolt GB16674.1-M12*35EpZn-8.8 | 4011000477 | 24 |
| 8 | Cushion sleeve LGB123-1060 | 4041000866 | 1 |
| 9 | Bolt GB5782-M6*90EpZn-8.8 | 4011000871 | 4 |
| 10 | Split flange LGB117-314650 | 4041000011 | 3 |
| 11 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 12 | Bolt GB5783-M10*110EpZn-8.8 | 4011010137 | 4 |
| 13 | Bolt GB5782-M6*80EpZn-8.8 | 4011011127 | 4 |
| 14 | Nut GB6170-M6EpZn-8 | 4013000028 | 8 |
| 15 | Washer GB97.1-10EpZn-300HV | 4015000162 | 14 |
| 16 | Washer GB97.1-6EpZn-300HV | 4015000207 | 8 |
| 17 | O-ring GB3452.1-47.5*3.55G | 4030000130 | 3 |
| 18 | Bracket | 27160131131 | 1 |
| 19 | Oil return block | 27160131151 | 1 |
| 20 | Lifting steel pipe assembly | 27160126811 | 1 |
| 21 | Cable tie 14400342 | 4130703098 | 5 |
| 22 | Tube clamp TLPG16-648 | 4120710534 | 2 |
| 23 | Tube clamp TLPG12-540 | 4120709344 | 2 |
| 24 | Double head double layer clamp 50-60 | 4120000953 | 8 |
| 25 | Braket | 27160128481 | 1 |
