Description

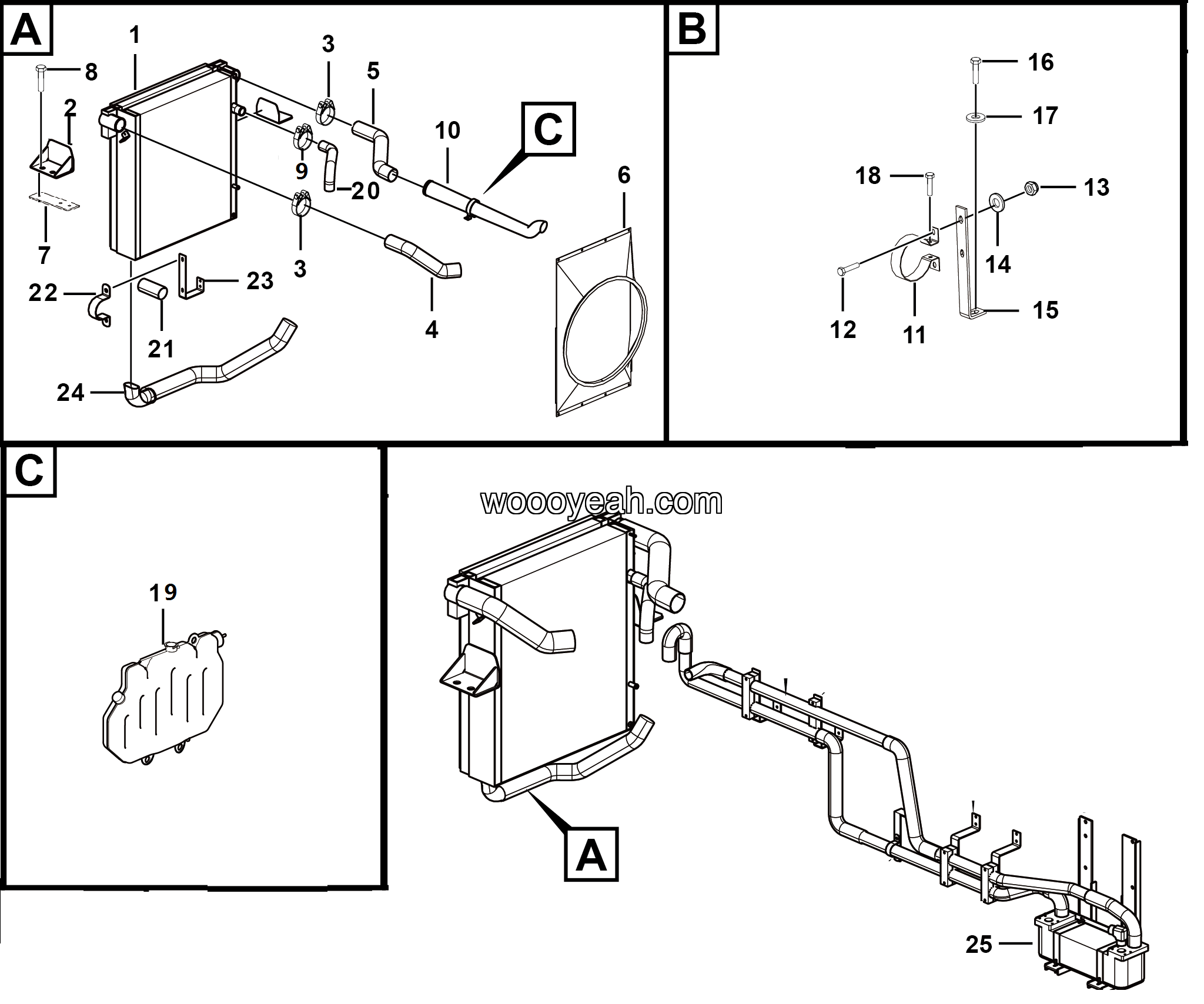

LGMG Off-Highway Dump Truck 2022 – Water radiator assy – A0301-2703014038
Category: 2022 > Off-Highway Dump Truck > CMT96 > C0960WF67
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe | 27030120072 | 1 |
| 2 | Support ii | 27030105872 | 1 |
| 3 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 4 | Nut GB6170-M8EpZn-8 | 4013000033 | 5 |
| 5 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 6 | Support i | 27030105861 | 1 |
| 7 | Bolt GB5782-M8*55EpZn-8.8 | 4011000415 | 1 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 9 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 10 | PIPE | 27030112631 | 1 |
| 11 | Radiator assy | 4110702625 | 1 |
| 12 | Pipe | 27030128431 | 1 |
| 13 | Cushion | 27160108711 | 1 |
| 14 | HOOD COVER ASSY | 27030113881 | 1 |
| 15 | SIGN | 27030113871 | 1 |
| 16 | Pipe | 27030140351 | 1 |
| 17 | Shuinuanjiare | 27030140361 | 1 |
| 18 | Cooler assemble support | 27030109981 | 1 |
| 19 | T-bolt clamp φ78-φ86 | 4190707304 | 4 |
| 20 | Pipe | 27030119501 | 1 |
| 21 | Pipe | 27030119481 | 1 |
| 22 | Wind guide cover DB1227 | 4110703401 | 1 |
| 23 | Plate | 27030112031 | 2 |
| 24 | Bolt GB5783-M10*100EpZn-8.8 | 4011000914 | 4 |
| 25 | T-bolt clamp φ113-φ121 | 4190707302 | 4 |
