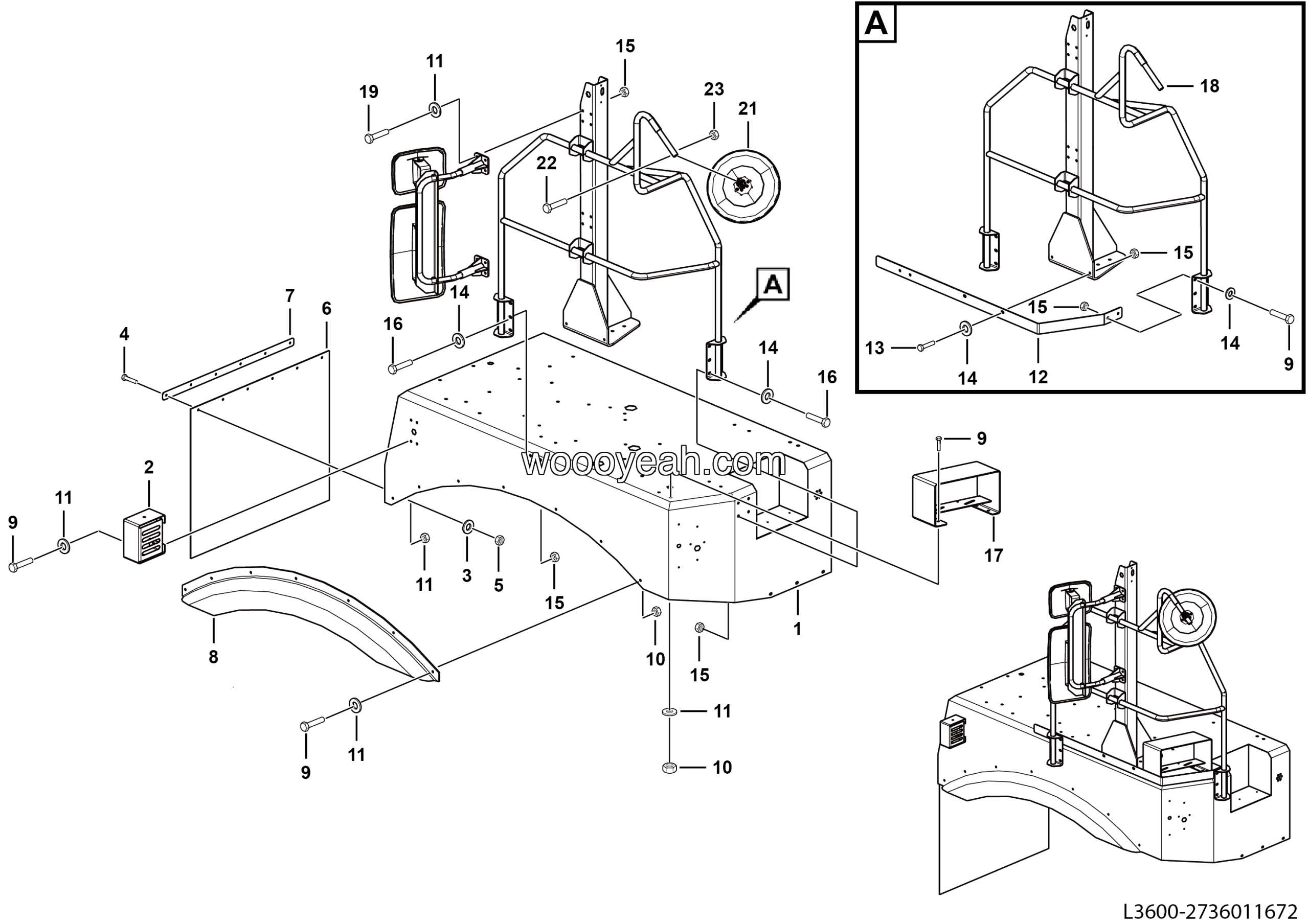

LGMG Off-Highway Dump Truck 2022 – Right platform assy – L3600-2736011672
Category: 2022 > Off-Highway Dump Truck > CMT96 > C0960WF34
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M10EpZn-8 | 4013000007 | 15 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 23 |
| 3 | Plate | 27360114971 | 1 |
| 4 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 6 |
| 5 | Washer GB96.1-10EpZn-300HV | 4015000197 | 14 |
| 6 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 22 |
| 7 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 4 |
| 8 | SIGN | 27360114351 | 1 |
| 9 | PLATE | 27360115151 | 1 |
| 10 | Bolt GB5782-M10*125EpZn-8.8 | 4011010193 | 8 |
| 11 | PLATE | 27360116731 | 1 |
| 12 | Right mirror assy | 27360108841 | 1 |
| 13 | RH FR under view mirror | 4190001367 | 1 |
| 14 | Bolt GB5783-M6*35EpZn-8.8 | 4011000286 | 1 |
| 15 | Nut GB6170-M6EpZn-8 | 4013000028 | 1 |
| 16 | Support | 27360111141 | 1 |
| 17 | Washer GB96.1-8EpZn-300HV | 4015000256 | 6 |
| 18 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 6 |
| 19 | Nut GB6170-M8EpZn-8 | 4013000033 | 6 |
| 20 | PLATE | 27360114981 | 1 |
| 21 | Plate | 27360114991 | 1 |
| 22 | Right wheel cover | 27360108151 | 1 |
| 23 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 19 |
