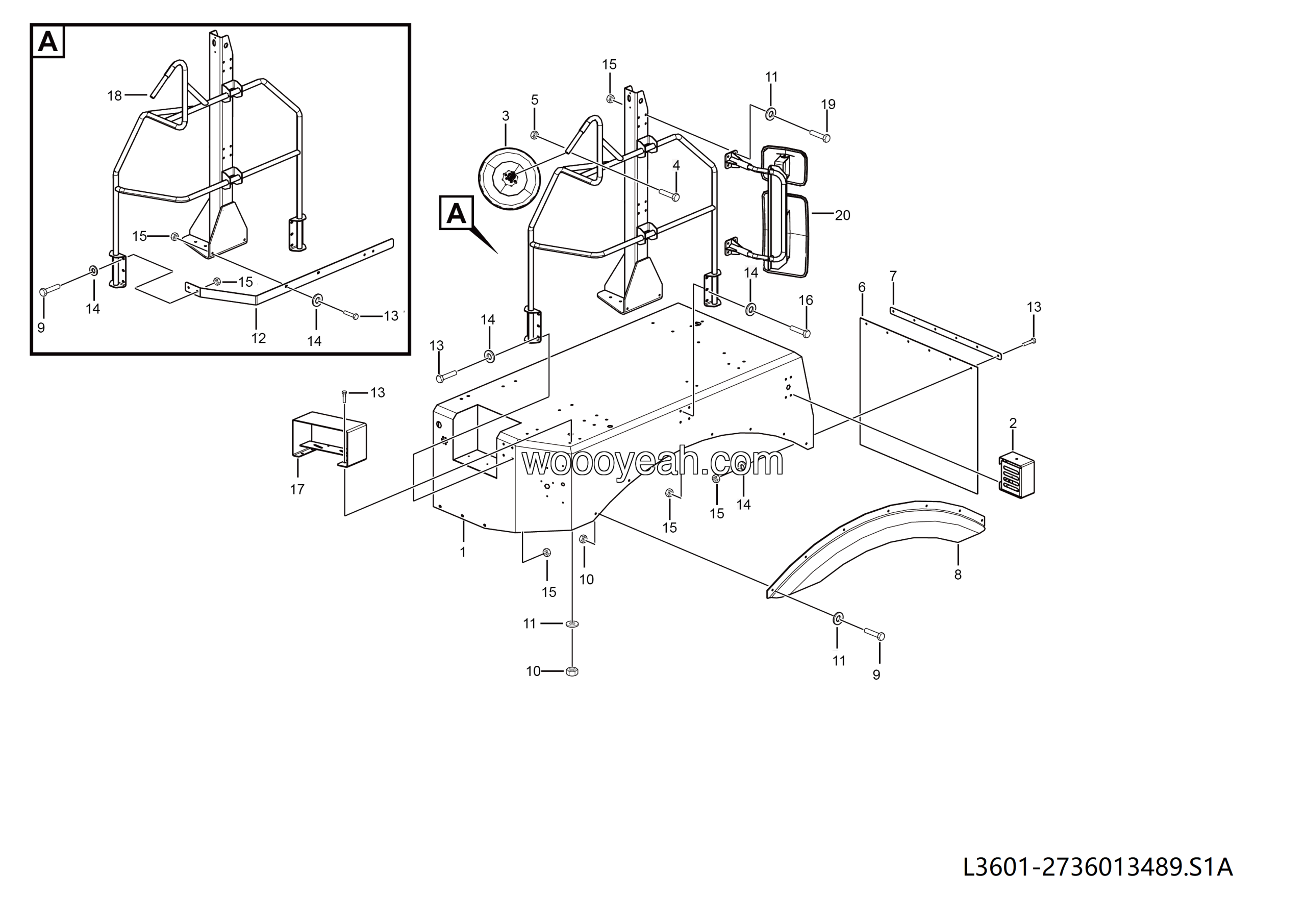

LGMG Off-Highway Dump Truck 2022 – Left platform assy – L3601-2736013489.S1A
Category: 2022 > Off-Highway Dump Truck > CMT106 > C1060W3E0A006
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M10EpZn-8 | 4013000007 | 15 |
| 2 | Washer GB97.1-10EpZn-300HV | 4015000162 | 23 |
| 3 | Plate | 27360137071 | 1 |
| 4 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 11 |
| 5 | Washer GB96.1-10EpZn-300HV | 4015000197 | 24 |
| 6 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 27 |
| 7 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 4 |
| 8 | Plate | 27360135001 | 1 |
| 9 | Handrail welding assembly | 27360134971 | 1 |
| 10 | Bolt GB5782-M10*125EpZn-8.8 | 4011010193 | 8 |
| 11 | Platform welding | 27360134901 | 1 |
| 12 | Left mirror assembly | 27360122041 | 1 |
| 13 | Support | 27360121251 | 1 |
| 14 | RH FR under view mirror | 4190001367 | 1 |
| 15 | Bolt GB5783-M6*35EpZn-8.8 | 4011000286 | 1 |
| 16 | Nut GB6170-M6EpZn-8 | 4013000028 | 1 |
| 17 | Plate | 27360137091 | 1 |
| 18 | Plate | 27360137101 | 1 |
| 19 | Left wheel cover | 27360108021 | 1 |
| 20 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 19 |
