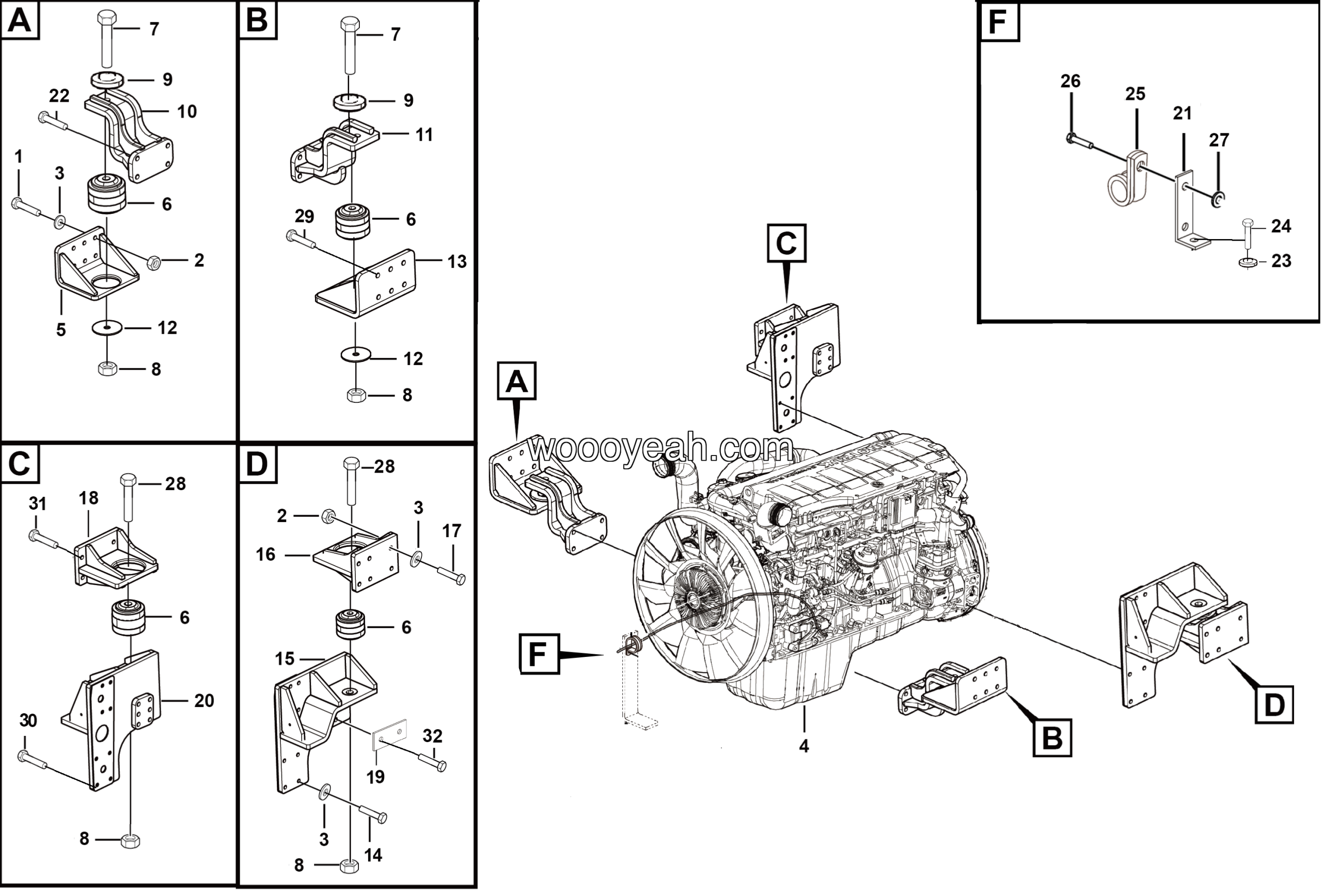

LGMG Off-Highway Dump Truck 2022 – Engine assy – A0101-2701012593.S1A
Category: 2022 > Off-Highway Dump Truck > MT106 > M1060W3A0A007
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | RIGHT LEG | 27010121251 | 1 |
| 2 | LEFT LEG | 27010121241 | 1 |
| 3 | Front rubber baes plate | 27010115971 | 6 |
| 4 | Left front seat | 27010120861 | 1 |
| 5 | Bolt GB5783-M16*45flZnyc-12.9-480 | 4011010621 | 12 |
| 6 | right leg | 27010125901 | 1 |
| 7 | Left support | 27010125591 | 1 |
| 8 | BOLT GB5782-M16*85flZnyc-12.9-480 | 4011010545 | 12 |
| 9 | left leg | 27010125921 | 1 |
| 10 | Plate | 27010125671 | 2 |
| 11 | Bolt GB5783-M16*65flZnyc-12.9-480 | 4011010552 | 6 |
| 12 | Right support | 27010125581 | 1 |
| 13 | Plate | 27010113352 | 1 |
| 14 | Bolt GB5782-M14*70flZnyc-12.9-480 | 4011010561 | 1 |
| 15 | Washer GB97.1-12EpZn-300HV | 4015000168 | 1 |
| 16 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 1 |
| 17 | Clamp | 26370001911 | 1 |
| 18 | BOLT GB5783-M10*20EPZN-8.8 | 4110000081 | 1 |
| 19 | No longer used | 4015000152 | 1 |
| 20 | BOLT GB5782-M22*180flZnyc-12.9-480 | 4011011124 | 4 |
| 21 | Bolt GB5783-M16*70flZnyc-12.9-480 | 4011010569 | 1 |
| 22 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 15 |
| 23 | Bolt GB5783-M16*75flZnyc-12.9-480 | 4011011216 | 8 |
| 24 | Bolt GB5783-M16*40flZnyc-12.9-480 | 4011010676 | 8 |
| 25 | Bolt GB5785-M18*1.5*90flZnyc-12.9-480 | 4011010496 | 4 |
| 26 | Washer GB97.1-16EpZn-300HV | 4015000181 | 47 |
| 27 | Engine assy WP13G530E310AT | 4110705051 | 1 |
| 28 | Right front seat | 27010120891 | 1 |
| 29 | FR mounted shock absorber | 4110702313 | 12 |
| 30 | Bolt GB5782-M22*180flZnyc-12.9-480 | 4011010793 | 2 |
| 31 | Nut GB6185.1-M22flZnyc-12-480 | 4013010282 | 6 |
| 32 | Bomp | 27010111571 | 2 |
