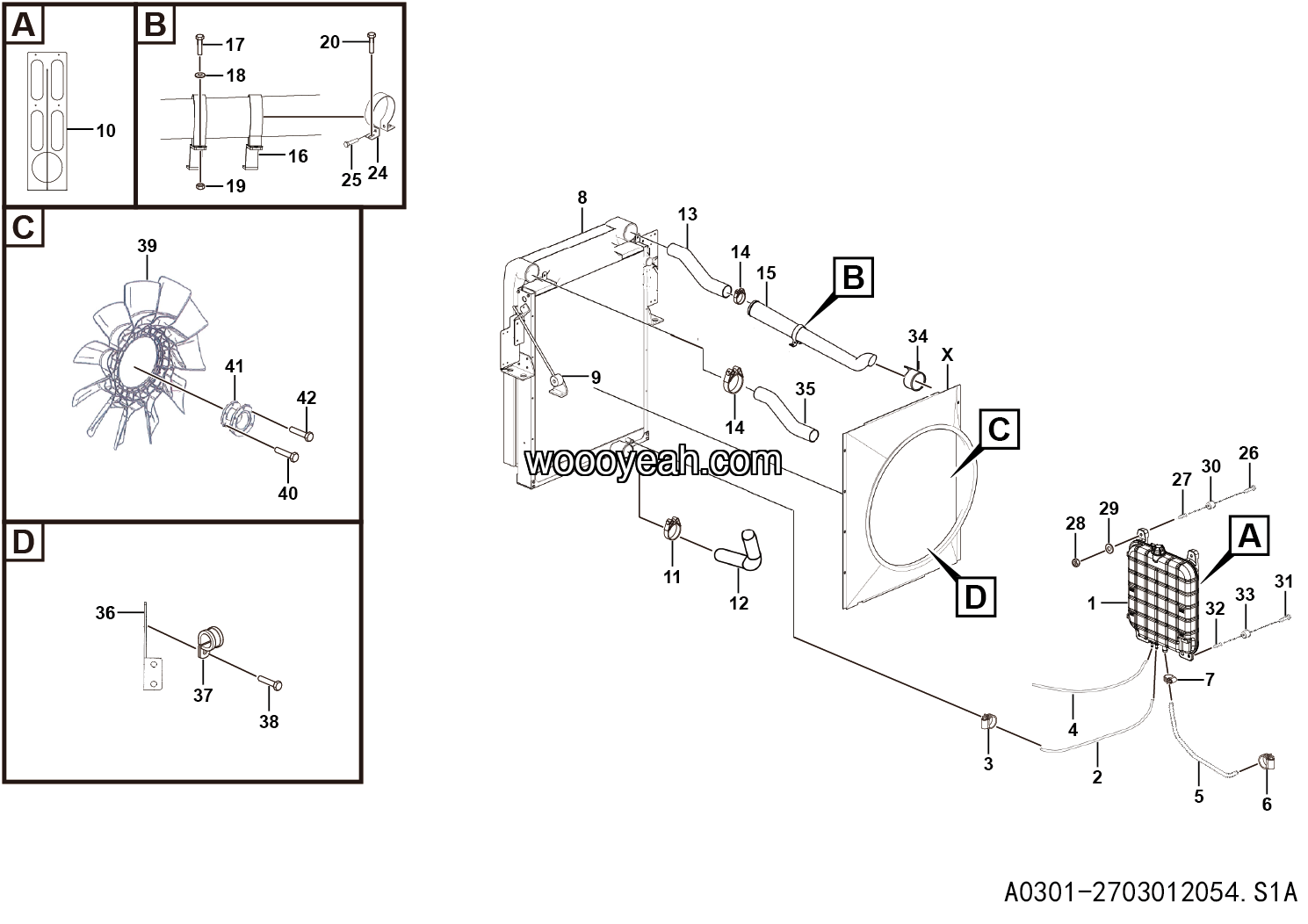

LGMG Off-Highway Dump Truck 2021 – Main raditor assy – A0301-2703012054.S1A

Description

Category: 2021 > Off-Highway Dump Truck > MT105 > M105NV3A0A03

No.	Part Name	Part Number	Qty
1	Support	27030120461	1
2	No longer used	4019010101	4
3	Pipe	27030117751	1
4	Pipe	27030118581	1
5	No longer used	4019010211	6
6	Pipe	27030117711	1
7	Support	27030117731	2
8	Bolt GB5782-M8*55EpZn-8.8	4011000415	2
9	Washer GB97.1-8EpZn-300HV	4015000072	6
10	Nut GB6185.1-M8EpZn-8	4013010118	12
11	Expansion water tank assy LG11-PZSX-01	4110703210	1
12	Bolt GB5783-M10*25flZnyc-10.9-480	4011010845	2
13	Bolt GB5782-M12*80EpZn-8.8	4011000334	2
14	Washer GB97.1-12EpZn-300HV	4015000168	4
15	Nut GB6185.1-M12EpZn-8	4013010120	4
16	Support i	27030105861	2
17	Bolt GB5783-M8*25EpZn-8.8	4011000106	4
18	No longer used	4011010652	2
19	Pipeⅱ	27030117801	2
20	Nut GB6185.1-M10EpZn-8	4013010119	4
21	Washer GB97.1-10EpZn-300HV	4015000162	4
22	Air pipe	27030102021	1
23	Rubber	27030117851	2
24	Bolt GB5782-M10*75EpZn-8.8	4011000052	2
25	Pipeⅰ	27030117791	2
26	Rubber	27030117841	2
27	Pipe	27030115621	1
28	Pipe	27030118591	1
29	Support	27030117741	1
30	Bolt GB5783-M12*40EpZn-8.8	4011000091	2
31	Pipe clamp	26370001921	2
32	Silicone clutch fan LG-FS-01	4110703218	1
33	No longer used	4190000343	4
34	Bolt GB5783-M8*40EpZn-8.8	4011000299	6
35	Connector	27030117811	1
36	Bolt GB5783-M10*40EpZn-8.8	4011000184	6
37	Pipe ⅰ	27030107561	1
38	Pipe	27030120501	1
39	Hose clamp JB8870-D50	4017000009	1
40	Hose clamp JB8870-D32	4017000011	1
41	Radiator assy M9115557	4110703211	1
42	Cooler assemble support	27030109661	1
