Description

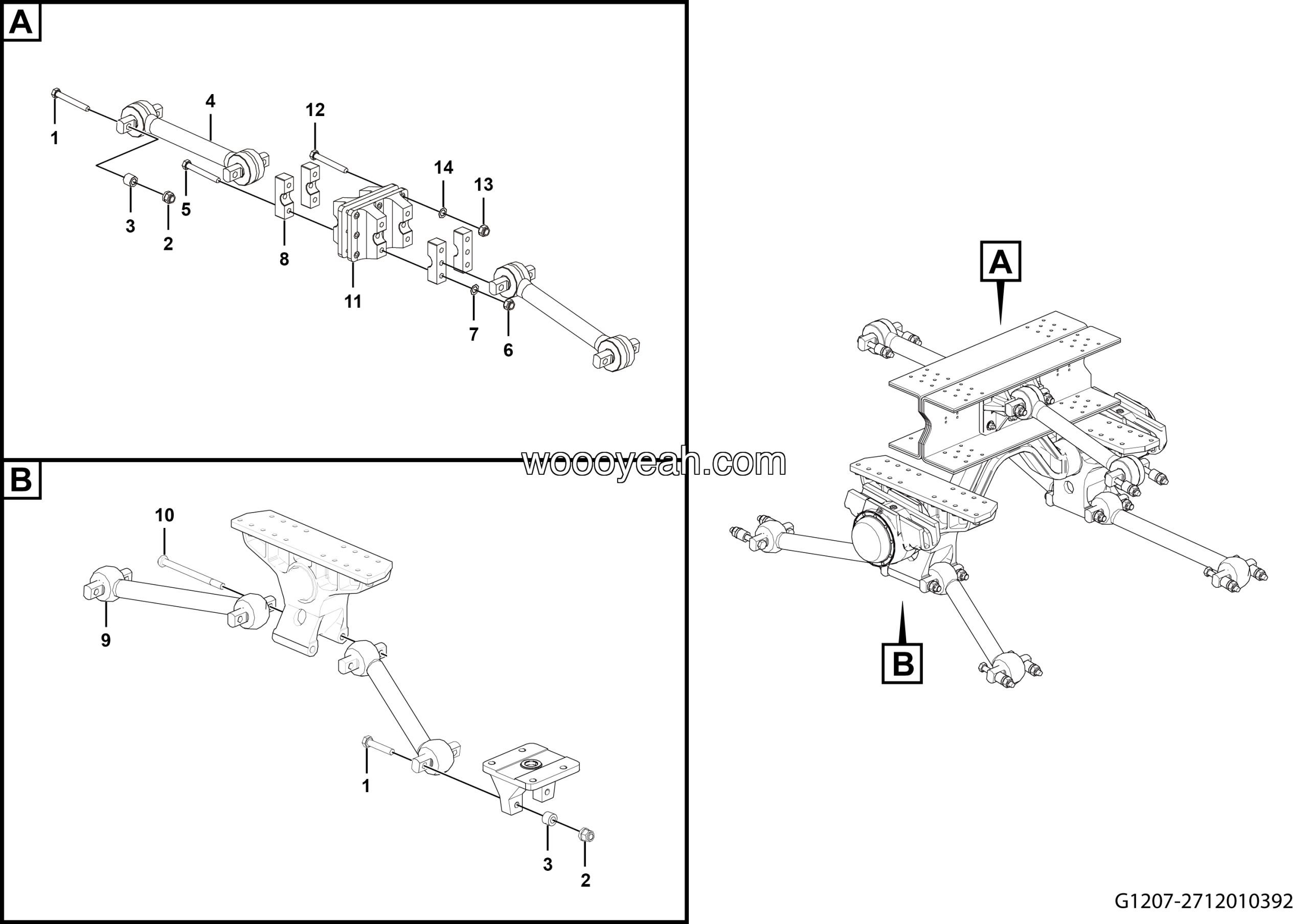

LGMG MT86D Mine Truck – Rear thrust rod installation assy – G1207-2712010392
Category: Mine Truck > MT86D > M086DWA83
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt M27*3*330-12.9 | 27120103721 | 1 |
| 2 | lower thrust bar scale | 27120116811 | 1 |
| 3 | Bolt GB5782-M16*115flZnyc-12.9-480 | 4011010678 | 1 |
| 4 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 1 |
| 5 | Washer GB1230-16EpZn-45 | 4015000001 | 1 |
| 6 | Bolt GB5782-M27*180flZnyc-12.9-480 | 4011010563 | 1 |
| 7 | Hexangular self-locking nut with the shoulder M27 | 27120103881 | 1 |
| 8 | Spacer sleeve | 27120105031 | 1 |
| 9 | Upr thrust rod assy | 4110001985 | 1 |
| 10 | Bolt | 27120115611 | 1 |
| 11 | Self-locking nut with the shoulder | 27120103611 | 1 |
| 12 | Washer GB1230-24EpZn-45 | 4015000003 | 1 |
| 13 | upper thrust bar scale | 27120116801 | 1 |
| 14 | Lower thrusting rod assembly | 27120103891 | 1 |
