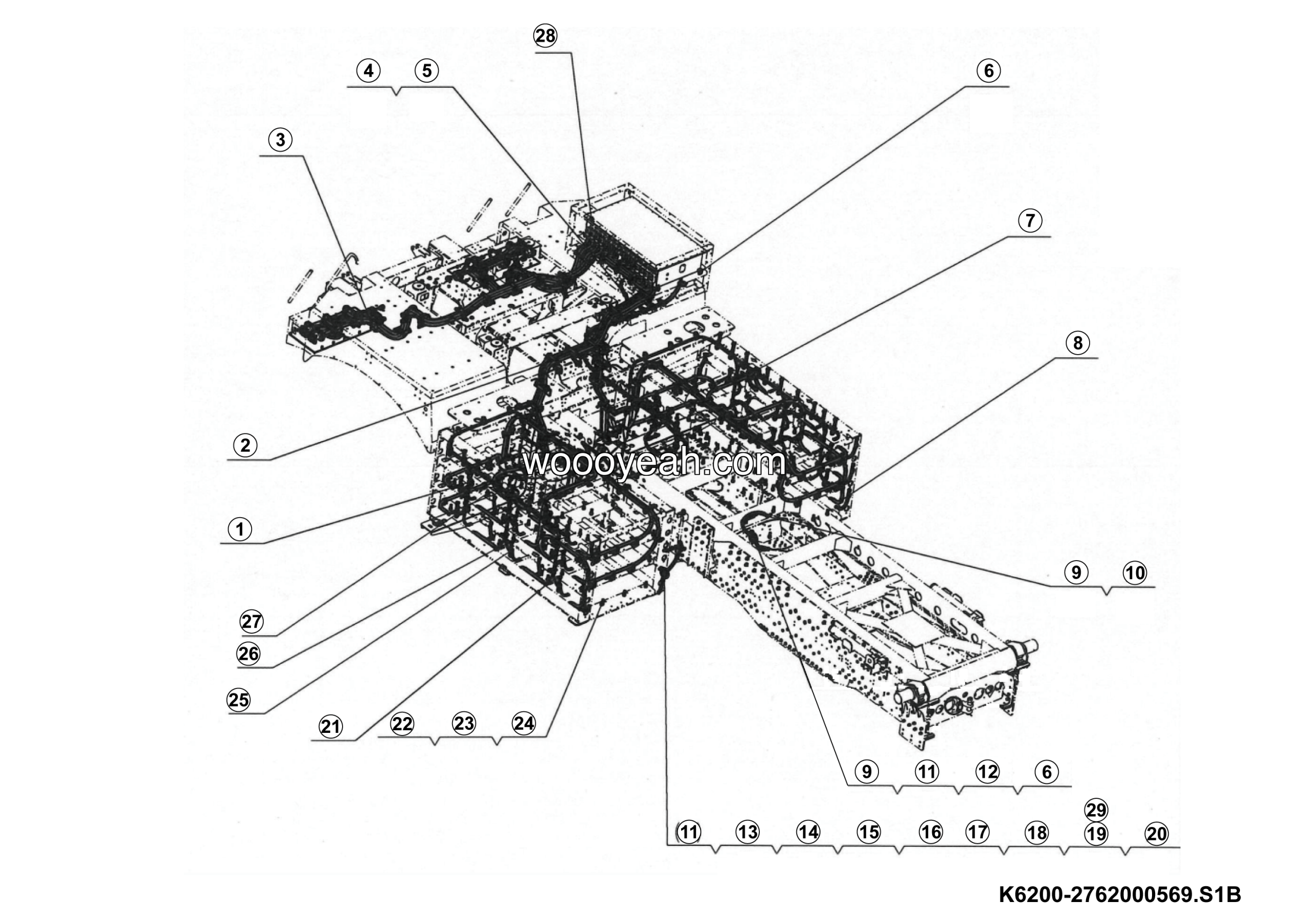

LGMG MTE106H 2025 – High volt battery assy – K6200-2762000569.S1B
Category: 2025 > MTE106H > C106HE0A0A501
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Square tube 40*4*575 | 27620007011 | 2 |
| 2 | L-bracket 50*30*20 | 27620005021 | 2 |
| 3 | Cable tie HS-J117 | 4130704969 | 2 |
| 4 | Double sack wedge lock washer HF10 | 4190708409 | 6 |
| 5 | Washer GB862.2-10-65Mn | 4015010586 | 6 |
| 6 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 2 |
| 7 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 2 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 36 |
| 9 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 16 |
| 10 | Ground wire bzw-50*950 | 2762000461-011 | 1 |
| 11 | Harness assy between battery boxes | 27620005731 | 1 |
| 12 | Jacket | 27620003461 | 2 |
| 13 | Harness assy between battery boxes | 27620005741 | 1 |
| 14 | Bolt GB5782-M12*50EpZn-10.9 | 4011010236 | 128 |
| 15 | Double sack wedge lock washer HF12 | 4190708410 | 128 |
| 16 | Washer GB97.1-12EpZn-300HV | 4015000168 | 128 |
| 17 | Harness assy between battery boxes-528 | 4130712745 | 1 |
| 18 | Harness assy between battery boxes-528 | 4130712744 | 1 |
| 19 | Battery box T01 | 4130705582 | 16 |
| 20 | High voltage box | 4130712743 | 1 |
| 21 | Ground wire bzw-50*950 | 2762000461-010 | 1 |
| 22 | Bdu harness assy | 27620005701 | 1 |
| 23 | Charging socket assy | 27620005771 | 1 |
| 24 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 25 | Ground wire bzw-50*350 | 2762000155-188 | 1 |
| 26 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 8 |
| 27 | Harness assy between battery boxes | 27620005751 | 1 |
| 28 | Harness assy between battery boxes | 27620005761 | 1 |
| 29 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 5 |
