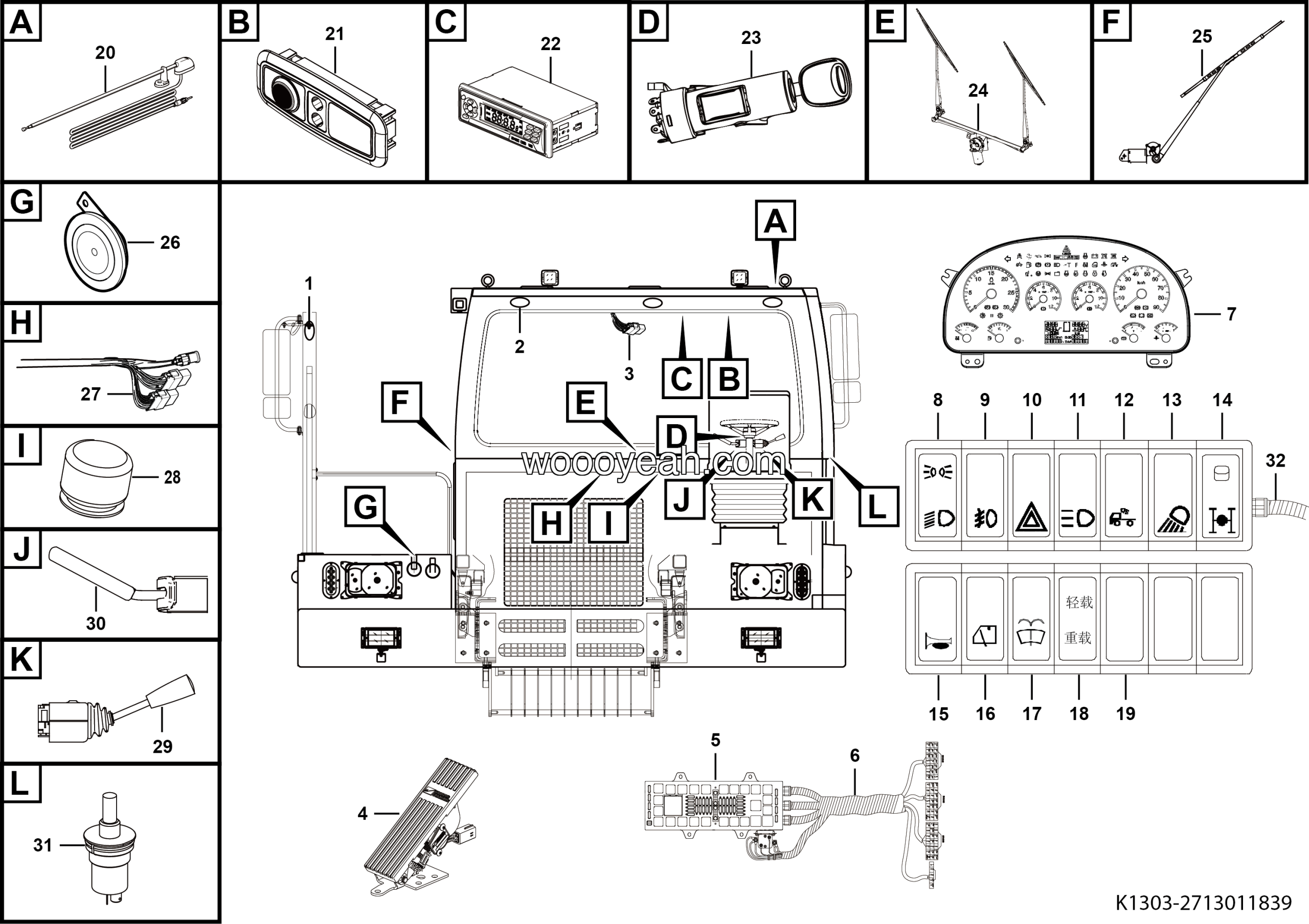

LGMG MT86M Mine Truck – Cab electrical system assy – K1303-2713011839
Category: Mine Truck > MT86M > M086MWA70
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Central alarm rocker switch JK939C | 4130000320 | 1 |
| 2 | Central alarm rocker switch JK939C | 4130000320 | 1 |
| 3 | Main-beam headlamp rocker switch JK939C | 4130000331 | 1 |
| 4 | Main-beam headlamp rocker switch JK939C | 4130000331 | 1 |
| 5 | Cab RR work lamp rocker switch JK939C | 4130000342 | 1 |
| 6 | Cab RR work lamp rocker switch JK939C | 4130000342 | 1 |
| 7 | Work lamp rocker switch JK939C | 4130000319 | 1 |
| 8 | Work lamp rocker switch JK939C | 4130000319 | 1 |
| 9 | Rocker switch JK939C（Differential） | 4130000317 | 1 |
| 10 | Rocker switch JK939C（Differential） | 4130000317 | 1 |
| 11 | Horn rocker switch JK939C | 4130000315 | 1 |
| 12 | Horn rocker switch JK939C | 4130000315 | 1 |
| 13 | Wiper washing rocker switch JK939C | 4130000819 | 1 |
| 14 | Wiper washing rocker switch JK939C | 4130000819 | 1 |
| 15 | Side window wiper rocker switch JK939C | 4130000341 | 1 |
| 16 | Side window wiper rocker switch JK939C | 4130000341 | 1 |
| 17 | Cover plate | 4130000328 | 8 |
| 18 | Cover plate | 4130000328 | 8 |
| 19 | Power curve switching rocker switch JK939C | 4130001113 | 1 |
| 20 | Power curve switching rocker switch JK939C | 4130001113 | 1 |
| 21 | Platform harness | 27200106091 | 1 |
| 22 | Platform harness | 27200106091 | 1 |
| 23 | Antenna QT1290B259 | 4130000300 | 1 |
| 24 | Antenna QT1290B259 | 4130000300 | 1 |
| 25 | Indoor ceiling lamp LG751 | 4130000312 | 1 |
| 26 | Indoor ceiling lamp LG751 | 4130000312 | 1 |
| 27 | Radio TK-B50D | 4130000706 | 1 |
| 28 | Radio TK-B50D | 4130000706 | 1 |
| 29 | Lgnition lock-81.46433.6009-1 | 4130001175 | 1 |
| 30 | Lgnition lock-81.46433.6009-1 | 4130001175 | 1 |
| 31 | Integral wiper 37419000040 | 4130000949 | 1 |
| 32 | Integral wiper 37419000040 | 4130000949 | 1 |
| 33 | Side wiper sys | 4130000807 | 1 |
| 34 | Side wiper sys | 4130000807 | 1 |
| 35 | Horn TX1033AR29 | 4130000299 | 2 |
| 36 | Horn TX1033AR29 | 4130000299 | 2 |
| 37 | Head cap harness | 27130118101 | 1 |
| 38 | Head cap harness | 27130118101 | 1 |
| 39 | Cigarette lighter LG770 | 4130000364 | 1 |
| 40 | Cigarette lighter LG770 | 4130000364 | 1 |
| 41 | Combination switch CS-102621 | 4130001174 | 1 |
| 42 | Combination switch CS-102621 | 4130001174 | 1 |
| 43 | Cab FR position light | 4130000954 | 4 |
| 44 | Cab FR position light | 4130000954 | 4 |
| 45 | Exhaust brake switch | 4130000701 | 1 |
| 46 | Exhaust brake switch | 4130000701 | 1 |
| 47 | Door lamp switch LG751 | 4130000323 | 1 |
| 48 | Door lamp switch LG751 | 4130000323 | 1 |
| 49 | Become warped plate switch wiring harness | 27130117571 | 1 |
| 50 | Become warped plate switch wiring harness | 27130117571 | 1 |
| 51 | Cab ceiling harness | 27130118091 | 1 |
| 52 | Cab ceiling harness | 27130118091 | 1 |
| 53 | Electronic accelerator WL400244 | 4130000413 | 1 |
| 54 | Electronic accelerator WL400244 | 4130000413 | 1 |
| 55 | Central control box KZQ-003C | 4130001102 | 1 |
| 56 | Central control box KZQ-003C | 4130001102 | 1 |
| 57 | Cab wire | 27130118781 | 1 |
| 58 | Cab wire | 27130118781 | 1 |
| 59 | Stepping instrument panel ZB209LGNB | 4130000987 | 1 |
| 60 | Stepping instrument panel ZB209LGNB | 4130000987 | 1 |
| 61 | Work/position light rocker switch JK939C | 4130000318 | 1 |
| 62 | Work/position light rocker switch JK939C | 4130000318 | 1 |
| 63 | FR fog lamp rocker switch JK939C | 4130000314 | 1 |
| 64 | FR fog lamp rocker switch JK939C | 4130000314 | 1 |
