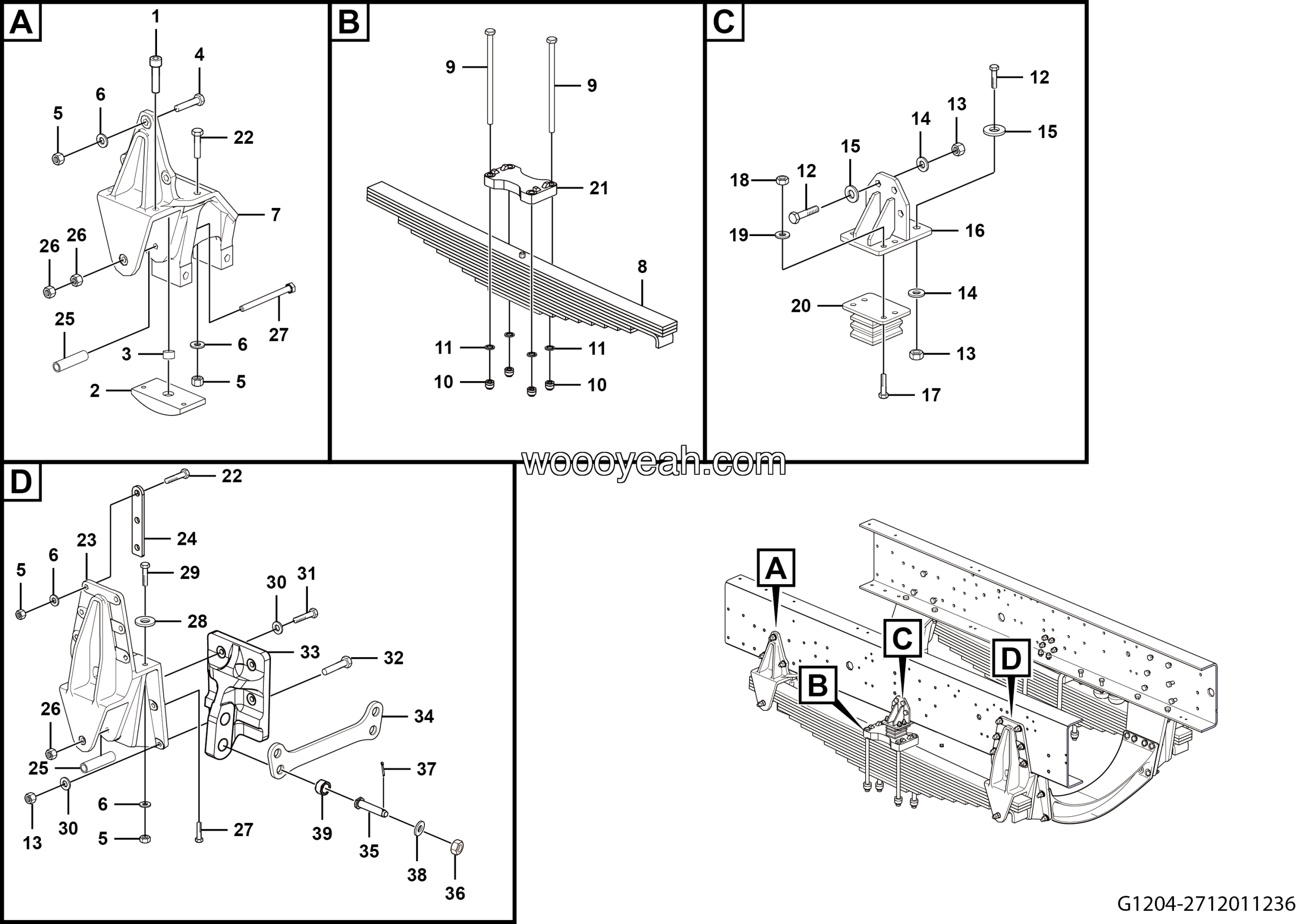

LGMG MT86D Mine Truck – Front leaf spring installation assy – G1204-2712011236
Category: Mine Truck > MT86D > M086DWA52
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Self-locking nut with the shoulder | 27120103611 | 8 |
| 2 | NORD-LOCK WASHER NL24SP | 4015010257 | 8 |
| 3 | Bolt GB5782-M16*65flZnyc-12.9-480 | 4011010556 | 12 |
| 4 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 24 |
| 5 | Washer GB1230-16EpZn-45 | 4015000001 | 12 |
| 6 | Big washer | 27120117661 | 12 |
| 7 | The limiting block supporting frame | 27120117611 | 2 |
| 8 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 8 |
| 9 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 10 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 11 | Screw GB70.1-M12*1.25*40EpZn-8.8 | 4014010080 | 8 |
| 12 | FR suspension stop block | 4190000677 | 2 |
| 13 | Spring pressing block | 27120115601 | 2 |
| 14 | Bolt GB5785-M18*1.5*80flZnyc-12.9-480 | 4011010499 | 16 |
| 15 | Front leaf sring rear support saddle | 27120115691 | 2 |
| 16 | Plate | 27120117791 | 4 |
| 17 | Bolt protection tube | 27120100211 | 4 |
| 18 | Nut GB6170-M16flZnyc-12-480 | 4013010254 | 8 |
| 19 | Bolt | 27120100221 | 4 |
| 20 | Big washer | 27120117501 | 4 |
| 21 | Bolt GB5785-M18*1.5*85flZnyc-12.9-480 | 4011010505 | 4 |
| 22 | Wearing piece | 27120114992 | 4 |
| 23 | Washer GB1230-16-45 | 4015010101 | 28 |
| 24 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 4 |
| 25 | Bolt GB5782-M16*80flZnyc-12.9-480 | 4011010614 | 12 |
| 26 | Second beam seat | 27120113671 | 2 |
| 27 | Second beam pole | 27120116602 | 1 |
| 28 | Pin | 27120117411 | 4 |
| 29 | Nut GB6178-M36EpZn-10 | 4013010114 | 4 |
| 30 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 4 |
| 31 | Washer GB97.1-36EpZn-300HV | 4015000108 | 4 |
| 32 | Sleeve | 27120113901 | 4 |
| 33 | Cushion block | 27120113681 | 4 |
| 34 | Bolt GB5785-M18*1.5*90flZnyc-12.9-480 | 4011010496 | 6 |
| 35 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 26 |
| 36 | Washer 18 | 27120105412 | 30 |
| 37 | Front leaf sring front support saddle1 | 27120115682 | 2 |
| 38 | Leaf of FR leaf spring | 4110002083 | 2 |
| 39 | Bolt | 27120117241 | 8 |
