Description

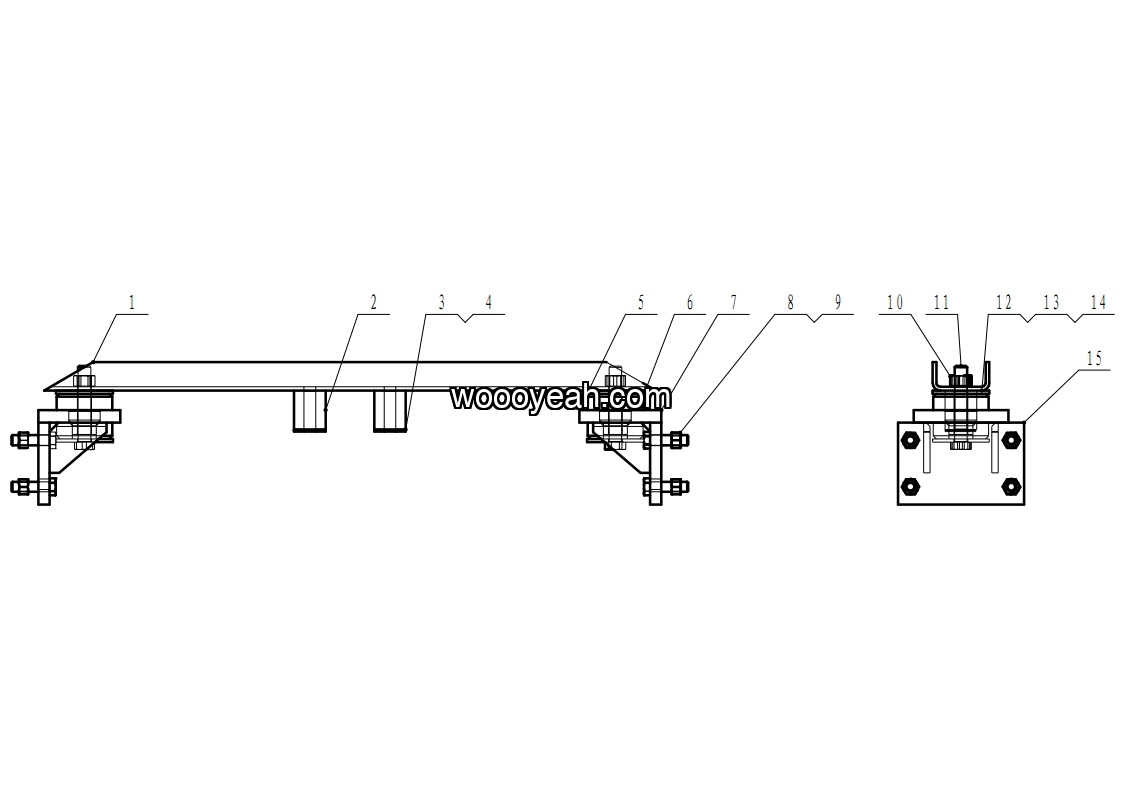

LGMG MT76 Mine Truck – Transmission support Assembly – C2-2705010283
Category: Mine Truck > MT76 > MT76
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | NUT GB6185-M20EpZn-8 | 4013010124 | 2 |
| 2 | BOLT GB5782-M20*120EpZn-8.8 | 4011000648 | 2 |
| 3 | Upper attaching plate | 27050102841 | 1 |
| 4 | plate | 27050102851 | 2 |
| 5 | plate | 27050102871 | 2 |
| 6 | plate | 27050102861 | 2 |
| 7 | Backing plate | 27050101071 | 4 |
| 8 | Absorber | 4110000101 | 2 |
| 9 | Transmission seat | 27050101411 | 2 |
| 10 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 8 |
| 11 | Bolt GB5782-M16*60EpZn-8.8 | 4011000068 | 8 |
