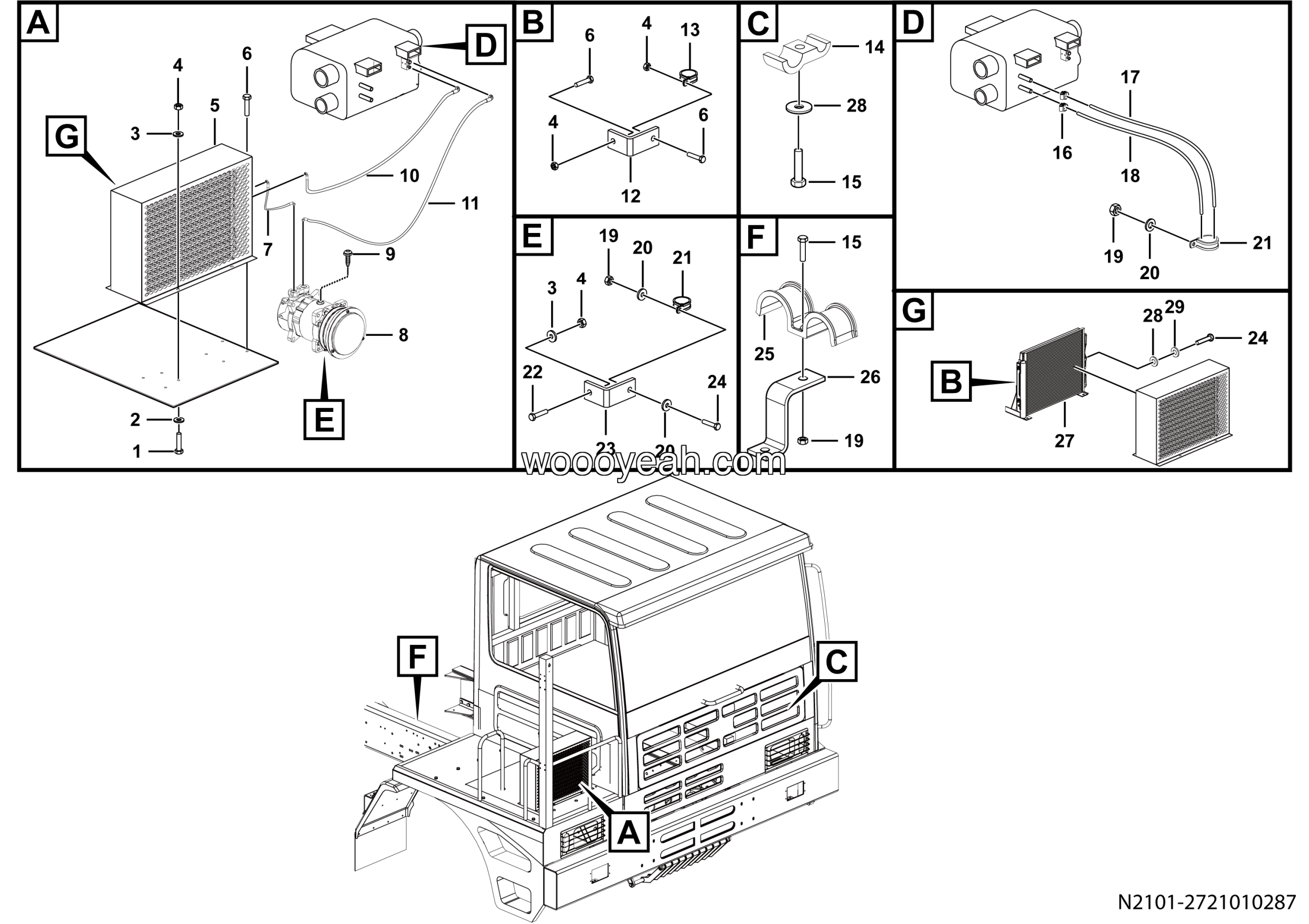

LGMG MT76 Mine Truck – Air conditioner assembly – N2101-2721010287
Category: Mine Truck > MT76 > M0760WAA0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe | 4190001711 | 1 |
| 2 | Pipe between compressor and vaporizer | 4190001866 | 1 |
| 3 | Pipe clamp, for fixing motor hose | 27150106111 | 1 |
| 4 | Plate | 27160104461 | 1 |
| 5 | Clamp | 4190001717 | 4 |
| 6 | Bolt GB5783-M6*35EpZn-8.8 | 4011000286 | 2 |
| 7 | Hose clamp JB8870-D32 | 4017000011 | 4 |
| 8 | Outlet pipe of heater | 27210103224 | 1 |
| 9 | Intlet pipe of heater | 27210103213 | 1 |
| 10 | Nut GB6170-M6EpZn-8 | 4013000028 | 4 |
| 11 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 12 | Washer GB96.1-6EpZn-300HV | 4015000198 | 4 |
| 13 | Double nipple clamp | 27210101701 | 3 |
| 14 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 1 |
| 15 | Bracket 1 | 27100103561 | 1 |
| 16 | Bolt GB5783-M6*30EpZn-8.8 | 4011000291 | 4 |
| 17 | Hose clamp 4-5 | 4190001801 | 1 |
| 18 | Pipeline support | 4190002164 | 1 |
| 19 | Condenser assy | 4190001491 | 1 |
| 20 | Washer GB93-6EpZn-65Mn | 4015000213 | 2 |
| 21 | Washer GB97.1-6EpZn-300HV | 4015000207 | 4 |
| 22 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 23 | Washer GB97.1-10EpZn-300HV | 4015000162 | 9 |
| 24 | Nut GB6170-M10EpZn-8 | 4013000007 | 11 |
| 25 | Shield assy | 4190001218 | 1 |
| 26 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 8 |
| 27 | Pipe between compressor and condenser | 4190001865 | 1 |
| 28 | Compressor assembly | 4190002283 | 1 |
| 29 | Screw GB70.1-M8*100EpZn-10.9 | 4011010418 | 4 |
