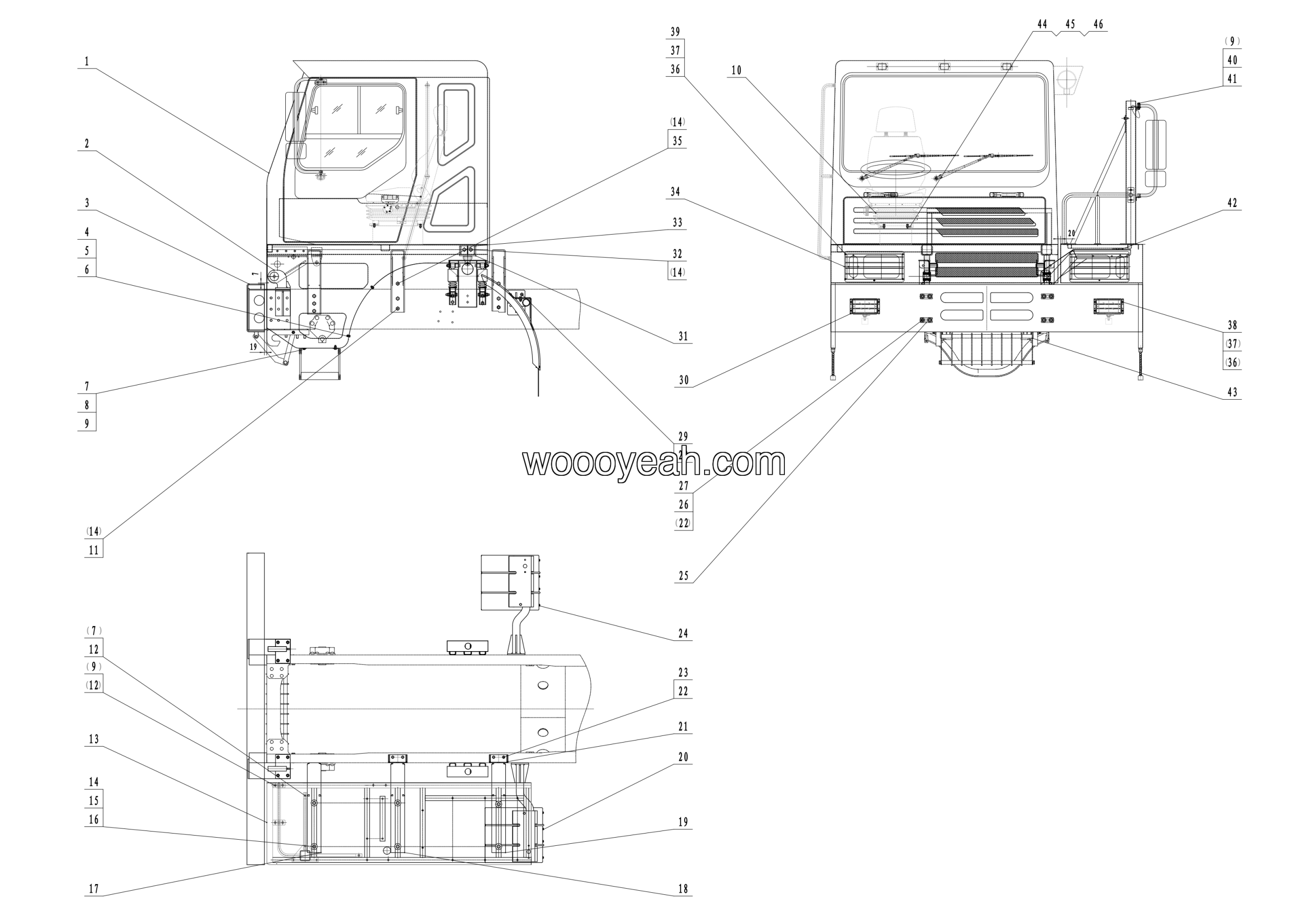

LGMG MT50 Mine Truck – Cab – L1-2713011450
Category: Mine Truck > MT50 > M0500HE20
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Seat | 27130114571 | 1 |
| 2 | Bolt GB5783-M16*45EpZn-8.8 | 4011000205 | 7 |
| 3 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 4 | Plate | 4190001376 | 1 |
| 5 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 13 |
| 6 | Bolt GB5782-M14*90EpZn-8.8 | 4011000420 | 6 |
| 7 | Plate | 27130111911 | 1 |
| 8 | Cab | 27130111941 | 1 |
| 9 | Cab | 27130111971 | 1 |
| 10 | Left fender assembly | 27130111691 | 1 |
| 11 | Cab | 4190001375 | 1 |
| 12 | Plate | 27130111991 | 2 |
| 13 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 12 |
| 14 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 15 | Right mudguard assembly | 27130111701 | 1 |
| 16 | Plate | 27130111661 | 4 |
| 17 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 8 |
| 18 | Washer GB96.1-12EpZn-300HV | 4015000186 | 16 |
| 19 | Bolt GB5783-M14*45EpZn-8.8 | 4011000203 | 6 |
| 20 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 12 |
| 21 | Fog light protecting cap | 27130102161 | 2 |
| 22 | Cab | 27130111861 | 1 |
| 23 | Cab | 27130112261 | 2 |
| 24 | Bolt GB5782-M16*120EpZn-8.8 | 4011000511 | 4 |
| 25 | Plate | 27130112291 | 4 |
| 26 | Cab | 27130111671 | 2 |
| 27 | Bolt GB5783-M16*35EpZn-8.8 | 4011000095 | 2 |
| 28 | Bolt GB16674.1-M5*25EpZn-8.8 | 4011000586 | 18 |
| 29 | Washer GB97.1-5EpZn-300HV | 4015000110 | 8 |
| 30 | Nut GB6185.1-M5EpZn-8 | 4013010116 | 8 |
| 31 | No longer used | 4013000118 | 10 |
| 32 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 33 | Cab | 27130111612 | 1 |
| 34 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 35 | Rubber mat | 27130103912 | 6 |
| 36 | Trim washer | 27130104411 | 2 |
| 37 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 38 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 39 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 40 | Washer GB96.1-14EpZn-300HV | 4015000188 | 12 |
| 41 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 8 |
| 42 | Washer GB96.1-8EpZn-300HV | 4015000256 | 16 |
| 43 | Nut GB6170-M8EpZn-8 | 4013000033 | 8 |
| 44 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 10 |
| 45 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 46 | Washer GB97.1-10EpZn-300HV | 4015000162 | 18 |
