Description

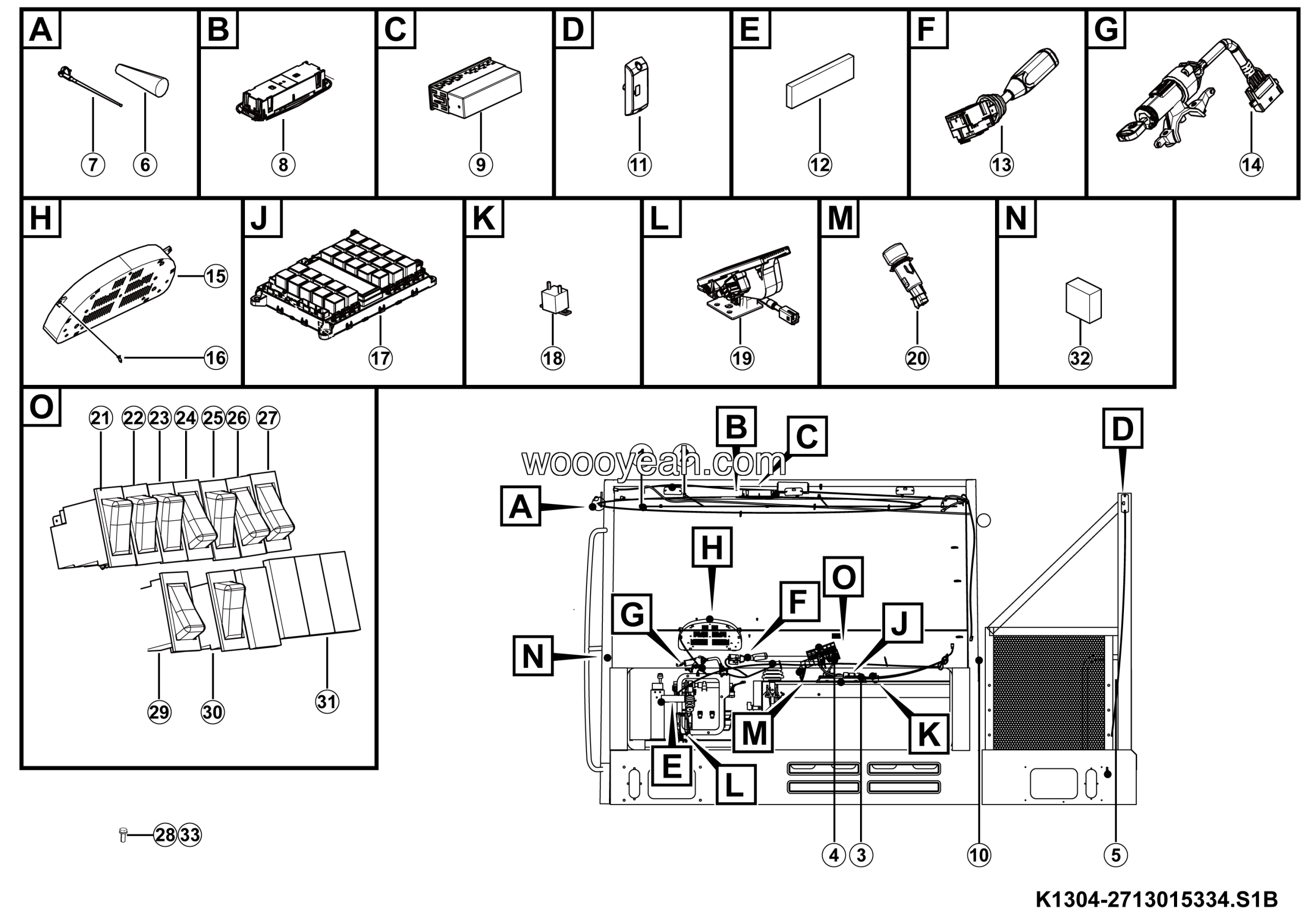

LGMG MT106H 2025 – Cab elec sys – K1304-2713015334.S1B
Category: 2025 > MT106H > M106HW3A0M707
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Side wiper sys | 4130000807 | 1 |
| 2 | Cab FR position light | 4130000954 | 4 |
| 3 | Integral wiper 37419000040 | 4130000949 | 1 |
| 4 | Combination switch CS-102621 | 4130001174 | 1 |
| 5 | Lgnition lock-81.46433.6009-1 | 4130001175 | 1 |
| 6 | LCD instrument panel 4660 | 4130704660 | 1 |
| 7 | Screw GB846-ST4.8*16-C-H | 4014000071 | 4 |
| 8 | Elec box KZH-24V-002A | 4130705742 | 1 |
| 9 | Contactor | 4130701341 | 1 |
| 10 | ELEK accelerator pedal 403269 | 4130701363 | 1 |
| 11 | Roof harness | 27130133011 | 1 |
| 12 | Socket 125000222 | 4130712755 | 1 |
| 13 | Work/position light rocker switch JK939C | 4130000318 | 1 |
| 14 | FR fog lamp rocker switch JK939C | 4130000314 | 1 |
| 15 | Central alarm rocker switch JK939C | 4130000320 | 1 |
| 16 | Main-beam headlamp rocker switch JK939C | 4130000331 | 1 |
| 17 | Cab RR work lamp rocker switch JK939C | 4130000342 | 1 |
| 18 | Work lamp rocker switch JK939C | 4130000319 | 1 |
| 19 | Rocker switch JK939C（Differential） | 4130000317 | 1 |
| 20 | Screw GB818-M6*20EpZn-4.8 | 4014000040 | 9 |
| 21 | Wiper washing rocker switch JK939C | 4130000819 | 1 |
| 22 | Head cap harness | 27130118101 | 1 |
| 23 | Side window wiper rocker switch JK939C | 4130000341 | 1 |
| 24 | Cover plate | 4130000328 | 10 |
| 25 | Door lamp switch LG751 | 4130000323 | 1 |
| 26 | Washer GB97.1-6EpZn-300HV | 4015000207 | 9 |
| 27 | Cab harness | 27130153611 | 1 |
| 28 | Become warped plate switch wiring harness | 27130135361 | 1 |
| 29 | Platform harness | 27200106091 | 1 |
| 30 | Horn TX1033AR29 | 4130000299 | 2 |
| 31 | Antenna QT1290B259 | 4130000300 | 1 |
| 32 | Indoor ceiling lamp LG751 | 4130000312 | 1 |
| 33 | Bluetooth radio SL-630 | 4130705152 | 1 |
