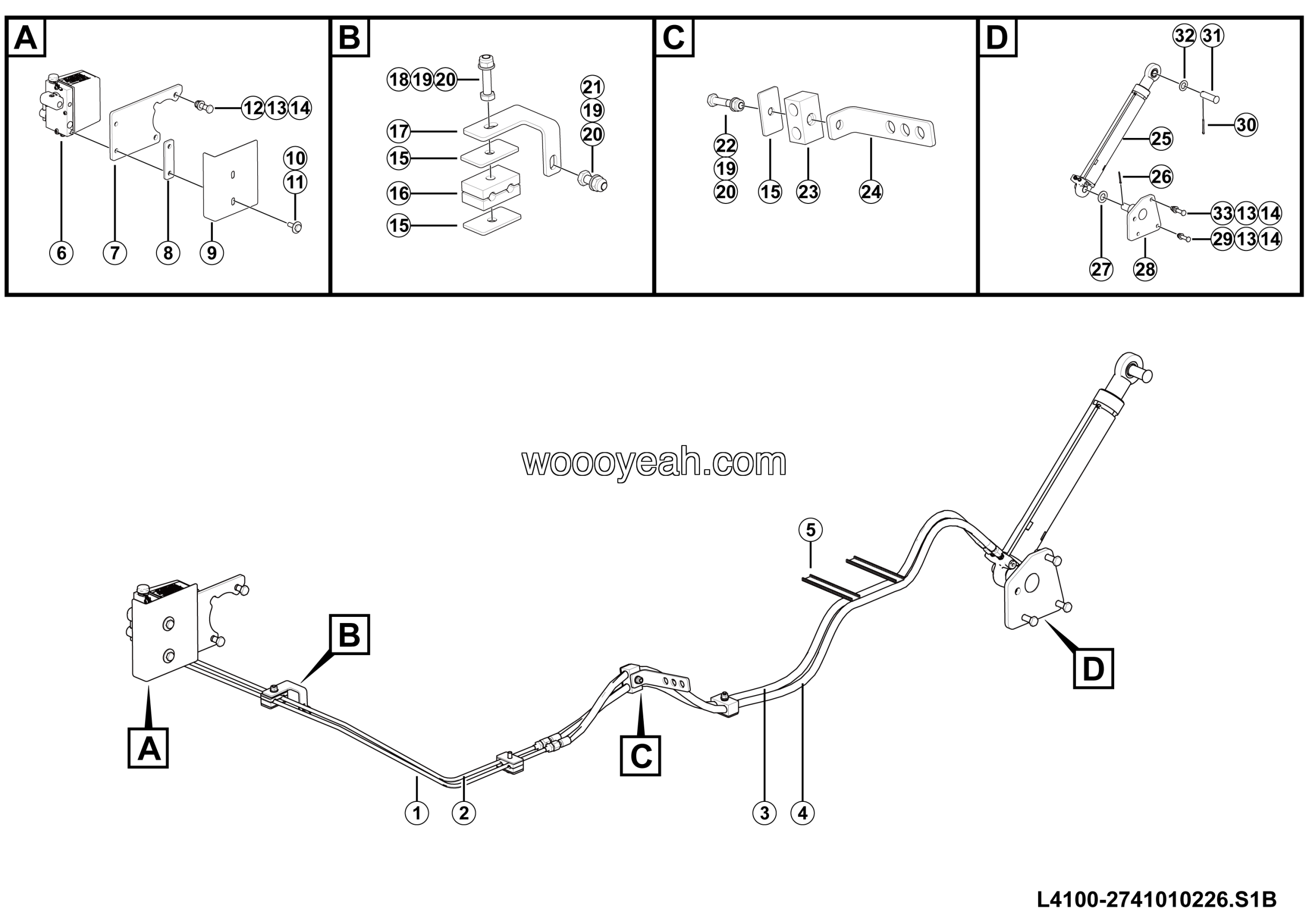

LGMG Off-Highway Dump Truck 2022 – Cab fliping hydraulic assy – L4100-2741010226
Category: 2022 > Off-Highway Dump Truck > MT96L > M096LW3A0M141
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M8*45EpZn-8.8 | 4011000298 | 2 |
| 2 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 3 | Washer GB97.1-8EpZn-300HV | 4015000072 | 5 |
| 4 | Hand pump | 4120001103 | 1 |
| 5 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 1 |
| 6 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 7 | Plate | 27160121272 | 1 |
| 8 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 9 | String casing1 | 27140121691 | 2 |
| 10 | Bolt GB5783-M12*55EpZn-8.8 | 4011000254 | 2 |
| 11 | Pin GB882-B22*75EpZn-35 | 4016010114 | 1 |
| 12 | Bolt GB5782-M12*45EpZn-8.8 | 4011000498 | 2 |
| 13 | Plate | 27410102151 | 1 |
| 14 | Pipe | 27160121301 | 1 |
| 15 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 5 |
| 16 | Bolt GB5782-M12*60EpZn-8.8 | 4011000260 | 1 |
| 17 | Pipe | 27410102191 | 2 |
| 18 | Plate | 27410101502 | 4 |
| 19 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 4 |
| 20 | Pipe | 27160121291 | 1 |
| 21 | Washer GB96.1-10EpZn-300HV | 4015000197 | 2 |
| 22 | Washer GB97.1-22EpZn-300HV | 4015000184 | 1 |
| 23 | Plate | 27410102221 | 1 |
| 24 | Plate | 27160121282 | 1 |
| 25 | Pin GB91-5*45EpZn-Q235A | 4016010004 | 1 |
| 26 | Cab overturning cylinder | 4120001145 | 1 |
| 27 | Carrier of cab turning cylinder | 27410100071 | 1 |
| 28 | Washer GB97.1-24EpZn-300HV | 4015000167 | 1 |
| 29 | Pin GB91-4*45EpZn-Q235A | 4016000057 | 1 |
| 30 | Twin tube clamp | 4120002035 | 2 |
| 31 | Cover plate | 27410100861 | 6 |
