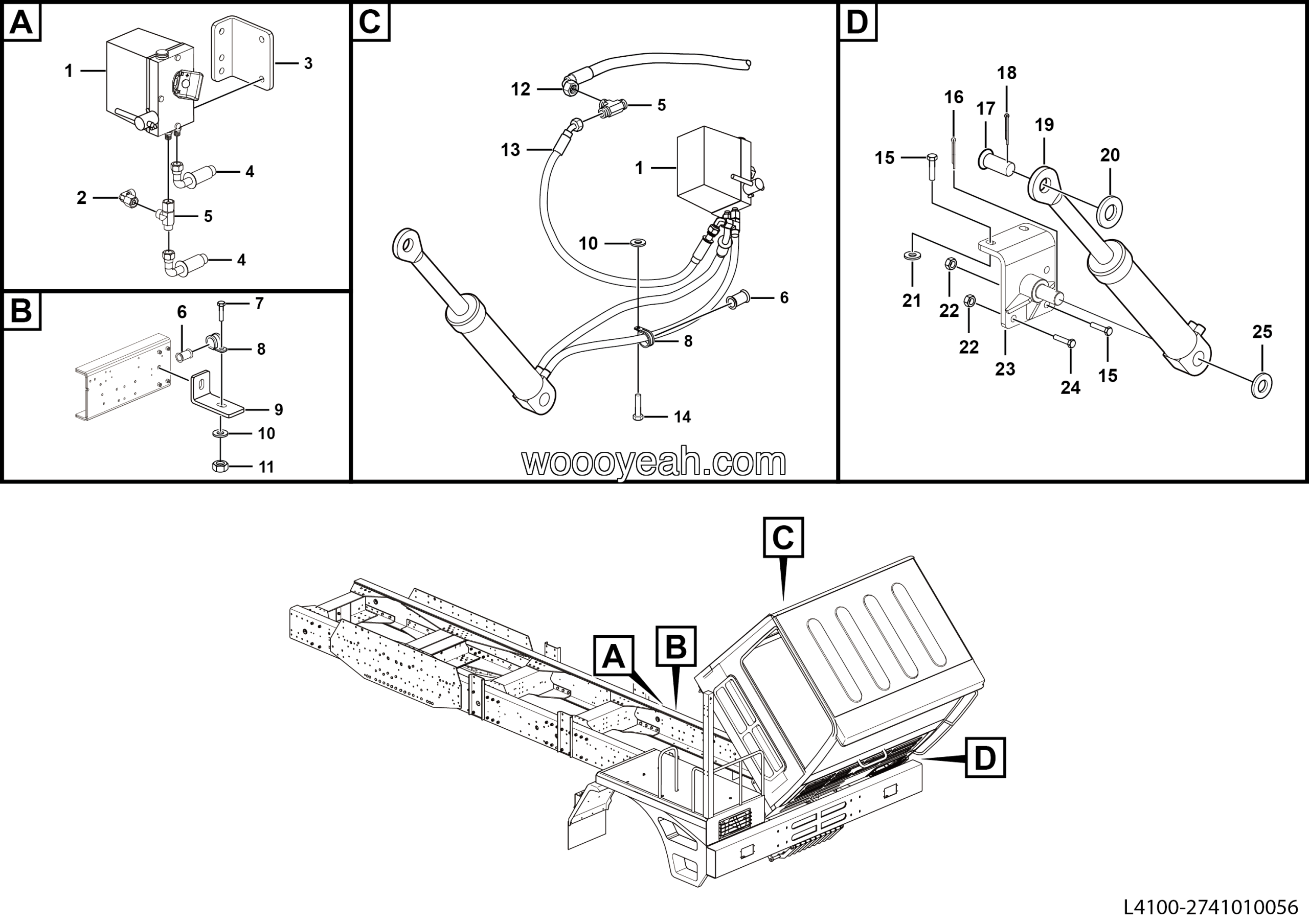

LGMG MS25 Mine Truck – Cab fliping hydraulic assy – L4100-2741010056
Category: Mine Truck > MS25 > MS250WA21
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 2 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 3 | Hose | 27130112421 | 1 |
| 4 | Hose | 27410100571 | 1 |
| 5 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 3 |
| 6 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 4 |
| 7 | Pin GB91-4*45EpZn-Q235A | 4016000057 | 1 |
| 8 | Pin GB882-B22*75EpZn-35 | 4016010114 | 1 |
| 9 | Pin GB91-5*45EpZn-Q235A | 4016010004 | 1 |
| 10 | Cab overturning cylinder | 4120001145 | 1 |
| 11 | Hand pump | 4120001103 | 1 |
| 12 | Washer GB97.1-22EpZn-300HV | 4015000184 | 1 |
| 13 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 14 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 5 |
| 15 | Bracket | 27130114401 | 1 |
| 16 | Bolt GB5783-M12*50EpZn-8.8 | 4011000092 | 1 |
| 17 | Washer GB97.1-24EpZn-300HV | 4015000167 | 1 |
| 18 | Combination joint LGB143-01205 | 4041010126 | 1 |
| 19 | Plate | 27130115181 | 1 |
| 20 | Hose | 27410100491 | 2 |
| 21 | Tee joint CC-12 | 4190001064 | 2 |
| 22 | Cushion sleeve LGB123-0530 | 4041001392 | 3 |
| 23 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 24 | Pipe clamp LGB167-0530 | 4041001269 | 3 |
| 25 | Bracket | 27410100501 | 1 |
