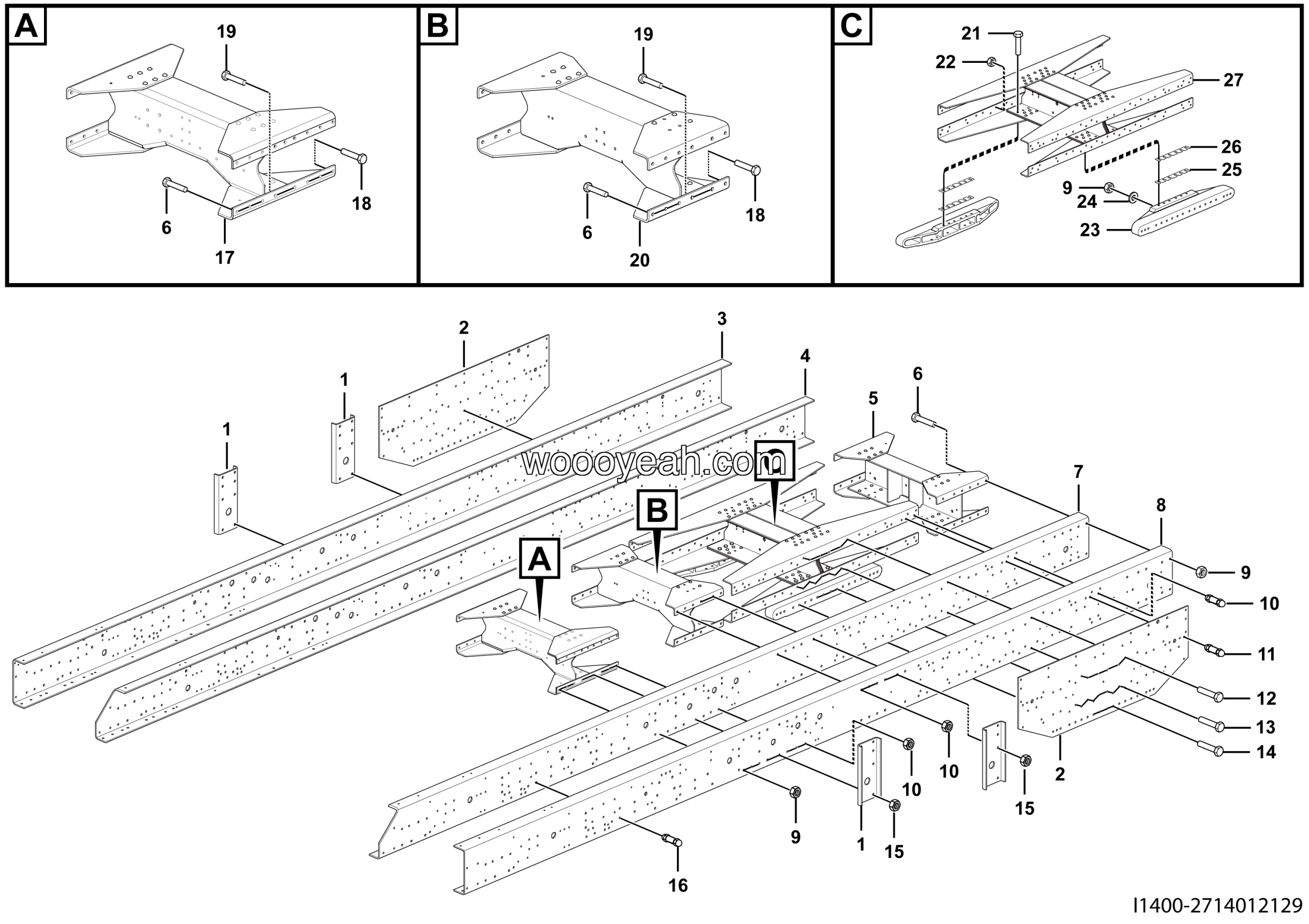

LGMG Mine Truck Mine Truck – Frame assy – I1400-2714012129
Category: Mine Truck > Mine Truck > M0860WA20
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rivet GB867-14*52 | 4019000115 | 22 |
| 2 | Rivet GB867-14*65 | 4019000120 | 44 |
| 3 | BOLT GB5782-M14*50-12.9 | 4011010565 | 8 |
| 4 | Bolt GB5782-M14*60-12.9 | 4011010222 | 20 |
| 5 | Bolt GB5785-M16*1.5*55-12.9 | 4011010388 | 36 |
| 6 | NUT GB6185-M18*1.5EpZn-12 | 4013010252 | 16 |
| 7 | RIVET GB867-14*42 | 4019000110 | 2 |
| 8 | Beam | 27140120372 | 1 |
| 9 | Bolt GB5785-M16*1.5*60-12.9 | 4011010389 | 4 |
| 10 | BOLT GB5785-M18*1.5*65-12.9 | 4011010542 | 16 |
| 11 | Superstructure connect plate | 27140104751 | 2 |
| 12 | Beam assembly | 27140113101 | 1 |
| 13 | BOLT GB5785-M16*1.5*75-12.9 | 4011010391 | 12 |
| 14 | NUT GB6185-M14-12 | 4013010175 | 28 |
| 15 | Middle seat | 27140104832 | 2 |
| 16 | Washer GB1230-16EpZn-45 | 4015000001 | 8 |
| 17 | Trimmed gasket | 27140115341 | 2 |
| 18 | Trimmed gasket | 27140115331 | 2 |
| 19 | Balance shaft reinforce beam assembly | 27140104764 | 1 |
| 20 | Plate | 27140117093 | 2 |
| 21 | Right carling | 27140121333 | 1 |
| 22 | Right reinforce carling | 27140121323 | 1 |
| 23 | Tail carling assembly | 27140111651 | 1 |
| 24 | Bolt GB5785-M16*1.5*50-12.9 | 4011010390 | 37 |
| 25 | Left reinforce carling | 27140121313 | 1 |
| 26 | Left carling | 27140121303 | 1 |
| 27 | Nut GB6185.2-M16*1.5-12 | 4013010222 | 89 |
