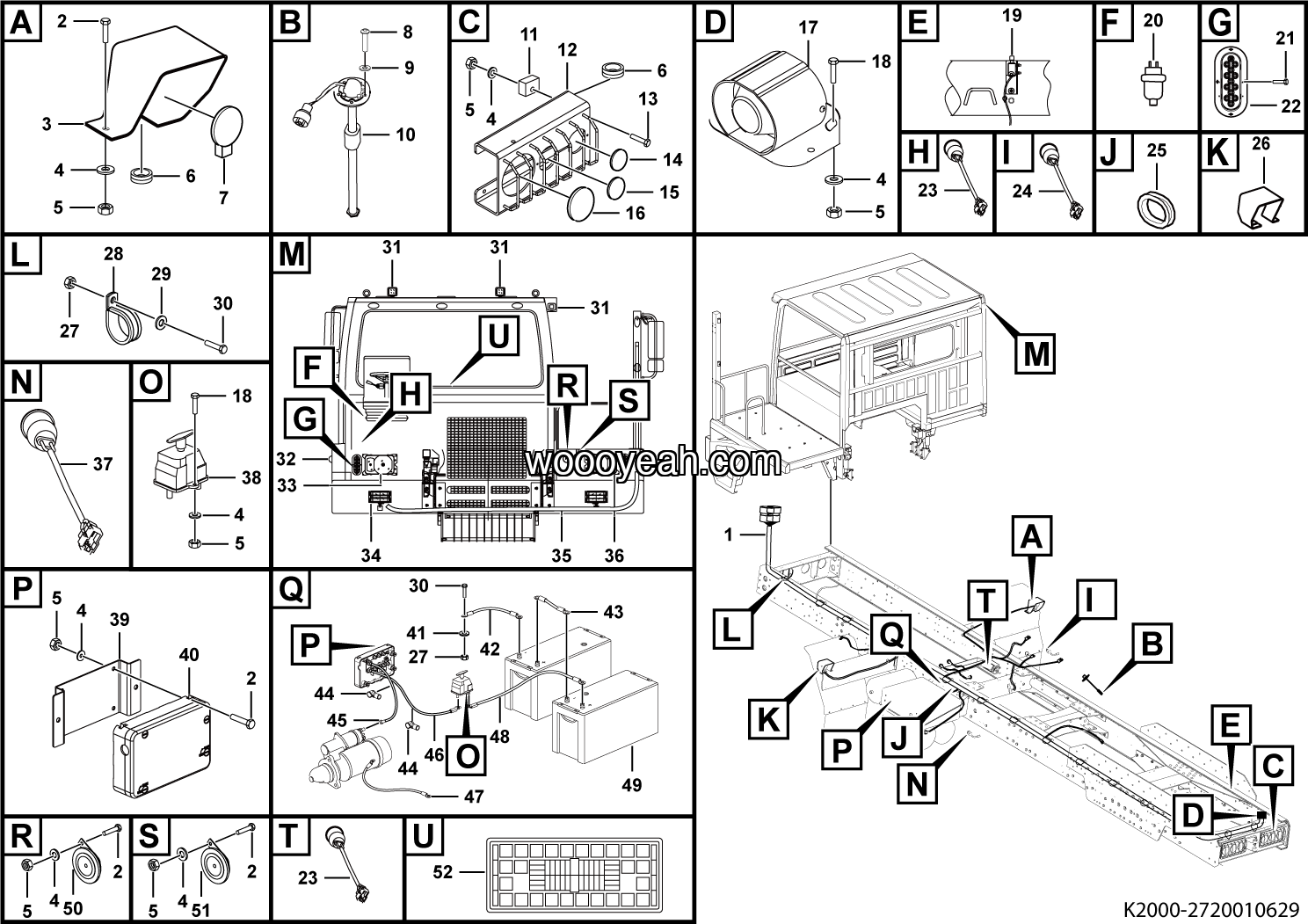

LGMG Mine Truck Mine Truck – Chassis electrical system – K2000-2720010629
Category: Mine Truck > Mine Truck > M0860WEA0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Single rod fuel sensor | 4130000616 | 1 |
| 2 | Rubber insert | 27200104361 | 2 |
| 3 | Frame | 27200104441 | 2 |
| 4 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 8 |
| 5 | Direction-indicator lamp HY-088Y-5LED | 4130000908 | 2 |
| 6 | Brake & position light HY-088Y-5-1LED | 4130000909 | 2 |
| 7 | LED Floodlamp SM6272 | 4130000610 | 2 |
| 8 | Reverse buzzer DDB101-LG | 4130000294 | 1 |
| 9 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 4 |
| 10 | Cargo lifting switch XJK-010-09 | 4130000641 | 1 |
| 11 | Frame wire | 27200106301 | 1 |
| 12 | ELEK pressure sensor LG9130773001 | 4130000420 | 2 |
| 13 | Bolt GB16674.1-M5*16EpZn-8.8 | 4011010372 | 8 |
| 14 | LED FR steering lamp | 4130000252 | 2 |
| 15 | Stop lamp switch YK209KLA | 4130000492 | 2 |
| 16 | Parking pressure switch 0.55MPa | 4130000006 | 1 |
| 17 | String casing | 27140105021 | 1 |
| 18 | Left lamp guard | 27200102311 | 1 |
| 19 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 20 | Pipe clamp | 26370001941 | 1 |
| 21 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 22 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 8 |
| 23 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 24 | RR working lamp 1GA 996.506-52 | 4130000576 | 3 |
| 25 | Side steering lamp 43-3001A | 4130000343 | 2 |
| 26 | FR headlamp（RH） | 4130000250 | 1 |
| 27 | FR fog lamp | 4130000664 | 2 |
| 28 | Front fog lamp wire | 27200105381 | 1 |
| 29 | FR headlamp（LH） | 4130000249 | 1 |
| 30 | Electromagnetic valve air pressure switch 0.3MPa | 4130000007 | 1 |
| 31 | Power switch 37030020010 | 4130000307 | 1 |
| 32 | Frame of power supply | 27200105961 | 1 |
| 33 | Right lamp guard | 27200102321 | 1 |
| 34 | High current splitter60502 assy | 4130000929 | 1 |
| 35 | Washer GB861.1-10EpZn-65Mn | 4015000195 | 1 |
| 36 | Wire | 27200105051 | 1 |
| 37 | Wire | 27200105061 | 1 |
| 38 | Red battery cable sheath | 26370002451 | 2 |
| 39 | Power cord p70*2500 | 27200105971 | 1 |
| 40 | Power cord p70*1500 | 27200105981 | 1 |
| 41 | Wire | 27200105131 | 1 |
| 42 | Wire | 27200105041 | 1 |
| 43 | Battery 6-QW-120B | 4130000059 | 2 |
| 44 | Washer GB97.1-8EpZn-300HV | 4015000072 | 22 |
| 45 | Monophonic disc wooFer（treble） | 4130000907 | 1 |
| 46 | Monophonic disc woofer | 4130000906 | 1 |
| 47 | Control box identifier | 27200105941 | 1 |
| 48 | Nut GB6170-M8EpZn-8 | 4013000033 | 18 |
| 49 | Guard | 27140105031 | 3 |
| 50 | LEDWork lamp SM6502 | 4130000659 | 2 |
| 51 | Screw GB818-M5*10EpZn-4.8 | 4014000023 | 5 |
| 52 | Washer GB97.1-5EpZn-300HV | 4015000110 | 5 |
