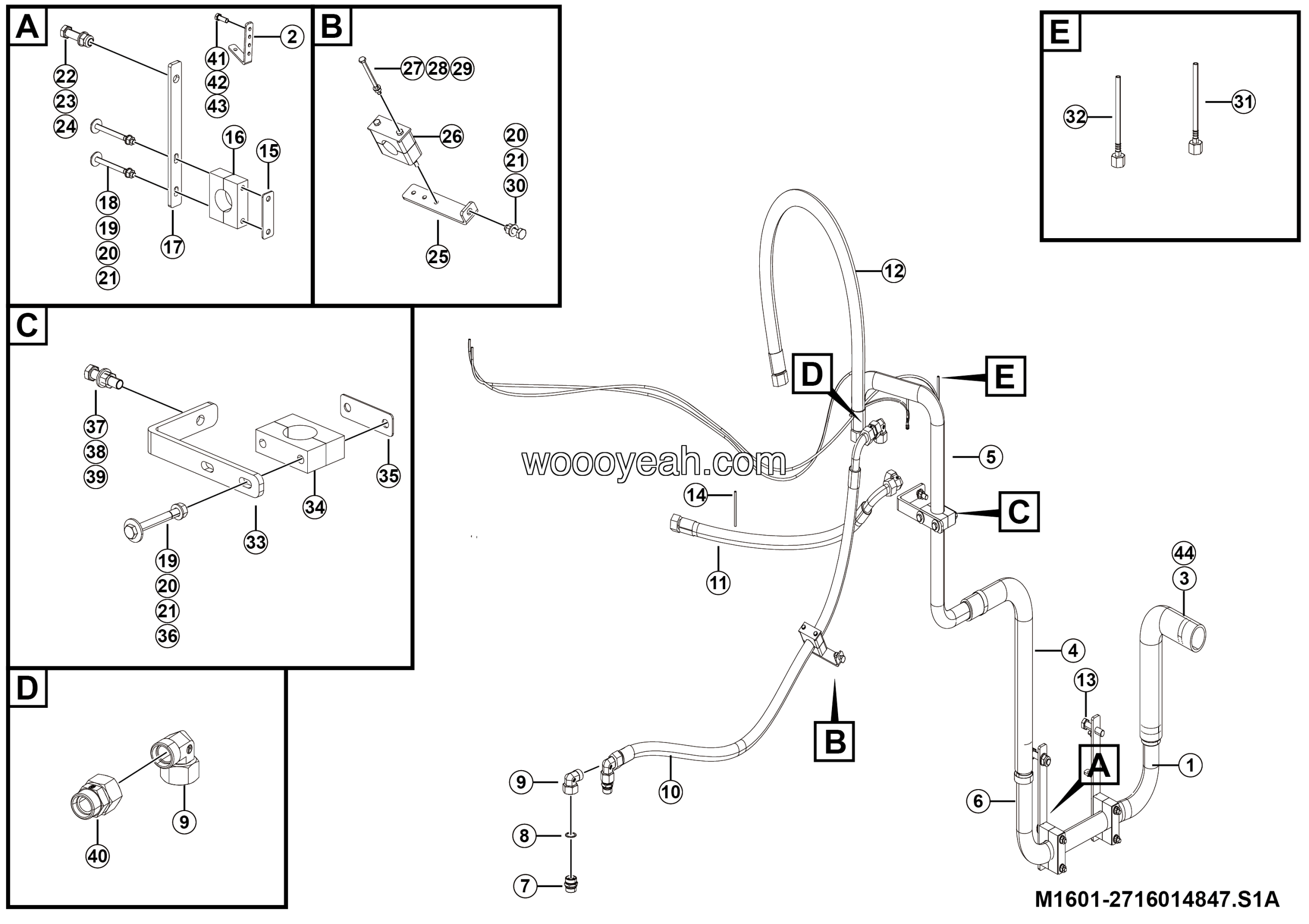

LGMG CMT66A 2025 – Hyd hoist accessory assy – M1601-2716014847.S1A
Category: 2025 > CMT66A > C066AW3E0A013
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose f471tccacf222212-1410 | 4120717992 | 1 |
| 2 | Hose f351tccacf222212-740 | 4120717985 | 1 |
| 3 | HOSE ASSEMBLY | 2716010857-002 | 1 |
| 4 | Bolt GB5786-M16*1.5*70flZnyc-12.9-480 | 4011011419 | 1 |
| 5 | Air hose 2500 | 27160137851 | 1 |
| 6 | Cover plate 100*30*3 | 27160144221 | 2 |
| 7 | Clamp 48 | 27160144211 | 4 |
| 8 | Bracket 320*30*6 | 27160147561 | 2 |
| 9 | Bolt GB5782-M10*110EpZn-8.8 | 4011000797 | 4 |
| 10 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 11 | Pipe wldmt 03 | 27160148521 | 1 |
| 12 | Washer GB97.1-10EpZn-300HV | 4015000162 | 7 |
| 13 | Nut GB6170-M10EpZn-8 | 4013000007 | 7 |
| 14 | Bolt GB5783-M16*65flZnyc-12.9-480 | 4011010552 | 1 |
| 15 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 1 |
| 16 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 1 |
| 17 | Bracket 150*30*30 | 27160147551 | 1 |
| 18 | Tube clamp TLPG16-532 | 4120710496 | 1 |
| 19 | Bolt GB5782-M6*80EpZn-8.8 | 4011011127 | 2 |
| 20 | Washer GB97.1-6EpZn-300HV | 4015000207 | 2 |
| 21 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 22 | Plate | 27100118691 | 1 |
| 23 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 24 | Pipe | 27160113241 | 1 |
| 25 | Air hose 2300 | 27160137871 | 1 |
| 26 | Bracket 218*30*130 | 27160147481 | 1 |
| 27 | Clamp 42 | 27160144371 | 2 |
| 28 | Cover plate 90*30*2 | 27160144381 | 1 |
| 29 | Bolt GB5782-M10*90EpZn-8.8 | 4011000053 | 2 |
| 30 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 1 |
| 31 | Washer GB97.1-12EpZn-300HV | 4015000168 | 1 |
| 32 | Nut GB6170-M12EpZn-8 | 4013000011 | 1 |
| 33 | Oil return hose 56*6 | 27160148501 | 1 |
| 34 | Joint DA22LOMDCF | 4120710847 | 1 |
| 35 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 1 |
| 36 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
| 37 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 38 | Butterfly spring clamp φ51-φ73 | 4190708162 | 2 |
| 39 | Oil return hose 44*5 | 27160148491 | 1 |
| 40 | Pipe wldmt 02 | 27160148511 | 1 |
| 41 | Butterfly spring clamp φ45-φ67 | 4190708161 | 2 |
| 42 | Straight joint LGB120-03028 | 4041000188 | 1 |
| 43 | O-ring LGB168-12331 | 4041000779 | 1 |
| 44 | Combination joint LGB143-03019 | 4041001262 | 3 |
