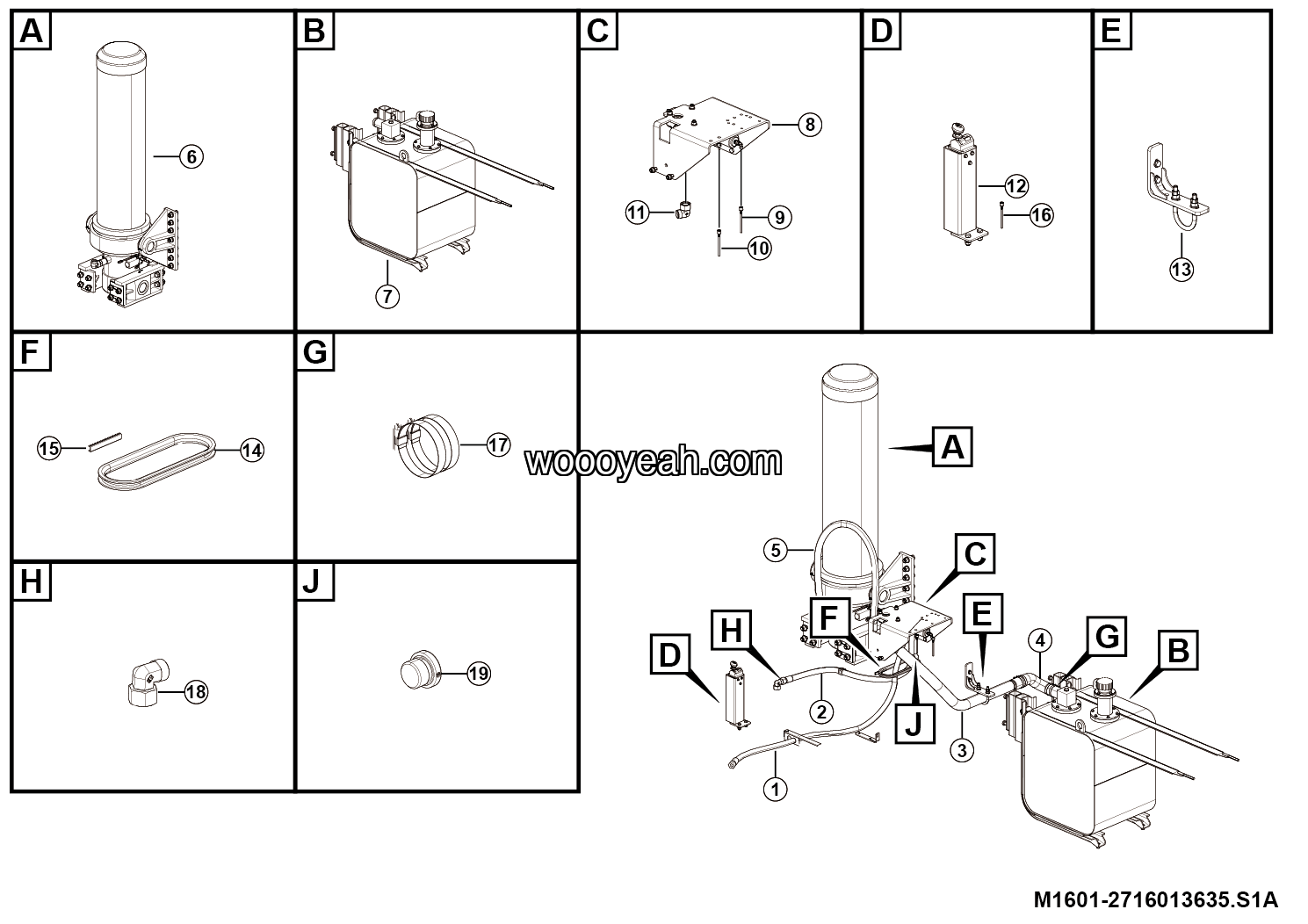

LGMG CMT106H 2025 – Hydraulic hoist assy – M1601-2716013635.S1A
Category: 2025 > CMT106H > C106HW3E0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe | 27160113241 | 1 |
| 2 | JOINT LGB143-03625 | 4041001211 | 1 |
| 3 | Plate | 27160127751 | 1 |
| 4 | Pipe fixing bracket assy | 27160136301 | 1 |
| 5 | PIPE | 27400104391 | 1 |
| 6 | Guard | 27160106272 | 1 |
| 7 | Pipe | 27160115692 | 1 |
| 8 | Hose clamp JB8870-D70 | 4017000017 | 4 |
| 9 | Combination joint LGB143-03019 | 4041001262 | 1 |
| 10 | Plug 4MN-18WD | 4120703163 | 1 |
| 11 | Hose F351TCCACA222212-1850 | 4120712976-002 | 1 |
| 12 | Hose F351TCCACA222212-1160 | 4120713059 | 1 |
| 13 | Oil return pipe weldment | 27160136381 | 1 |
| 14 | Oil return hose | 27160136361 | 1 |
| 15 | HOSE | 2716011254-003 | 1 |
| 16 | Asm-196 supet oil cylinder | 27160130201 | 1 |
| 17 | Hydraulic oil tank installation | 27160136371 | 1 |
| 18 | Mounting gp-lift valve | 27160132081 | 1 |
| 19 | Pipe | 27160113252 | 1 |
