Description

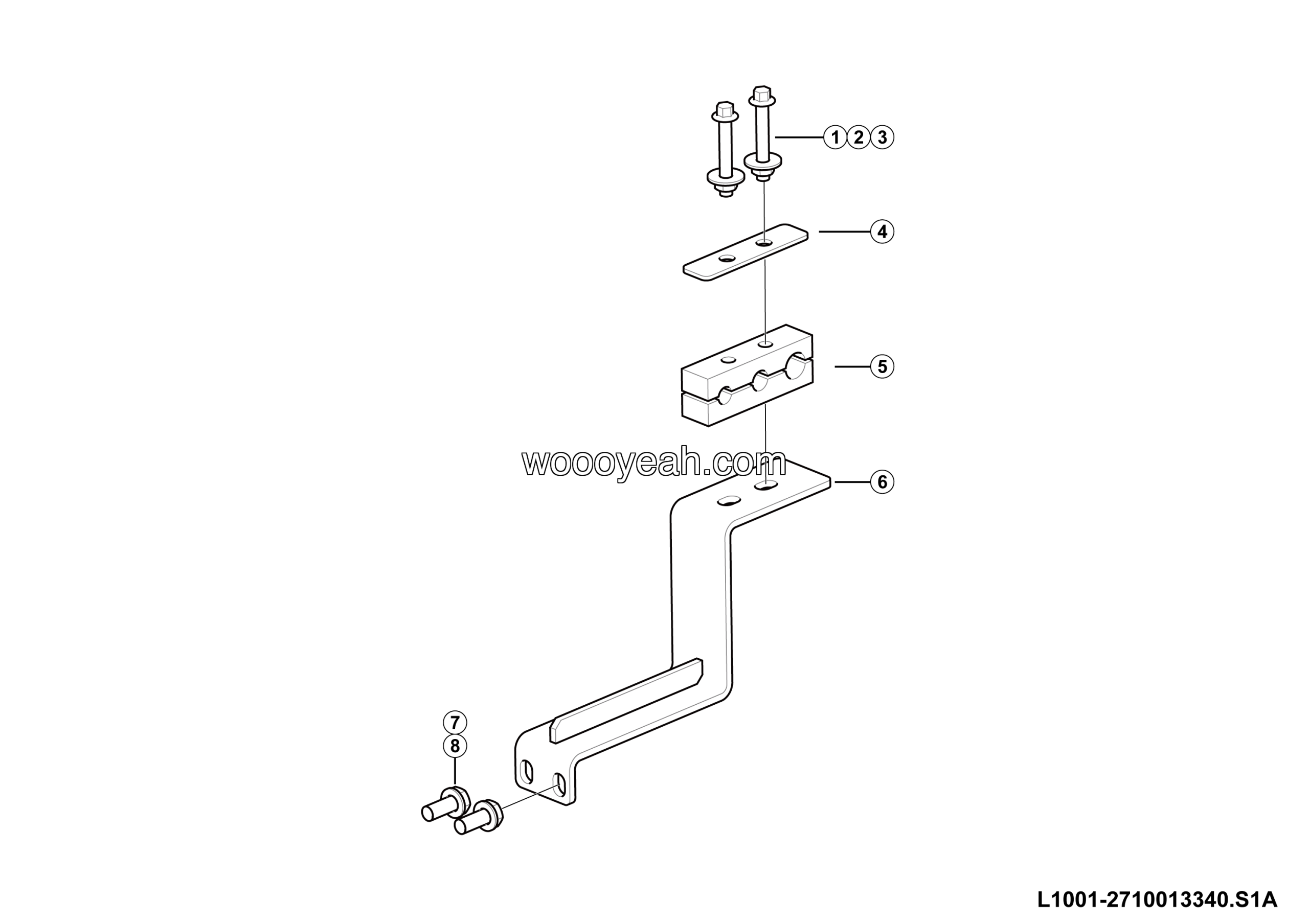

LGMG AT40 2025 – Bracket assy 02 – L1001-2710013340.S1A
Category: 2025 > AT40 > A0400W3M0A201
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB16674.1-M8*55EpZn-8.8 | 4011000300 | 2 |
| 2 | Washer GB96.1-8EpZn-300HV | 4015000256 | 2 |
| 3 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 4 | Plate 96*24*5 | 27100133441 | 1 |
| 5 | Triple-pipe clamp 12-14-18 | 27100133451 | 1 |
| 6 | Bracket wldmt 01 | 27100133411 | 1 |
| 7 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
