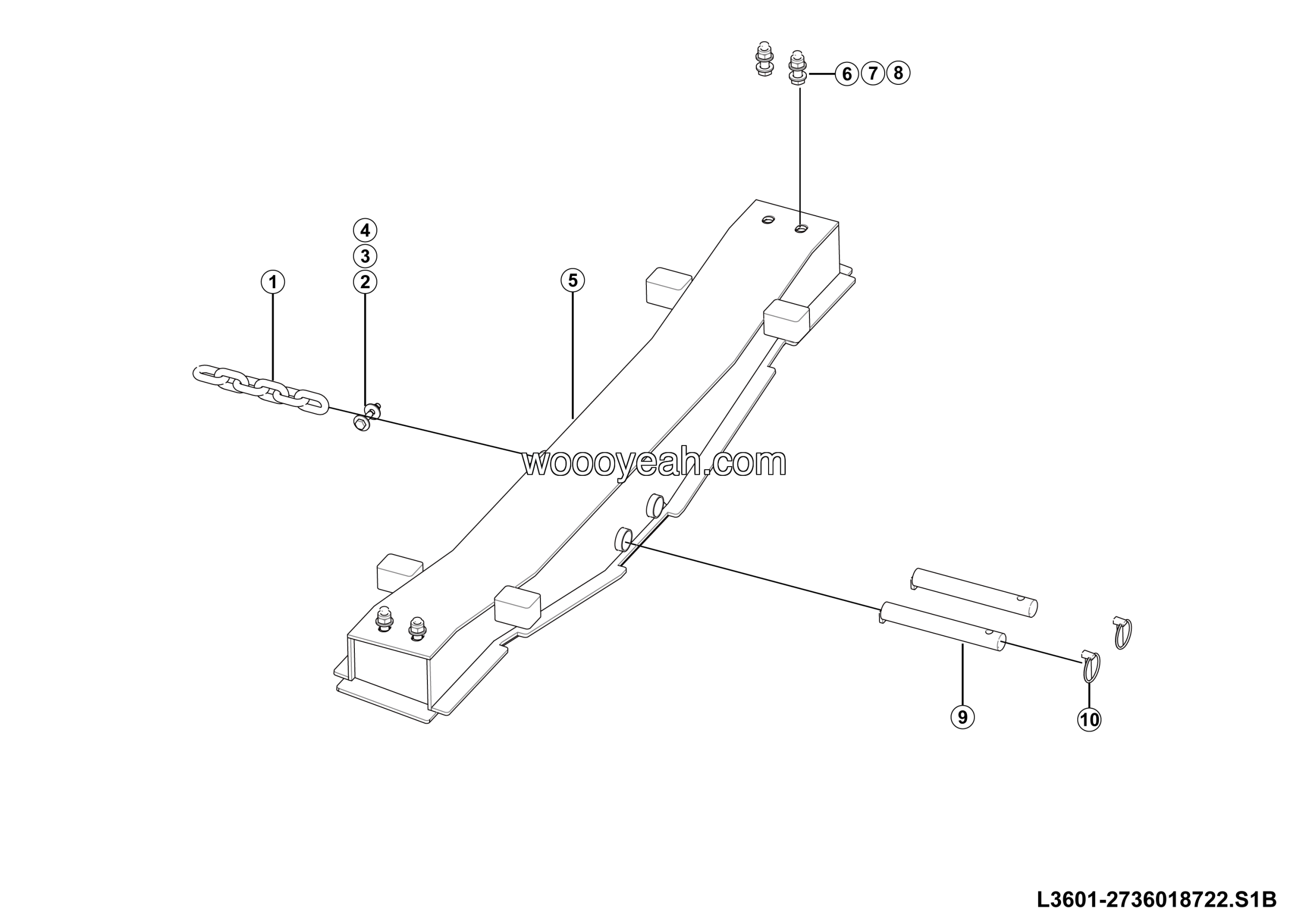

LGMG AT40 2025 – Bottom guard plate front support beam assy – L3601-2736018722.S1B
Category: 2025 > AT40 > A0400W3M0A104
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pin din11023-8epzn-40 | 4016010274 | 2 |
| 2 | Phi 10.5 chain-6 buckle | 27360187361 | 1 |
| 3 | Bolt GB5782-M8*50flZnyc-8.8-480 | 4011010736 | 1 |
| 4 | Washer GB96.1-8flZnyc-300HV-480 | 4015010289 | 2 |
| 5 | Nut GB6185.1-M8flZnyc-8-480 | 4013010314 | 1 |
| 6 | Wldmt of bottom shield front support beam | 27360187232 | 1 |
| 7 | Bolt GB5783-M12*40flZnyc-10.9-480 | 4011010882 | 4 |
| 8 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 8 |
| 9 | Nut GB6185.1-M12flZnyc-10-480 | 4013010379 | 4 |
| 10 | Bottom guard rear support beam pin joint | 27360187331 | 2 |
