Home→Fuel – A0201-2702010272
Description
Fuel – A0201-2702010272

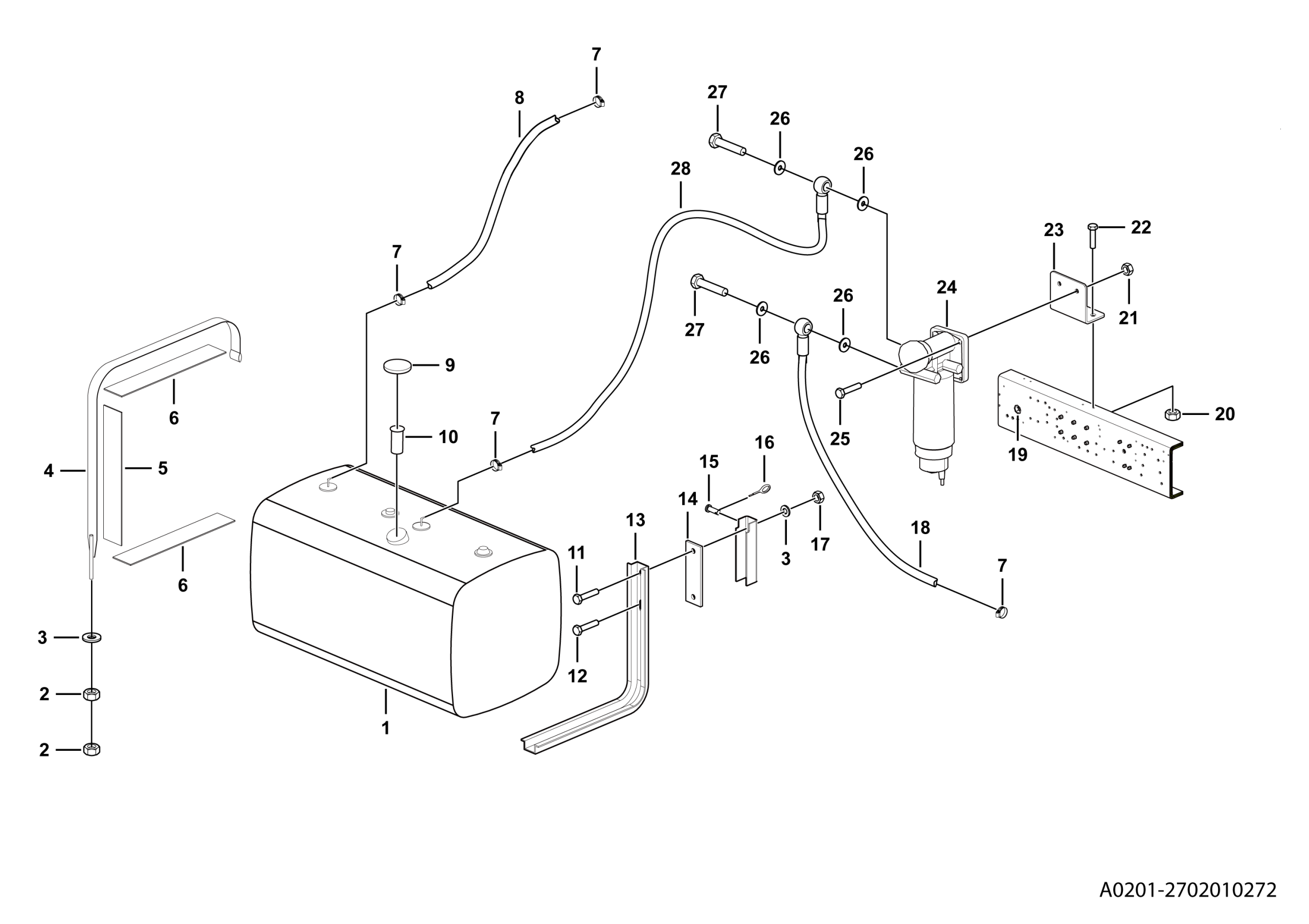

Parts List:
| No. |
Part Name |
Part Number |
Qty |
| 1 |
Fuel sieve |
4110000046 |
1 |
| 2 |
Bolt GB5783-M16*70flZnyc-12.9-480 |
4011010569 |
2 |
| 3 |
Bolt GB5783-M16*60flZnyc-12.9-480 |
4011010570 |
4 |
| 4 |
Fuel tank bracket assy |
4110000118 |
3 |
| 5 |
Fixed plate |
27020101021 |
3 |
| 6 |
Pin |
4110000120 |
3 |
| 7 |
Pin GB91-3.2*22EpZn-Q235A |
4016000183 |
3 |
| 8 |
Nut GB6185.1-M16flZnyc-12-480 |
4013010251 |
6 |
| 9 |
Fuel pipe iii |
27020102642 |
1 |
| 10 |
String casing |
27140105021 |
2 |
| 11 |
Fuel tank body 530L |
4110000796 |
1 |
| 12 |
Nut GB6185.1-M10EpZn-8 |
4013010119 |
2 |
| 13 |
Nut GB6185.1-M12EpZn-8 |
4013010120 |
2 |
| 14 |
Bolt GB5783-M10*45EpZn-8.8 |
4011000514 |
2 |
| 15 |
Plate |
27010110491 |
1 |
| 16 |
Fuel filter 1000444742 |
4110001100 |
1 |
| 17 |
Bolt GB16674.1-M12*45EpZn-8.8 |
4011000467 |
2 |
| 18 |
Washer JB1002-16-T2 |
4015000120 |
5 |
| 19 |
Bolt JB999-M16*1.5*35EpZn-35 |
4011000318 |
2 |
| 20 |
Fuel pipe i |
27020102621 |
1 |
| 21 |
Nut GB6170-M16EpZn-8 |
4013000016 |
6 |
| 22 |
Washer GB97.1-16EpZn-300HV |
4015000181 |
9 |
| 23 |
Cable tie assy |
4110000119 |
3 |
| 24 |
Flap |
4110000121 |
3 |
| 25 |
Flap |
4110000122 |
6 |
| 26 |
Hose clamp JB8870-D20 |
4017000010 |
4 |
| 27 |
Fuel pipe ii |
27020102631 |
1 |
| 28 |
Aluminium oil box cover |
4049010004 |
1 |
↑
