Description

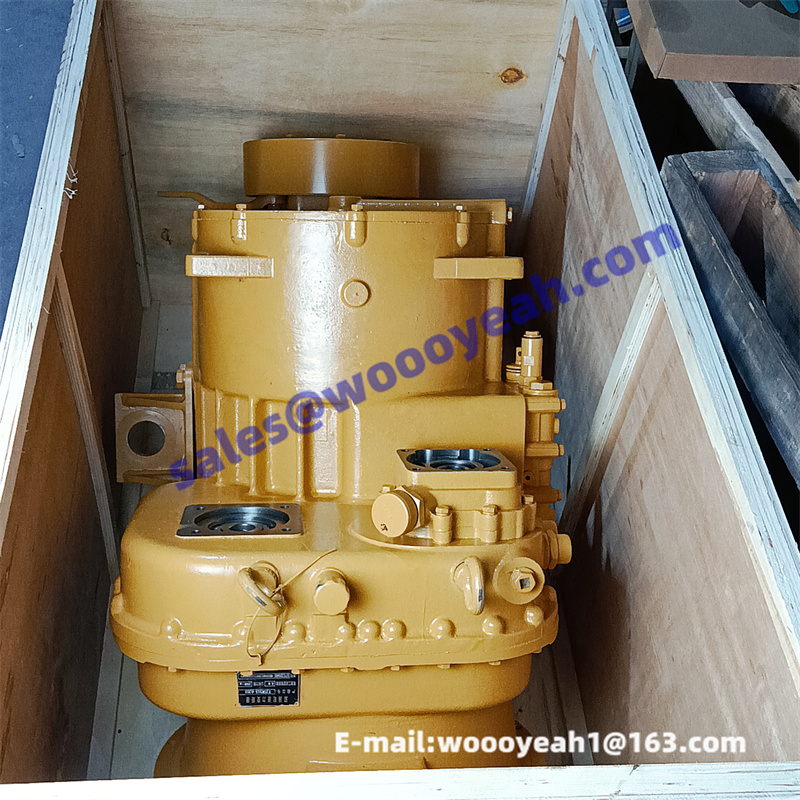

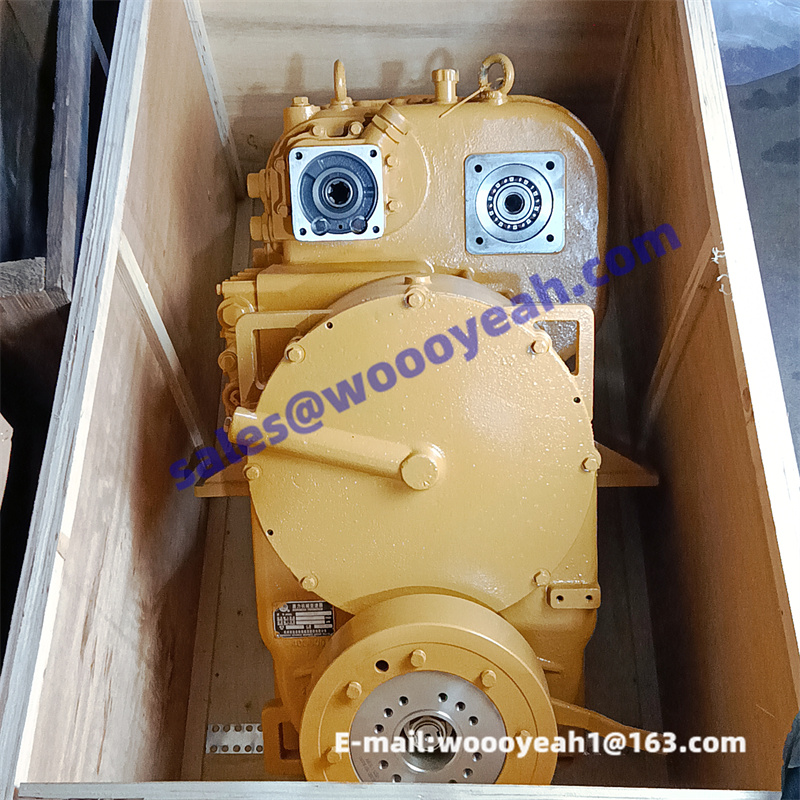

9F560-24A000000A0 transmission assy for Lovol FL936

9D690-01A000000A0     发动机安装    Engine assembling
9D690-02A000000A0     散热器安装    Radiator assembly
9D653-05A000000A0     油门操纵系统        Throttle control system
9D653-06A000000A0     熄火装置        Flameout device
9D690-08A000000A0     燃油箱安装    Fuel tank assembling
9D680-11A000000A0     前车架焊接总成    Front frame weldment assembly
9D861-12A000000A0     铰接总成        Joint assembly
008617753913626 XCMG woooyeah1@163.com
9D690-13A000000A0     后车架焊接总成    Rear frame weldment assembly
9D860-14A000000A0     副车架总成    Auxiliary frame assembly
9D860-15B000000A0     配重         Ballast
008617753913626 XCMG woooyeah1@163.com
9D860-16A000000A0     前车架附件    Front frame accessories
9D690-17A000000A0     后车架附件    Rear frame accessories
9D690-21A000000A0     变矩器安装    Converter assembling
9D650-23A000000A0     变速箱安装    Gearbox assembling
9D680-24A000000A0     变速箱总成    Gearbox assembly
008617753913626 XCMG woooyeah1@163.com
B00508+9D652-24A000000A0       杭齿变速箱总成ZL20AX32  Hangchi gearbox assembly
9D680-25A000000A0     传动轴安装    Transmission shaft assembling
9D550-26D000000A0     前驱动桥安装        Front drive axle assembling
201200+9D650-26D010000A0       雷沃前驱动桥总成        Lovol front drive axle assembling
9D680-27A000000A0     后驱动桥安装        Rear drive axle assembling
201200+9D650-27D010000A0       雷沃后驱动桥总成        Rear drive axle assembling
9D652-29A000000A0     停车与辅助制动系统   Parking and auxiliary brake system
9D680-31A000000A0     变矩器变速箱油路        Oil pipeline of converter gearbox
9D690-32A000000A0     传动油散连接油路        Transmission oil radiator cnnecting pipeline
9D680-33A000000A0     传动系回油油路    Transmission system oil return pipeline
008617753913626 XCMG woooyeah1@163.com
9D650-34A000000B0     车轮总成        Wheel assembly
9D861-35A000000A0     制动供压系统        Brake pressure system
9D690-36A000000A0     制动控制系统        Brake control system
9D860-37A000000A0     驱动桥管路系统    Drive axle pipeline system
9D650-44A000000A0     座椅安装总成        Seat assembly
9G662-45A000000A0     驾驶室安装总成    Cab assembly
008617753913626 XCMG woooyeah1@163.com
9G662-45A020000A0     驾驶室内饰总成    Cab upholstery assembly
9G662-45A030000A0     驾驶室外装总成    Cab exterior mountings assembly
9D690-46A000000A0     地板平台安装总成        Floor platform assembly
9D690-47A000000A0     护罩安装总成        Bonnet assembly
008617753913626 XCMG woooyeah1@163.com
9D690-48A000000A0     泥瓦及走台总成    Mudguard and cover plate assembly
9D680-54A000000A0     转向液压系统        Steering hydraulic system
9D860-55A000000B0     工作油缸系统        Working cylinder system
9D680-56A000000A0     工作油泵系统        Working oil pump system
9D690-57A000000A0     液压散热系统        Hydraulic radiating system
9D680-58A000000A0     液压油箱总成        Hydraulic oil tank
9D680-59A000000A0     液压操纵系统        Hydraulic control system
008617753913626 XCMG woooyeah1@163.com
9D664-63A000000A0     驾驶室线路    Cab wiring
9D690-64A000000A0     后车架线路    Rear frame wiring
9D860-65A000000A0     电瓶线路及安装    Battery wiring and assembling
9F853-69A030000A0      收放机总成    Radio and player assembly
9F853-69A080000A0      电风扇总成    Electric fan assembly
9D860-72A000000B0     连杆机构        Link mechanism
008617753913626 XCMG woooyeah1@163.com
9D861-73X000000A0      液压操纵系统        Hydraulic control system
9D860-76A000000A0     前车架线路    Front frame wiring
9D690-83A000000A0     驾驶室线路    Cab wiring
9D652-84B000000A0     高低挡操纵系统    High-low shift control system
9D651-01C010000A0     柴油机及其附件             Engine and its attachments    1
GBT5785-M20X1.5X130-10.9         六角头螺栓                 Hex bolt   4
008617753913626 XCMG woooyeah1@163.com
GBT97.1-20-300HV-A3L 平垫圈                     Plain washer    4
GBT889.2-M20X1.5-8-A9L     1型非金属嵌件六角锁紧螺母  Type 1 hexagon nut with non-metallic insert       4
9F850-01A020000A0      减震器                     Shock absorber        4
9D651-01A000034A0     压块2                      Briquetting block 2         2
9F850-01A030000A0      减震器                     Shock absorber        4
9F850-01A000001A0      垫片                       Gasket      8
008617753913626 XCMG woooyeah1@163.com
9D651-01A000033A0     压块1                      Briquetting block 1         2
9D690-01A030000A0     进水管                     Water inlet pipe       1
Q67664   B型蜗杆传动式软管环箍     B-Type worm drive hose clamp       4
9D690-01A020000A0     出水管                     Water outlet pipe    1
008617753913626 XCMG woooyeah1@163.com
JBT8870-d20   喉箍                       Hoop        2
9D651-01A000004A0     透气管                     Vent pipe 1
9F560-01D000005A0      调整垫                     Adjusting gasket      1
9D690-02A010000A0     散热器总成    Radiator assembly
GBT16674.1-M8X20-8.8-DC  六角法兰面螺栓    Hex bolt with flange
GBT96.1-8-DC         大垫圈    Big washer
008617753913626 XCMG woooyeah1@163.com
9D690-02A010900A0     风扇护网总成        Fan shield net assembly
9D690-02A010400A0     导风罩总成    Wind guide shield assembly
9D690-02A010500A0     左框架总成    Left frame assembly
GBT16674.1-M10X25-8.8-DC         六角法兰面螺栓    Hex bolt with flange
9D690-02A010300A0     传动油散热器        Transmission oil radiator
GBT6177.1-M10-8-DC    六角法兰面螺母    Hexagon nuts with flange
008617753913626 XCMG woooyeah1@163.com
9D690-02A010100A0     水散热器        Water radiator
9D690-02A010800A0     右框架总成    Right frame assembly
9D690-02C010001A0     减震垫    Shock pad
9D653-02C010027A0     散热器铭牌    Radiator nameplate
9D859-02A010001A0     侧挡风胶板    Side windshield
9D690-02A010005A0     压条3     Press strip 3
9D859-02A010003A0     压条2     Press strip 2
008617753913626 XCMG woooyeah1@163.com
9D859-02A010004A0     下挡风胶板    Lower windshield rubber plate
9D690-02A010002A0     压条         Press strip
9D653-02C010010A0     泄气管    Air leakage pipe
JBT8870-d12   喉箍         Hoop
9F850-02A010100A0      加水口盖        Water filling cover
9F560-02C010300A0      放水开关        Water discharge switch
JBT8870-d16   喉箍         Hoop
008617753913626 XCMG woooyeah1@163.com
9D653-02C010012A0     水箱导流管    Water tank nozzle
GBT16674.1-M8X25-8.8-DC  六角法兰面螺栓    Hex bolt with flange
GBT6177.1-M8-8-DC      六角法兰面螺母    Hexagon nuts with flange
GBT16674.1-M10X20-8.8-DC         六角法兰面螺栓    Hex bolt with flange
GBT16674.1-M14X45-8.8-DC         六角法兰面螺栓    Hex bolt with flange
9F653-05A010000A0      油门踏板总成        Throttle pedal assembly
GBT5783-M8X25-8.8-A2L      六角头螺栓    Hex bolt
008617753913626 XCMG woooyeah1@163.com
GBT93-8-A0P  标准型弹簧垫圈    Normal type single coil spring lock washer
9D851-05A020000B0     油门拉线总成        Throttle pull wire assembly
9D651-06B010000A0     熄火拉线        Flameout pull wire
9D650-06A000001A0     固定接头        Fixing joint
GBT29.1-M5X10-8.8       六角头头部带槽螺栓   Hexagon bolt with slot on head
008617753913626 XCMG woooyeah1@163.com
GBT97.1-5-A0P       平垫圈    Plain washer
GBT91-2X16-A0P    开口销    Cotter pin
9D690-08A010000A0     燃油箱总成    Fuel tank assembly
GB/T16674.1-M16X40-8.8-A3L     六角法兰面螺栓    Hex bolt with flange
9D690-08A020000B0     呼吸系统        Respiratory system
GB/T16674.1-M5X12-8.8-A2L        六角法兰面螺栓    Hex bolt with flange
008617753913626 XCMG woooyeah1@163.com
9D860-08A000002A0     右挡板    Right barrier
GB/T16674.1-M8X20-8.8-A2L        六角法兰面螺栓    Hex bolt with flange
9D860-08A000001A0     左挡板    Left barrier
008617753913626 XCMG woooyeah1@163.com
9D680-11A000000A0     前车架焊接总成              Front frame welding assembly     1
9D860-12A020000A0     上铰接销        Upper joint pin shaft
GBT5783-M12X25-8.8-A3L    六角头螺栓    Hex bolt
9B656-12A000004A0      垫圈         Washer
008617753913626 XCMG woooyeah1@163.com
GBT5782-M12X90-8.8-A3L    六角头螺栓    Hex bolt
GBT93-12-A3L         标准型弹簧垫圈    Normal type single coil spring lock washer
GBT97.1-12-A3L     平垫圈    Plain washer
008617753913626 XCMG woooyeah1@163.com
9D861-12A000003A0     下铰接销        Lower joint shaft pin
