Description

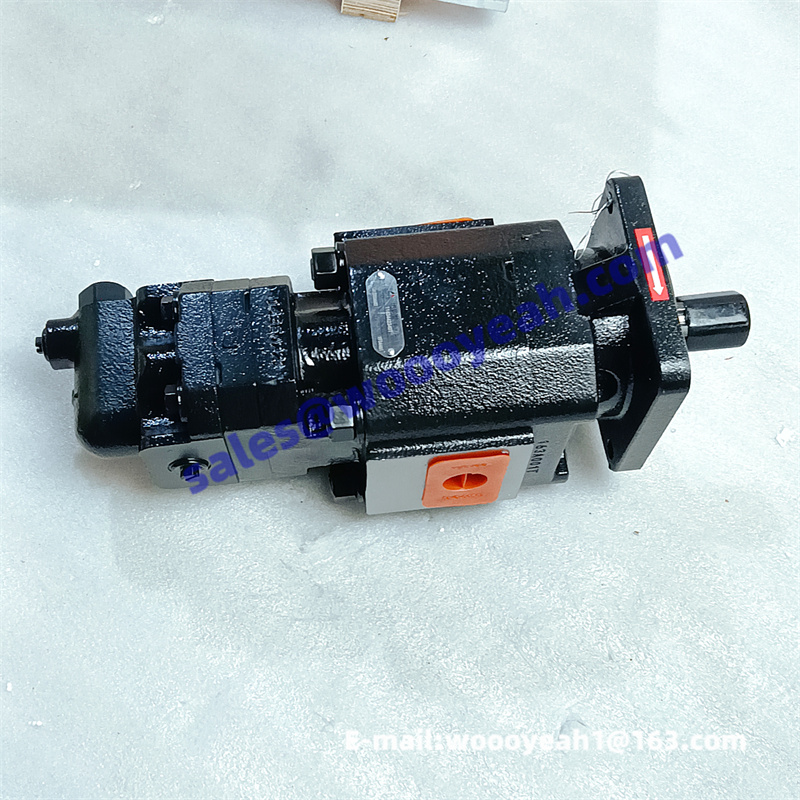

4120006683 1163442340t34 tandem gear pump for SDLG LG936

2941000115.S1a:前车架电气总成-94 Front frame electric system
4130001287 盆型喇叭DL125-100L HORN
4011000152 螺栓GB16674-M6*10EpZn-8.8 BOLT
4130000542 前左组合灯LFLDH4-24V LAMP
4011000461 螺栓GB16674-M8*16EpZn-8.8 BOLT
008617753913626 XCMG woooyeah1@163.com
4041002411 管夹LGB169-A15*10 CLAMP
29410000531 前车架线束 WIRING HARNESS
4130000543 前右组合灯LFRDH4-24V LAMP
4130001286 盆型喇叭DL125-100H HORN
008617753913626 XCMG woooyeah1@163.com
4130000916 灯泡PHILIPS 13814(24V 10W) BULB
4130001128 灯泡24V 75/70W(H4) 8GJ 002 525-251 BULB
4130000618 灯泡PHILIPS 13498(24V 21W) BULB
008617753913626 XCMG woooyeah1@163.com
2942000223.S1a:后车架电气总成-95 Rear frame electric assembly
4130000308 制动气压传感器YG901C3 PRESSURE SENSOR
4190001839 扎丝LG13-ZS4*160 CABLE TIE
4130002496 油量传感器RG2266型-M88 FUEL LEVEL SENSOR
4014000088 螺钉GB818-M5*16EpZn-4.8 SCREW
4015000110 垫圈GB97.1-5EpZn-300HV WASHER
29370021261 接地线P15*350 GROUND CABLE
4011000461 螺栓GB16674-M8*16EpZn-8.8 BOLT
008617753913626 XCMG woooyeah1@163.com
29370025671 固定板 PLATE
4011000153 螺栓GB16674-M6*16EpZn-8.8 BOLT
4041002411 管夹LGB169-A15*10 CLAMP
4190001838 扎丝RTGB-370HD-S CABLE TIE
4130001294 隔膜式压力开关310-LGK1 PRESSURE SWITCH
008617753913626 XCMG woooyeah1@163.com
29370018861 支板 BRACKET
4190001095 扎丝N90666101 CABLE TIE
4130001300 压力开关YK215B1 PRESSURE SWITCH
4130000202 温度传感器WDG1371 TEMPERATURE SENSOR
008617753913626 XCMG woooyeah1@163.com
29420002252 后车架线束 Cable harness
4130001134 后尾灯LRHD-24V TAIL LIGHT
4130000915 灯泡PHILIPS 13499(24V 21W/5W) BULB
4130000618 灯泡PHILIPS 13498(24V 21W) BULB
4130000916 灯泡PHILIPS 13814(24V 10W) BULB
008617753913626 XCMG woooyeah1@163.com
4130001132001 琥珀色灯罩 LAMP SHROUD
4130001132002 红色灯罩 LAMP SHROUD
4130001132003 白色灯罩 LAMP SHROUD
2943000216.S1a:驾驶室电气总成-96 Cab electric system
008617753913626 XCMG woooyeah1@163.com
4130001685 工作灯148*86-H3-24V LAMP
4190001839 扎丝LG13-ZS4*160 CABLE TIE
4130001413 室内灯24-6212-24V LAMP
4014000040 螺钉GB818-M6*20EpZn-4.8 SCREW
4015000207 垫圈GB97.1-6EpZn-300HV WASHER
29430000281 驾驶室线束 WIRING HARNESS
008617753913626 XCMG woooyeah1@163.com
4190000608 电风扇 FAN
4014000198 螺钉GB818-M6*35EpZn-4.8 SCREW
11217633 启动开关 STARTER SWITCH
29330000201 橡胶盖 RUBBER PLUG
008617753913626 XCMG woooyeah1@163.com
29370019382 组合仪表盘SDLG-1 DISPLAY PANEL
4014000088 螺钉GB818-M5*16EpZn-4.8 SCREW
4015000110 垫圈GB97.1-5EpZn-300HV WASHER
4130000290 转向开关JK802A ROCKER SWITCH
29370021071 支架 BRACKET
008617753913626 XCMG woooyeah1@163.com
4011000461 螺栓GB16674-M8*16EpZn-8.8 BOLT
29430002191 仪表台线束 CABLE HARNESS
4014000026 螺钉GB818-M6*16EpZn-4.8 SCREW
4130001892 中央电器控制盒L1-24F17R1400 FUSE AND RELAY UNIT
4130000498 侧边单框架JK931-01CKJ SWITCH PANEL
008617753913626 XCMG woooyeah1@163.com
4130000496 盖板JK931-01GB COVER PLATE
4130000497 中间单框架JK931-01ZKJ SWITCH PANEL
4130000492 警示灯开关JK931-01JSD ROCKER SWITCH
4130000499 喷水开关JK931-01PS ROCKER SWITCH
4130000493 刮雨器开关JK931-01GYQ ROCKER SWITCH
4130001052 静音开关JK931-01JY ROCKER SWITCH
4130000491 后照灯开关JK931-01HZD ROCKER SWITCH
4130000555 前大灯开关JK931-01QDD ROCKER SWITCH
4130000490 前照灯开关JK931-01QZD ROCKER SWITCH
4130000489 背光灯开关JK931-01BGD ROCKER SWITCH
29430000791 手刹过渡线束 WIRES
008617753913626 XCMG woooyeah1@163.com
4130001685:工作灯（3713EE）-97 Work lamp(3713EE)
4130001685 工作灯148*86-H3-24V LAMP
4015000162 垫圈GB97.1-10EpZn-300HV WASHER
4015000025 垫圈GB93-10-65Mn SPRING WASHER
4013000005 螺母GB6170-M10EpZn-10 NUT
4130000620 灯泡PHILIPS 13336 H3 BULB
008617753913626 XCMG woooyeah1@163.com
4130001892:中央电器控制盒(330602)-98 Fuse and relay unit(330602)
4130001873 中央电器控制盒L1-24F17R14011 FUSE AND RELAY UNIT
4014000131 螺钉GB818-M6*16EpZn-8.8 SCREW
4015000207 垫圈GB97.1-6EpZn-300HV WASHER
4013000028 螺母GB6170-M6EpZn-8 NUT
4130001872 支架 BRACKET
008617753913626 XCMG woooyeah1@163.com
4130001873:中央电器控制盒(330602)-99 Fuse and relay unit(330602)
4130001639 旋钮 KNOB
4130001640 控制盒上盖 COVER
4130001324 保险片ATS 5A FUSE
4130001327 保险片ATS 10A FUSE
4130001648 保险片ATS 30A FUSE
4130001330 保险夹 CLAMP
008617753913626 XCMG woooyeah1@163.com
4130001678 CONTROL BOX PEDESTAL CECB-5 Control box
4130001893 PCB板 Plate
4130001647 控制盒底盖 COVER
4130001399 闪光器RTD-SG-B FLASHER UNIT
4130001398 继电器HFV6024Z-TR RELAY
008617753913626 XCMG woooyeah1@163.com
4130000912 蓄电池继电器024-1H2T-80A RELAY
4130001400 护套总成DJ7.14-7.8-21 protecting cover
4130001401 护套总成DJ7014-7.8-11 protecting cover
4130001677 KET护套总成MG610331 Casing
4130001402 KET护套总成MG610350 Casing
4130001649 保险片ATS 15A FUSE
008617753913626 XCMG woooyeah1@163.com
2944000074.S1a:发动机电气总成-100 Engine electric system
4011000461 螺栓GB16674-M8*16EpZn-8.8 BOLT
3214558810 STRIP CLAMP Strip clamp
29440000901 支架 BRACKET
008617753913626 XCMG woooyeah1@163.com
4011000137 螺栓GB16674-M12*20EpZn-8.8 BOLT
4190001832 扎丝RTGB-200ST CABLE TIE
4130000202 温度传感器WDG1371 TEMPERATURE SENSOR
4041002378 管夹LGB169-A10*12.5 CLAMP
4130001296 机油压力开关YK208B1 PRESSURE SWITCH
4190001839 扎丝LG13-ZS4*160 CABLE TIE
008617753913626 XCMG woooyeah1@163.com
2945000008.S1c:后罩电气总成-101 Engine hood electric system
4130001685 工作灯148*86-H3-24V LAMP
29450000222 后罩线束 WIRING HARNESS
4190001839 扎丝LG13-ZS4*160 CABLE TIE
008617753913626 XCMG woooyeah1@163.com
4011000461 螺栓GB16674-M8*16EpZn-8.8 BOLT
4130001290 倒车蜂鸣器FM211C BUZZER
4015000197 垫圈GB96.1-10EpZn-300HV WASHER
