Description

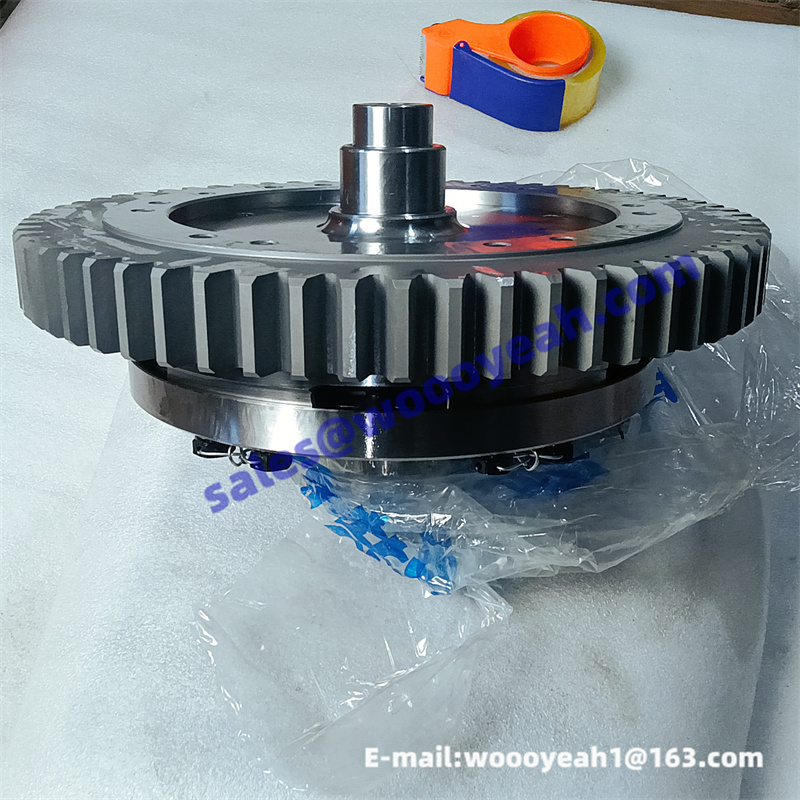

29050016561 gearbox 4th shaft assy for SDLG LG953N
F1400-2914102120.2 转斗缸总成 Cylinder assembly
4120009245 转斗油缸HSGF-200*105*550-1064 Tilt cylinder
4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 SCREW
4015000426 垫圈GB96.1-10flZnyc-300HV-480 WASHER
008617753913626 XCMG woooyeah1@163.com
29140025441 放平护板 Indicator plate
29140025541 接近开关支架部装 Bracket
29140020901 转斗缸大腔钢管 Pipe
4041000774 螺塞LGB135-01422 PLUG
4041000767 O形圈LGB168-11124 O-RING
008617753913626 XCMG woooyeah1@163.com
29140018961 转斗缸小腔胶管 HOSE ASSEMBLY
29140020911 转斗缸大腔胶管 Hose assembly
4030000029 O形圈GB3452.1-37.5*3.55G O-RING
4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 SCREW
4041000144 分体法兰LGB117-312552 FLANGE HALF
29140012931 U形螺栓 U-BOLT TELL:008617753913626
4041001018 底板LGB160-3040 BRACKET
008617753913626 XCMG woooyeah1@163.com
4013000370 螺母GB6170-M10flZnyc-8-480 NUT
29140016451 动臂指示板 INDICATOR PLATE
4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 SCREW
4015000425 垫圈GB96.1-8flZnyc-300HV-480 WASHER
29140019031 转斗联大腔钢管 PIPE
29141013691 转斗联小腔钢管 Pipe
008617753913626 XCMG woooyeah1@163.com
4011001529 螺栓GB16674.1-M12*55flZnyc-8.8-480 Screw
4011001530 螺栓GB16674.1-M12*60flZnyc-8.8-480 Screw
4041000026 分体法兰LGB117-310491 FLANGE HALF
4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 SCREW
4030000026 O形圈GB3452.1-32.5*3.55G O-RING
008617753913626 XCMG woooyeah1@163.com
4041000818 防尘盖LGB134-01049 COVER
4015000433 垫圈GB97.1-10flZnyc-300HV-480 WASHER
4011001354 螺栓GB5782-M10*90flZnyc-8.8-480 SCREW
4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 SCREW
4015000428 垫圈GB97.1-12flZnyc-300HV-480 WASHER
008617753913626 XCMG woooyeah1@163.com
29130025161 U形螺栓 U-bolt TELL:008617753913626
4043016359 孔板LGB343-70*20*5-2*10*45G-Q235B Plate
29130025171 底板 Plate TELL:008617753913626
29030037421 插接管夹D52 Clamp TELL:008617753913626
4041000869 缓冲套LGB123-0740 RUBBER SLEEVE
4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 SCREW
4013000373 螺母GB6170-M8flZnyc-8-480 NUT
29140027281 链条 Chain TELL:008617753913626
F1410-2914002554.S 接近开关支架部装 Bracket
008617753913626 XCMG woooyeah1@163.com
29140025491 支架 Bracket TELL:008617753913626
4011001500 螺栓GB5783-M8*30flZnyc-8.8-480 SCREW
4015000425 垫圈GB96.1-8flZnyc-300HV-480 WASHER
4013000373 螺母GB6170-M8flZnyc-8-480 NUT
29140025451 支架 Bracket TELL:008617753913626
4011001277 螺栓GB16674.1-M8*35flZnyc-8.8-480 SCREW
4015000430 垫圈GB97.1-8flZnyc-300HV-480 WASHER
29140025521 尼龙块 Slide TELL:008617753913626
29140025531 板 Plate TELL:008617753913626
4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 SCREW
4015000427 垫圈GB96.1-12flZnyc-300HV-480 WASHER
F1410-4120009245 转斗油缸(3713CH) Tilt cylinder
008617753913626 XCMG woooyeah1@163.com
4120006001001 缸筒总成24A139180 Cylinder tube
4120006001002 活塞杆总成24A114190 Piston rod
4120009245001 缸盖24C104200 Cover
4120006001004 衬套24S2A5601 Bushing
008617753913626 XCMG woooyeah1@163.com
4120006001005 钢丝挡圈-孔用24C090250 Retaining ring
4120006001006 密封件-缓冲24H010504 Sealing ring
4120006001007 密封件-活塞杆24F210503 Sealing ring
4120009245002 挡圈-U形圈24E01052C Retaining ring
4120006001009 密封件-防尘24D210502 Sealing ring
4120006560009 钢丝挡圈-孔用24C090280 Retaining ring
008617753913626 XCMG woooyeah1@163.com
4120006001010 O形圈24K11900A O-ring
4120008912009 挡圈-O形圈24M12000C O-ring
4120006996003 O形圈 24K319511 O-ring
4120006001013 活塞24C102140 Piston
4120006001014 密封件-活塞24P220002 Sealing ring
4120006001015 O形圈 24K11050A O-ring
4120009245003 挡圈-O形圈24M11100C O-ring
4120008912007 支承环24G220001 Sealing ring
4120006001018 活塞背母24C103080 Nut
008617753913626 XCMG woooyeah1@163.com
4120006560007 螺钉-内六角凹端紧定24T910161 SCREW
4120006560006 钢球24U006501 BALL
4120006001019 轴套24C116140 Bushing
4120006001020 销边防尘24R308030 Sealing ring
4120007383004 螺钉-内六角圆柱头24TN22805 Screw
4120009245004 密封件包24A105340S Sealing kit
H1500-2915020205.2 连杆机构 Linkage structure
29150202062 动臂LL2845A Lifting arm
29150014371 摇臂 ROCKER ARM TELL:008617753913626
29151002001 连杆B626*100*113-46*124 Connecting rod
H1600-2916001014.3 工作装置附件 Accessories
008617753913626 XCMG woooyeah1@163.com
4030000065 油杯JB7940.1-M10*1 LUBRICATING NIPPLE
4043000173 销轴LGB301-80*140*260-40Cr WELD PIN
4043002967 销轴LGB301-85*N*265-1N00Y Weld pin
4043004230 销轴LGB301-85*N*240-1N00Y Weld pin
4043001422 销轴LGB301-110*212*405-1300Y WELD PIN
4043004777 销轴LGB301-80*140*260-1200G Weld pin
4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 SCREW
4040000051 垫圈LGB001-16flZnyc-480 WASHER
4043000557 销轴LGB301-80*130*240-40Cr PIN
008617753913626 XCMG woooyeah1@163.com
4043000059 O形圈LGB308-128*12 O-RING
4043000033 垫片LGB303-80*130*1 SHIM
4043000034 垫片LGB303-80*130*2 SHIM
4043000055 防尘圈LGB307-80 SEALING RING
4043000026 轴套LGB302-80*90A2 BUSHING
4043000056 防尘圈LGB307-85 SEALING RING
29160201311 复合轴套85*95B2 Bushing
4043000503 轴套LGB302-80*98C2 BUSHING
4043000043 垫片LGB303-110*180*1 SHIM
008617753913626 XCMG woooyeah1@163.com
4043000058 防尘圈LGB307-110 SEALING RING
4043000467 轴套LGB302-110*80C1 BUSHING
4043000519 垫片LGB303-80*150*1 SHIM
4043003343 轴套LGB302-95*100C2 Bushing
4043000057 防尘圈LGB307-95 SEALING RING
