Description

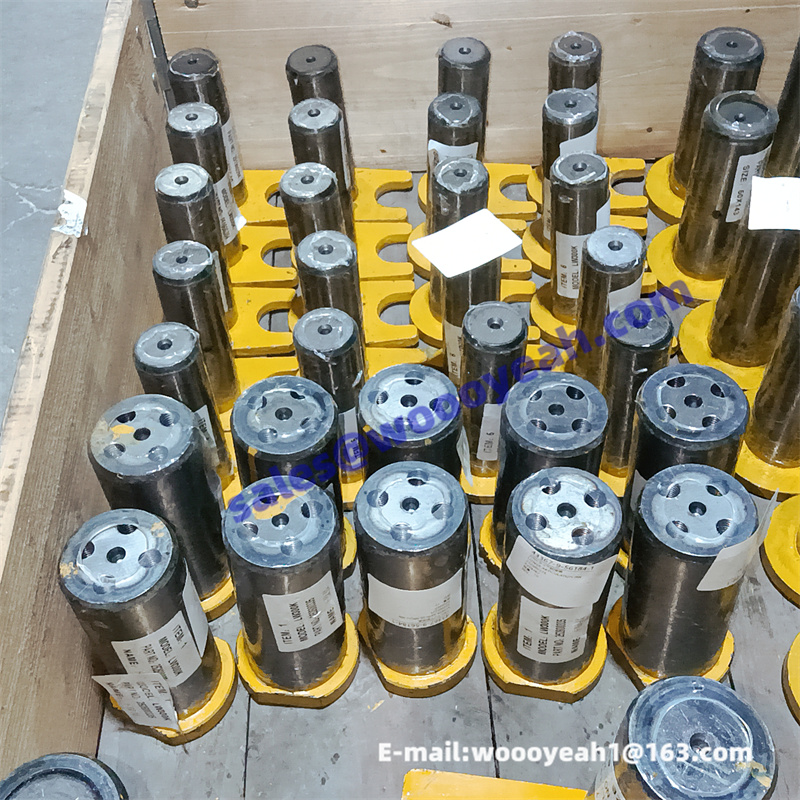

252600335 9358267 lower articulation pin for XCMG LW300KV
2912004320.S1A:回油块部装总成-48 Block
4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 SCREW
4041000011 分体法兰LGB117-314650 FLANGE HALF
29120037521 回油节流盘 Block TELL:008617753913626
29120034601 回油块总成 Block TELL:008617753913626
2912004321.S:油路块部装总成-49 Block TELL:008617753913626
29120034901 油路块总成 Block TELL:008617753913626
008617753913626 XCMG woooyeah1@163.com
4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 SCREW
4015000433 垫圈GB97.1-10flZnyc-300HV-480 WASHER
4041000011 分体法兰LGB117-314650 FLANGE HALF
4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 SCREW
4041000774 螺塞LGB135-01422 PLUG TELL:008617753913626
4041000767 O形圈LGB168-11124 O-RING
4041000026 分体法兰LGB117-310491 FLANGE HALF
4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 SCREW
4041000056 分体法兰LGB117-312550 FLANGE HALF
008617753913626 XCMG woooyeah1@163.com
2912004322.S:固定支架部装总成-50 Bracket TELL:008617753913626
29120019981 橡胶块支架 BRACKET TELL:008617753913626
4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 SCREW
4015000426 垫圈GB96.1-10flZnyc-300HV-480 WASHER
4011001354 螺栓GB5782-M10*90flZnyc-8.8-480 SCREW
4013000370 螺母GB6170-M10flZnyc-8-480 NUT
4041002626 管夹LGB172-A25*28 Hose clamp
29120019531 压板 PLATE TELL:008617753913626
008617753913626 XCMG woooyeah1@163.com
2912004767.S:多路阀KM300-II-21部装总成-51 Hydraulic control
4120006566 多路阀KM300-II-21 Control valve
4041003467 直接头LGB120-01414*35 Nipple
4041000767 O形圈LGB168-11124 O-RING
4190000204 三通接头ET08LOMDA3C THREE-WAY NIPPLE
4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 SCREW
4041000056 分体法兰LGB117-312550 FLANGE HALF
4041000774 螺塞LGB135-01422 PLUG
008617753913626 XCMG woooyeah1@163.com
4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 SCREW
4041000011 分体法兰LGB117-314650 FLANGE HALF
29120020701 多路阀进油钢管 PIPE
4030000029 O形圈GB3452.1-37.5*3.55G O-RING
4041000878 TELL:008617753913626
4011001281 螺栓GB5782-M12*55flZnyc-8.8-480 SCREW
4011001520 螺栓GB5782-M12*65flZnyc-8.8-480 Screw
4015000428 垫圈GB97.1-12flZnyc-300HV-480 WASHER
29120019601 管夹 CLAMP TELL:008617753913626
008617753913626 XCMG woooyeah1@163.com
4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 SCREW
29120019611 固定板 PLATE TELL:008617753913626
29120044371 多路阀固定板 Plate TELL:008617753913626
29120033221 多路阀回油钢管 Pipe TELL:008617753913626
4011001585 螺栓GB5782-M10*80flZnyc-10.9-480 Bolt
4015000433 垫圈GB97.1-10flZnyc-300HV-480 WASHER
4013000370 螺母GB6170-M10flZnyc-8-480 NUT
4011001355 螺栓GB5782-M12*70flZnyc-8.8-480 SCREW
29120019571 多路阀支架 BRACKET
4041001047 组合接头LGB143-01406 NIPPLE
4043005719 孔板LGB343-90*20*4-2*10*68R3G Plate
008617753913626 XCMG woooyeah1@163.com
29120044421 管夹Φ10 Clamp TELL:008617753913626
26150002241 垫块 Block TELL:008617753913626
4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 SCREW
4041003469 软管LGB125-003020 Hose assembly
4041003468 直接头LGB120-01614*35 Nipple
4041001023 组合接头LGB143-01608 NIPPLE
29120044381 过渡钢管A Pipe
4041003235 O形圈LGB168-10615 O-ring
29120046451 过渡钢管B Pipe TELL:008617753913626
4011001468 螺栓GB16674.1-M14*35flZnyc-8.8-480 Bolt
4120006566:多路阀(370142)-52 Control valve(370142)
008617753913626 XCMG woooyeah1@163.com
4120006566001 端盖2022000018 End cover
4120006566002 过载阀2022000035 Valve
4120006566003 阀体2022000062 Valve body
4120006566004 阀座2022000032 Valve seat
4120006566005 阀体2022000022 Valve body
4120006566006 卸荷阀总成2022000047 Valve
4120006566007 阀座2022000019 Valve seat
4120006566008 动臂联端盖2022000003 End cover
4120006566009 动臂联阀杆2022000015 Valve rod
4120006566010 转斗联阀杆2022000016 Valve rod
4120006566011 隔套2022000013 Spacer sleeve
4120006566012 转斗联端盖2022000007 End cover
008617753913626 XCMG woooyeah1@163.com
4120006566013 活塞2022000004 Piston
4120006566014 弹簧2022000005 Spring
4120006566015 盖2022000006 End cover
4120006566016 阀块2022000052 Valve block
4120006566017 挡圈2022000051 Retaining ring
4013000260 P-螺母GB6173-M24*2-05 Nut gb6173-m24*2-05
008617753913626 XCMG woooyeah1@163.com
4120006566018 过载阀2022000036 Valve
4120006566019 过载阀2022000049 Valve
