Description

1001010-B57-AS10 前悬置支架总成 Front suspension assy
Q150B1030 六角头螺栓 Hexagon-headed bolt
Q40310 弹簧垫圈 Spring washer
1002015CB43-0000 气缸体总成 Cylinder block assy
1002011-B01-0000 气缸盖定位套 Cylinder head locating sleeve
1003048-B01-0000 垫圈—气缸盖螺栓 Washer-cylinder head bolt
1003047’B01-0000 气缸盖短螺栓 Shoabolt-cylinder head
1003046-B01-0000 气缸盖长螺栓 Cylinder liner
1002016-B43-0000 气缸套 Cylinder liner
1002017-B41-0000 水封圈 Water seal ring
1002014FB43-0000 气缸体 Cylinder bolck

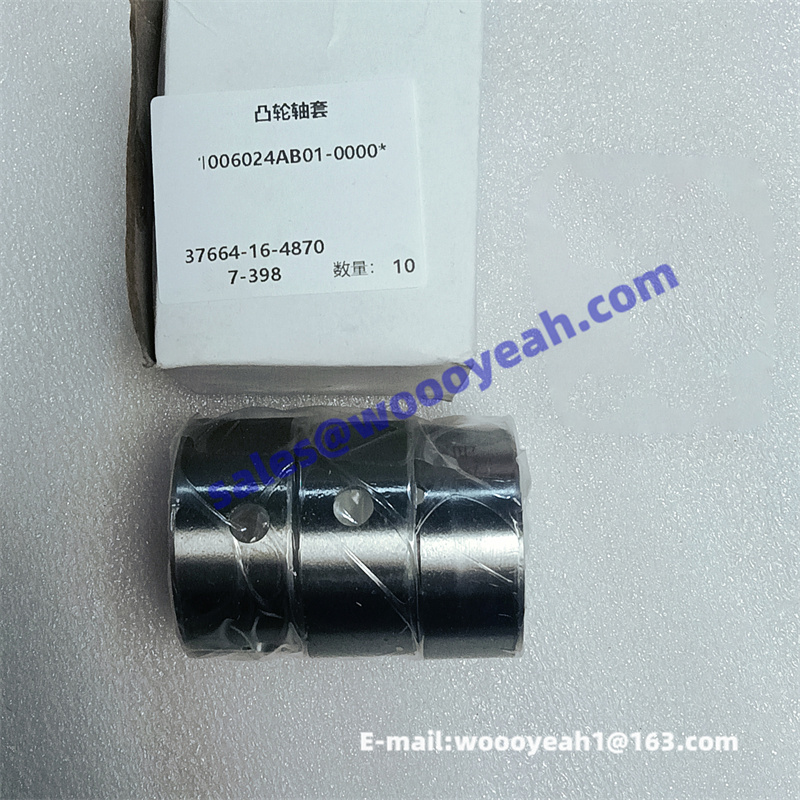

1006024AB01-0000 凸轮轴前衬套 Front bush of camshaft
008617753913626 SDLG woooyeah1@163.com
Q72155 塞片 Plate
1005068AB01-0000/J 后油封座垫片 Washer-rear oil seal seat
Q5220816 圆柱销 Straigh tpin
1005067AB43-0000 后油封座 Rear oil seal seat
GB 13871 FB90X115 后油封 FB90X115 Rear oil seal
Q40108 平垫圈 Washer
Q40408 轻型弹簧垫圈 Spring washer,light type
Q150B0825 六角头螺栓 Hexagon-headed bolt
1002068-B43-0000 飞轮壳密封圈 Sealing washer-fly wheel
Q40010 小垫圈 Small washer
Q40410 轻型弹簧垫圈 Spring washer,linght type
Q150B1035 六角头螺栓 Hexagon-headed bolt
1002063-B01-0000 观察孔盖垫片 Observation hole’scover gasket
1002062AB01-0000 观察孔盖 Observation hole’scover
1002234-B01-0000 垫片 Gasket
Q40106 平垫圈 Washer
Q150B0612 六角头螺栓 Hexagon-headed bolt
1002061AB59-AS10 齿轮室罩盖-飞轮壳(补充图) Flywheel casing
1002061-B5A-YFD20W 齿轮室罩盖-飞轮壳(补充图) Flywheel casing
1002061-B59-YFD20 齿轮室罩盖-飞轮壳(补充图) Flywheel casing
1002061-B5A-HMS20W 齿轮室罩盖-飞轮壳(补充图) Flywheel casing
008617753913626 SDLG woooyeah1@163.com
Q1201235 双头螺栓 Stud
Q340B12 I 型六角螺母 Hexagon nut,style I
Q40112 平垫圈 Washer
Q40312 弹簧垫圈 Spring washer
Q5221022 圆柱销 Straight pi
1005144AB01-0000 主轴承盖螺栓 Main bearing bolt
1005146AB01-0000 主轴承盖螺栓垫圈 Washer-main bearing cap
1005143-B01-0000 第五主轴承盖 5th main bearing cap
1005141-B01-0000 主轴承盖 Main bearing cap
1002231-B01-0000 碗形塞片 Bowl-shaped plug plate
1002123AA01-0000 螺塞 plug
1002232AB03-0000 堵塞 plug
1002078-B01-0000 齿轮室定位套 Gear casing locating sleeve
1006028AB01-0000 凸轮轴后衬套 Rear bush of camshft
1006025AB01-0000 凸轮轴中间衬套 Middle bush of camshft
1002064-B01-0000 飞轮壳垫片 Flywheel casing gasket
1003093-B01-0000 碗形塞片 Bowl-shaped plug plate
Q617BlO 六角头螺塞 Hexagon-headed bolt
Q72310 密封垫圈 Sealing Wacher
008617753913626 SDLG woooyeah1@163.com
Q61902 内六角锥形螺塞 Hexagon-headed taper plug
1002101-B03-0000 放水阀接座 Water drain valve joint chair
1002020-B03-0000 调压阀总成 Regulating valve assy
1002018-B03-0000 调压阀垫片 Regulating valve gasket
1002620-A42-0000 喷嘴管接螺栓总成 Nozzle tube bolt assy
1002601-B03—0000 冷却喷嘴垫片 Cooling jet gasket
100610-B03-0000 喷嘴体总成 Nozzle body assy
Q5220308 圆柱销 Straight pin
3810020-B45-HG10 油压报警传感器 Oil pressure screw plug
Q618B02 六角头锥形螺塞 Hexagon head -Tapered plugs
1002121-155-SJ10 转速传感器 Heagon-headed plug
1005050AB01-0000 前油封 Front oil seal
1002073BB01-0000 齿轮室盖 Gear casing cover
1002074-B01-0000/J 齿轮室盖垫片 Gasket-gear casing cover
1002071CB03-0000 齿轮室 (补充图) Gear casing
1002078-B01-0000 齿轮室定位套 Gear casing locating sleeve
1002072-B03-0000 齿轮室垫片 Gasket-gear casing
Q1200845 双头螺栓 Stud
Q40008 小垫圈 Washer
Q40408 轻型弹簧垫圈 Spring washer
Q340B08 I 型六角螺母 Hexagon nut,style I
Q150B0885 六角头螺栓 Hexagon-headed bolt
1002076-B59-HMS20W 提前器盖 Advance decice cover
008617753913626 SDLG woooyeah1@163.com
1002077-B01-0000/J 提前器盖垫片 Gasket advance device cover
Q150B0850 六角头螺栓 Hexagon-headed bolt
Q150B0880 六角头螺栓 Hexagon-headed bolt
Q150B0845 六角头螺栓 Hexagon-headed bolt
Q150B0830 六角头螺栓 Hexagon-headed bolt
Q150B0890 六角头螺栓 Hexagon-headed bolt
Q150B0825 六角头螺栓 Hexagon-headed bolt
1002079-B59-AS10 指针 Pointer
1003033-B01-0000 加机油口盖 Oil filler cover
GB3452.1-92 O 型圈 23.6×3.55 Oil seal ring
1003010CB03-0000 气缸盖总成 Cylinder vhead vassy
Q40408F9 轻型弹簧垫圈 Spring washer,light type
Q150B0820 六角头螺栓 Hexagon-header bolt
1003058-B46-WZ1A 前吊耳 Lifting eye plate
1007032-B01-0000 气门导管 Valve guide pipe
1003040EB71-JB10 气缸盖罩供货总成 Cylinder head cover assy
GB 3452.1-92 0 型圈 23.6×3.55 O-Ring 23.6×3.55
1003033-B01-0000 加机油口盖 Oil filler cover
1003038AB71-JB10 铭牌 Engine name plate
1003038AB11-AS10 铭牌 Engine name plate
1003116-B71-JB10 通气胶管 Ventilating pipe
1003032AB01-0000 垫密条—气缸盖罩 Rubber sealing gasket-cylinder head cover
Q341B08 I 型六角头螺母-细牙 Hexagon nut,style I
1003006-B03-0000 喷油器螺柱 Stud
008617753913626 SDLG woooyeah1@163.com
1003022EB43-0000S 气缸垫总成 Cylinder head gasket assy
1007081AB03-0000 排气门座 Exhaust valve seat
1007082-B03-0000 进气门座 Intake valve seat
Q150B0825 六角头螺栓 Hexagon-header bolt
1003306BA01-0000 堵套 Plug
1003093-B01-0000 碗形塞片 Bowl-shapedplugplate
1003056-B01-0000 喷油器铜套 Copper sheathing of fuel injector
1003095-B01-0000 铜套压紧圈 Copper sheathing compacting ring
Q72255 碗形塞片 Bowl-shaped plug plate
1007035AB01-0000 气门油封 Airgate-oil seal
1003096-B01-0000 机油联接管 Lubricating oil coupling pipe
1003092-B01-0000 碗形塞片 Bowl-shaped plug plate
Q541026 标牌铆钉 Rating plate clinch bolt
Q676B25 夹箍 Clamp
Q2140610 十字槽盘头螺钉 Screw
1003036-B03-0000 钢丝绒 I Steel wool filter I
1003044AB03-0000 多孔挡板 Perforated plate
1003045BB03-0000 挡油板 Cover pre-separator
1003037-B03-0000 钢丝绒 II Steel wool filter II
1008039-153-0010 回水弯管管夹 Pipe clamp
GB3452．1-92 O 型圈 23.6×3.55 O-Ring 23.6×3.55
1003057CB45-BFZ10 后吊耳 Lifting eye plate
Q40306 弹簧垫圈 Spring wadher
008617753913626 SDLG woooyeah1@163.com
1004100AB43-0000 连杆总成 Connecting rod assy
1004101AB43-0000 连杆体 Connecting rod
1004104AB43-0000 连杆盖 Connecting rod big eng cap
1004102CB43-0000 连杆螺栓 Connecting rod bolt
1004103AB03-0000 连杆小头衬套 Connecting rod small eng bush
1004027-B01-0000 连杆螺母 Connecting rod nut
