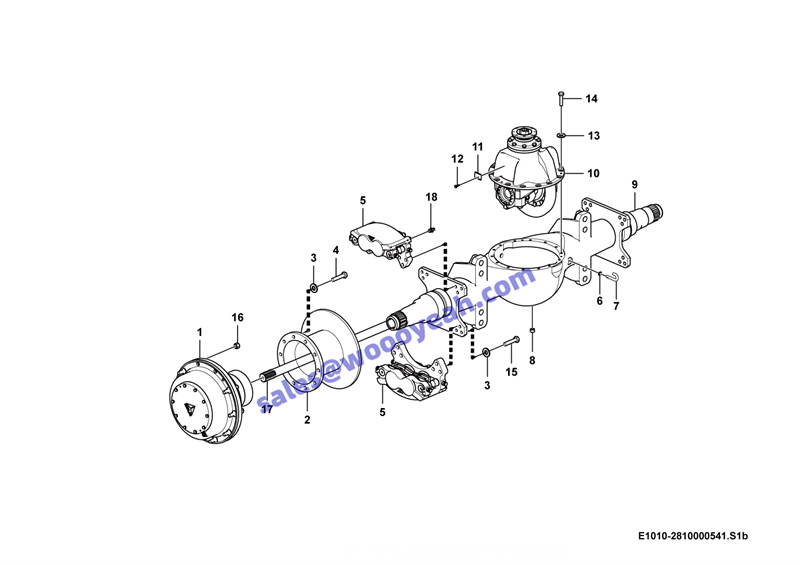

E1010-2810000541.S1b:驱动桥总成-29 axle system

1 轮边减速器 Hub reduction 28100005361 N 2
2 制动盘 BRAKE DISC 28180000041 Y 2
3 垫圈GB93-20-65Mn SPRING WASHER 4015000030 GB93-20-65Mn Y 44
4 螺栓GB5786-M201.550EpZn-8.8 BOLT 4011000130 GB5786-M201.550EpZn-8.8 Y 20
5 钳盘式制动器JC-A-S.M DISC BRAKE 4120000898 Y 4
6 螺母GB6173-M101EpZn-05 NUT 4013000078 GB6173-M101EpZn-05 Y 1
7 透气管 TUBE 29070000051 ZL50.5-4 Y 1
8 磁性螺塞 PLUG 29070012481 Y 2
9 桥壳总成 AXLE CASING 28100000051 Y 1
10 后主传动总成 FINAL DRIVE 28100005351 Y 1
11 驱动桥标牌 NAME PLATE 28100005401 N 1
12 铆钉GB827-35-BL2 RIVET 4019000012 GB827-35-BL2 Y 4
13 垫圈GB93-16-65Mn SPRING WASHER 4015000098 GB93-16-65Mn Y 14
14 螺栓GB5786-M161.540EpZn-8.8 BOLT 4011000126 GB5786-M161.540EpZn-8.8 Y 14
15 螺栓GB5783-M2065EpZn-10.9 BOLT 4011000565 GB5783-M2065EpZn-10.9 Y 24
16 轮辋螺母 NUT 29070000081 ZL50.5-5 Y 20
17 半轴 SHAFT HALF 28100005371 Y 2
18 放气嘴 NIPPLE 4120001740 Y 4
