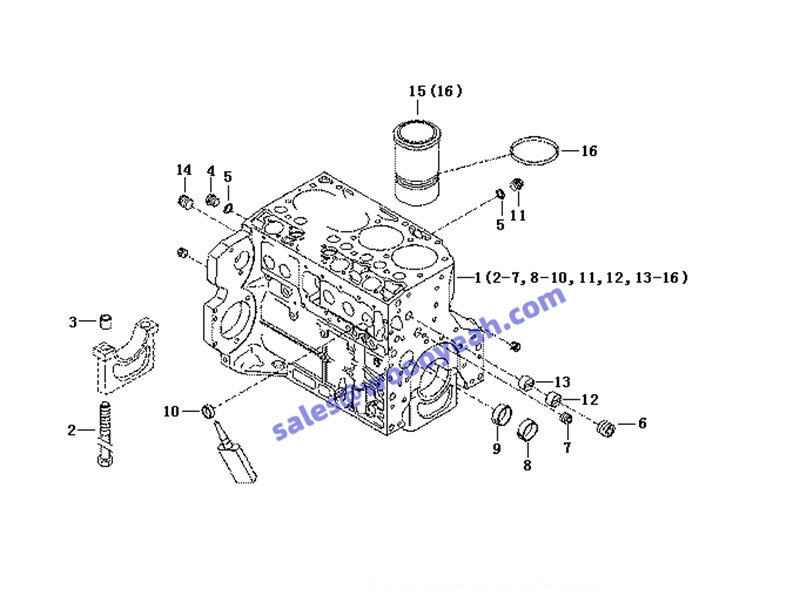

A10-4110001009:气缸体总成-6 cylinder block assembly

1 气缸体及气缸套总成1002030-52D/P CYLINDER BLOCK 4110000970040 1002030-52D N 1
-4110000970243
2 主轴承螺栓1002023-52D SCREW 4110000970038 1002023-52D Y 14
3 主轴承盖定位套1002024-52D PIN 4110000970039 1002024-52D Y 14
4 螺塞 DIN 908-M14X1,5-ST-ZNPHRF 1002626-52D PLUG 4110000509020 Y 2
5 密封垫 DIN 7603-A14X20-CU 1104617-52D SEALING RING 4110000509019 Y 4
6 螺塞H 2812-906-M30X1.5-ST-A4C-PRE80 D01180890 PLUG 4110000727075 D01180890 Y 1
7 螺塞M22x1.5 D04292706 PLUG 4110000727132 D04292706 N 1
-4110000988086
8 凸轮轴衬套1006024A52D BEARING BUSHING 4110000970061 1006024A52D Y 6
9 凸轮轴衬套(飞轮端）1006028A52D BEARING BUSHING 4110000970062 1006028A52D Y 1
10 碗形塞片 H2860-A45-ST-FE/ZNPHR 1002623-52D PLUG 4110000509017 Y 10
11 螺塞 DIN 7604-AM14X1,5-ST-A4C 1002622-52D PLUG 4110000509018 Y 2
12 导套-二.三缸1110076-52D GUIDE SLEEVE 4110000727027 1110076-52D Y 1
13 导套-五.六缸1110078-52D GUIDE SLEEVE 4110000727028 1110078-52D Y 1
14 螺塞1002627-52D PLUG 4110000727113 D04226536 N 1
15 气缸套 CYLINDER LINER 4110001009060 1002016E52D N 6
-4110000970001
16 O型橡胶密封圈-气缸套H 2927-112X3.0-FPM-2 D01181178 O-RING 4110000970024 D01181178 Y 12
18 垫圈GB97.1-5EpZn-300HV WASHER 4015000110 GB97.1-5EpZn-300HV Y 2
