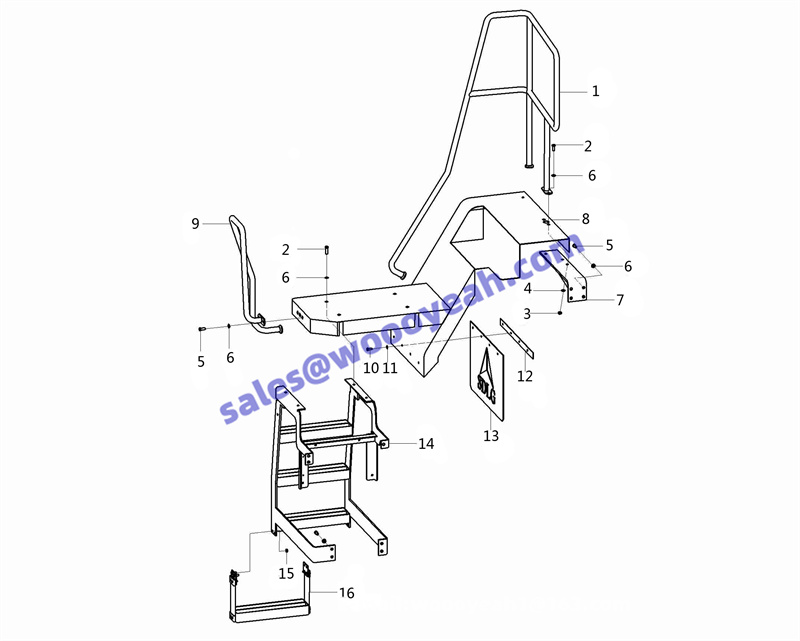

M1-2934002585:右台架总成-74 Platform assembiy

1 右护栏 BRACKET 29340020951 Y 1
2 螺栓GB5783-M1235EpZn-8.8 BOLT 4011000090 GB5783-M1235EpZn-8.8 Y 7
3 螺母GB6170-M12EpZn-8 NUT 4013000011 GB6170-M12EpZn-8 Y 7
4 垫圈GB97.1-12EpZn-300HV WASHER 4015000168 Y 7
5 螺栓GB5783-M1225EpZn-8.8 BOLT 4011000197 GB5783-M1225EpZn-8.8 Y 15
6 垫圈GB96.1-12EpZn-300HV WASHER 4015000186 GB96.1-12EpZn-300HV Y 22
7 右支架 BRACKET 29340019581 Y 1
8 右台架 PLATFORM 29340020981 Y 1
9 右前扶手 HAND RAIL 29340021311 Y 1
10 螺栓GB5783-M1025EpZn-8.8 BOLT 4011000082 GB5783-M1025EpZn-8.8 Y 8
11 垫圈GB96.1-10EpZn-300HV WASHER 4015000197 GB96.1-10EpZn-300HV Y 8
12 压板 PLATE 29340021421 Y 1
13 橡胶板 MUDFLAP 29340021351 Y 1
14 右梯 STEP 29340025861 Y 1
15 螺母GB6170-M10EpZn-8 NUT 4013000007 GB6170-M10EpZn-8 Y 4
16 软梯 FOOT STEP 29340021151 Y 1
